Model: ASEL7D Series
Size: 7mm Width
Height: -

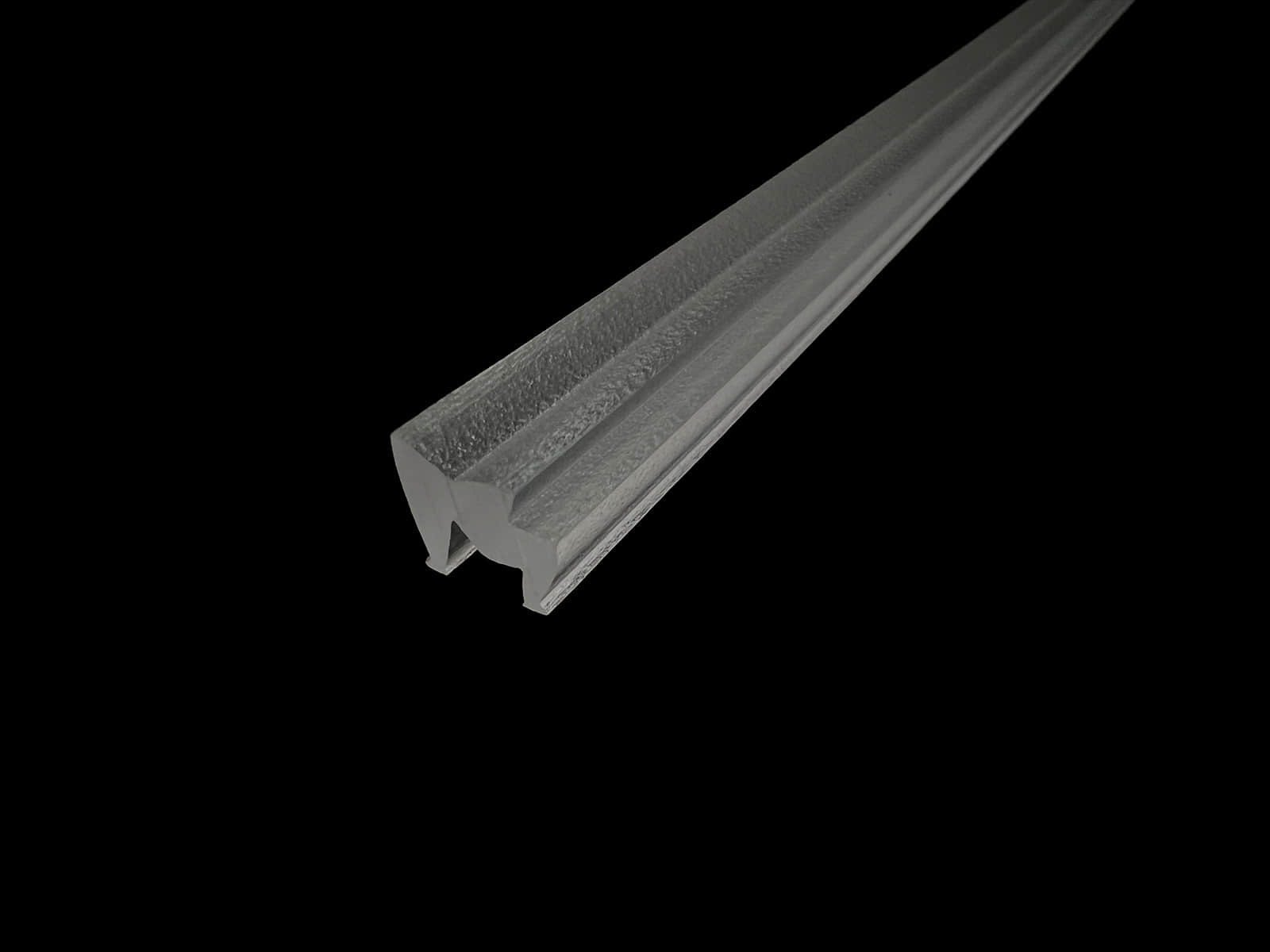

Angle: ~40x90°,~50x95°,~60x100°,~175x100°,Asy15°,DA40°
Material: PMMA
Transmittance: >90%
LED Type: 2835/3030/3535LED
Lighting Applications: Linear Lighting, Office lighting
1. The ASEL7D extruded linear lens ensures continuous lighting without gaps. We cut to your exact length with angles ranging from 40x90° to 175x100°. This series adapts to various profile dimensions or supports custom optical design.
2. These extruded linear optical lenses are perfect for warehouse aisles or retail shelves. Available in varying widths and heights to match your specific LED board.

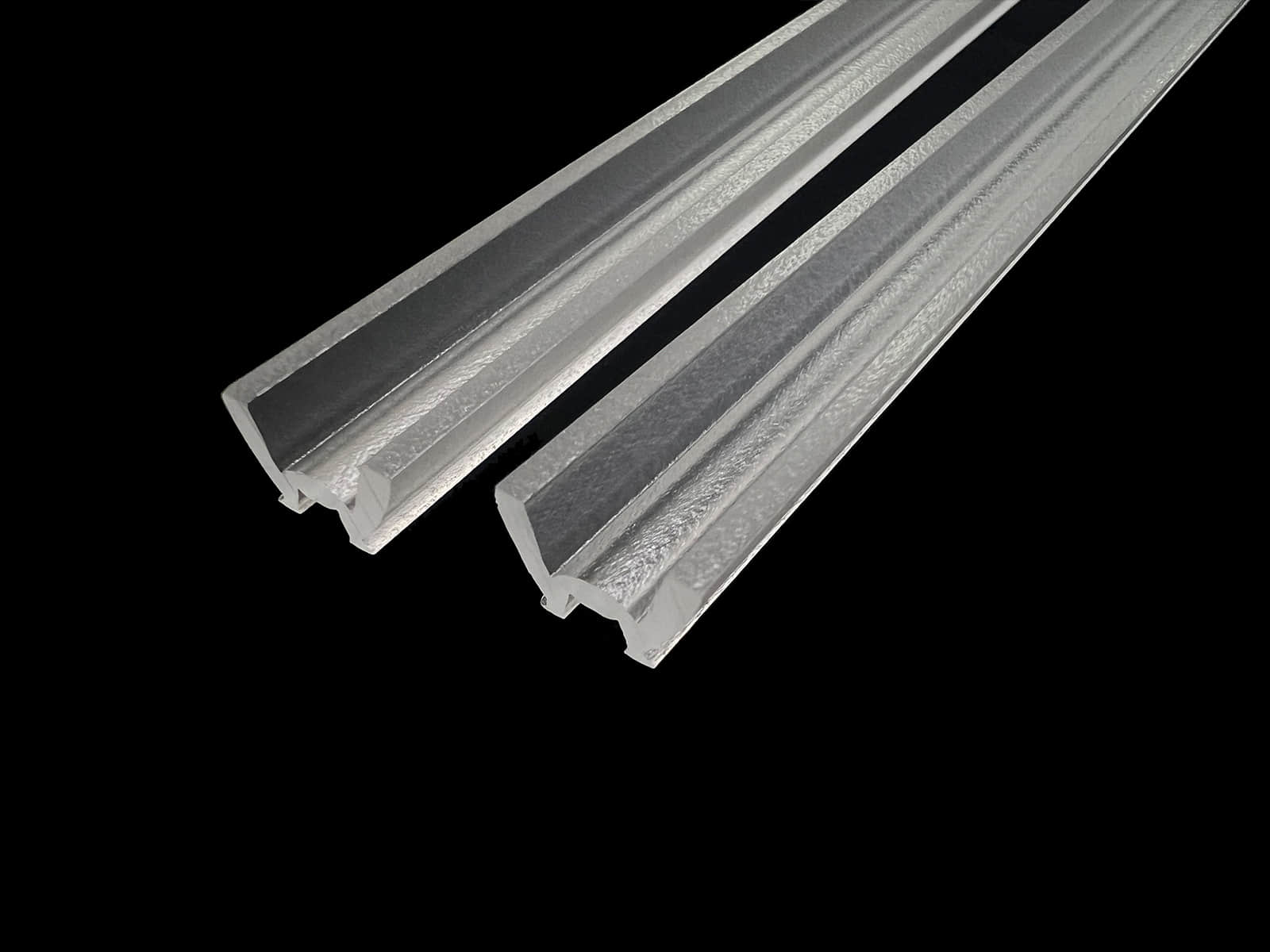

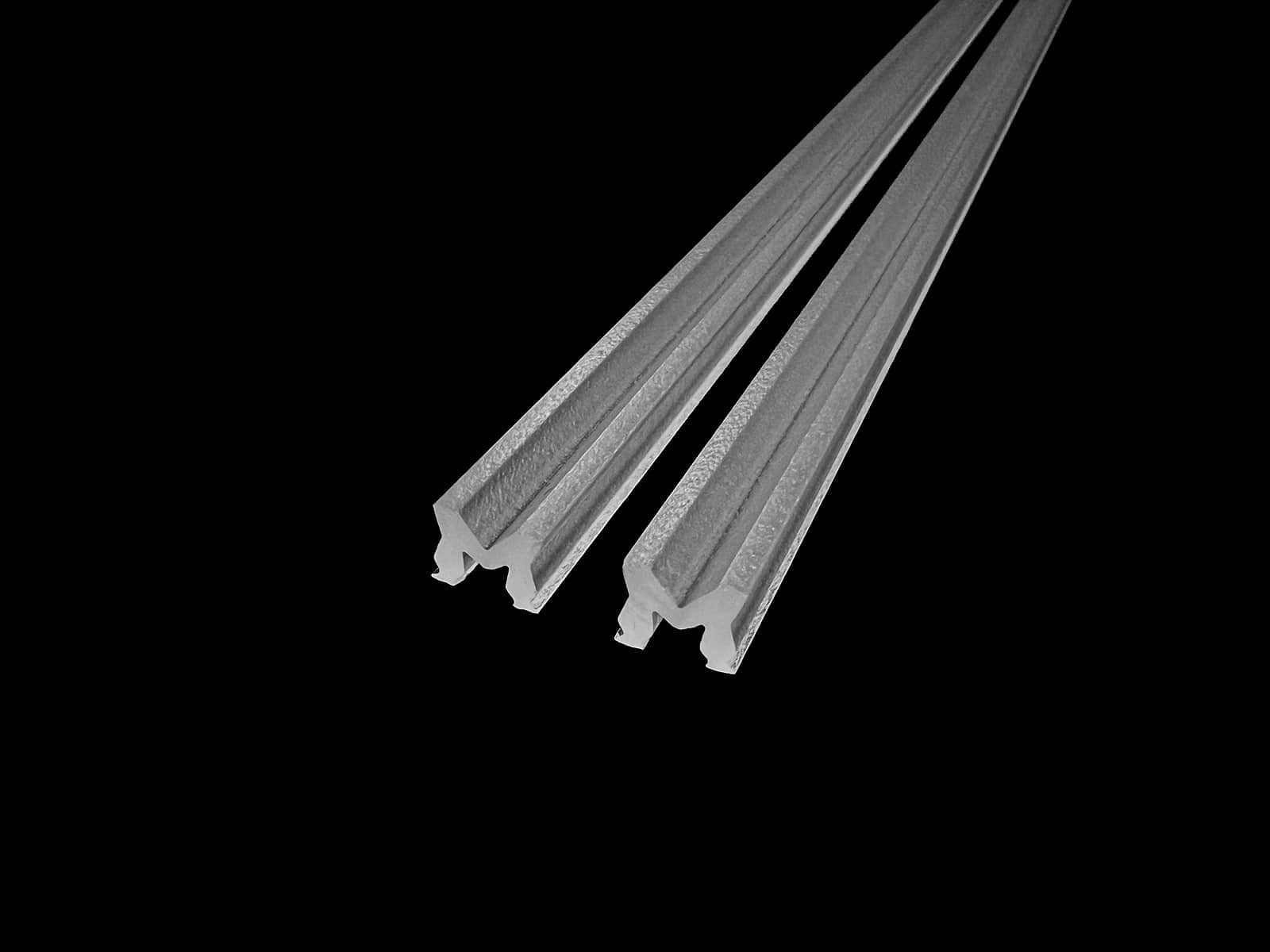

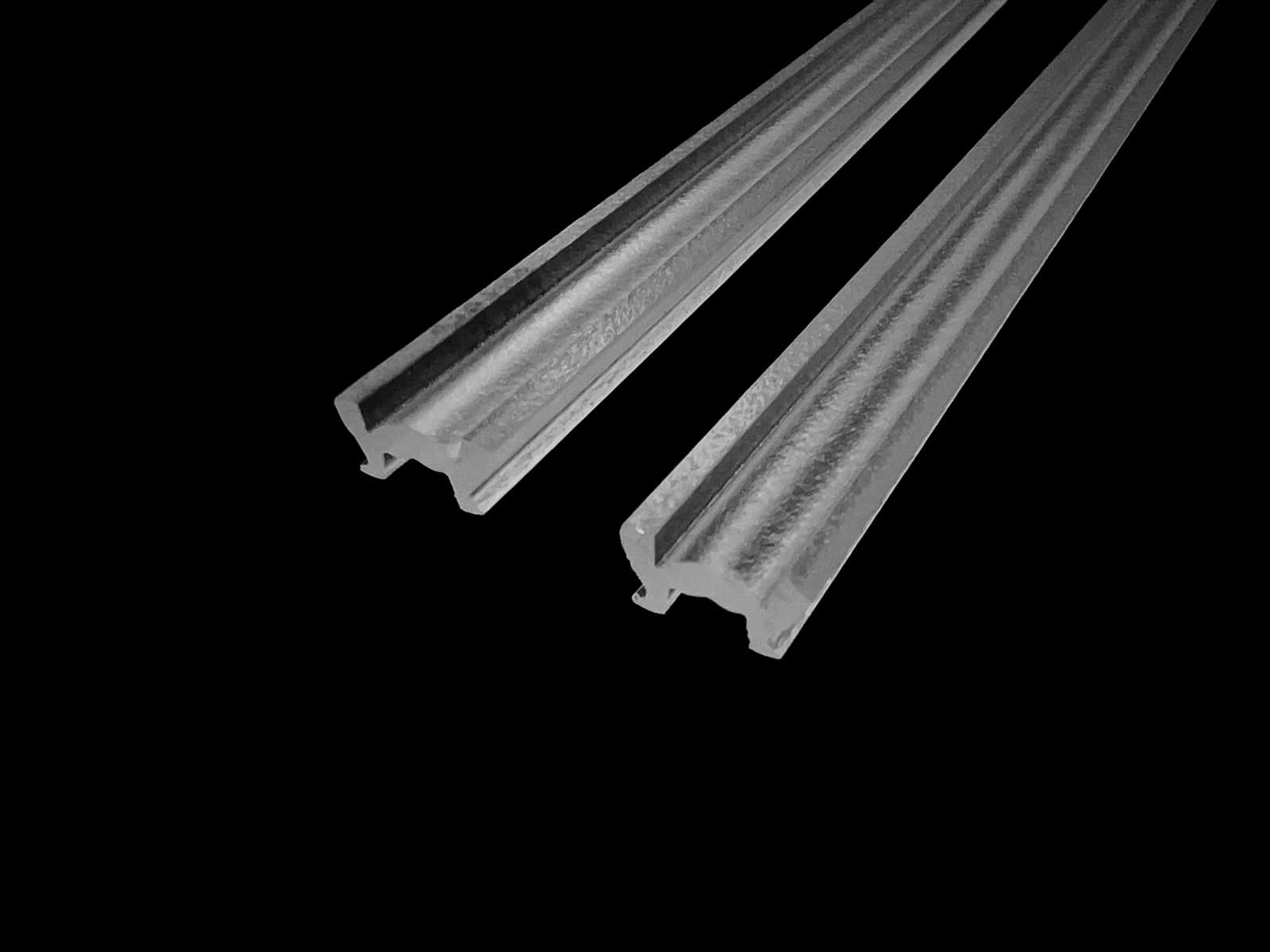

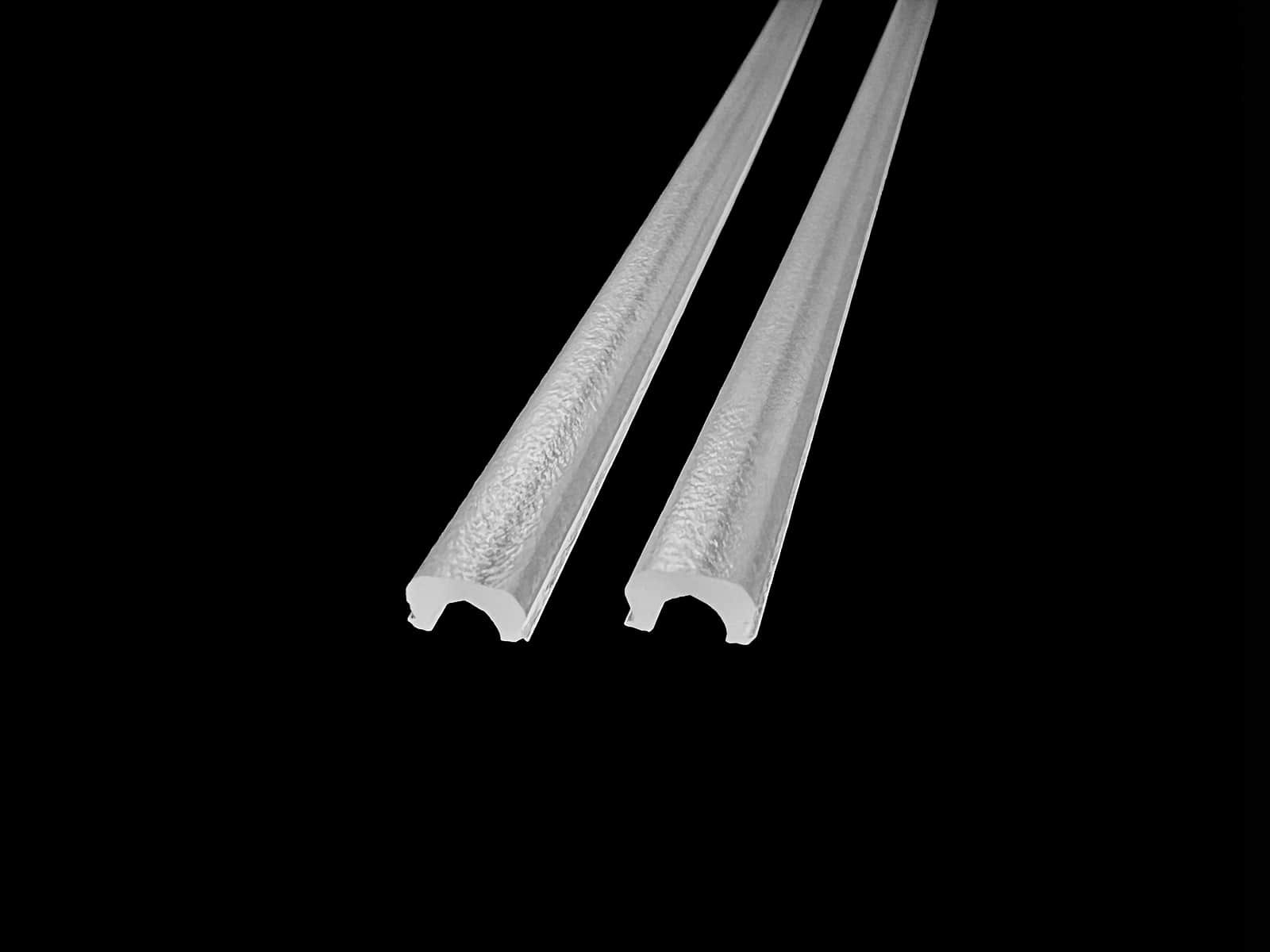

3. ASEL7D features varying housing sizes and beams like 50x95° or 60x100°. We produce these extruded optics in any length required for your project.

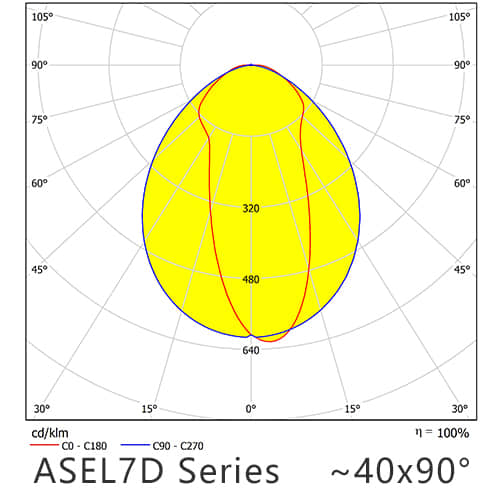

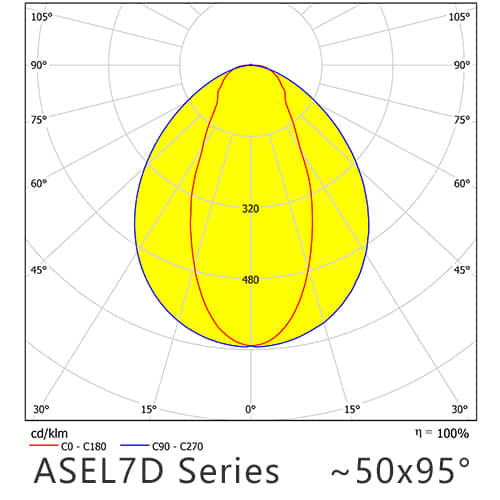

Distribution
Specifications
| Model: | ASEL7D Series |
| Size: | 7mm Width |
| Height: | - |
| Angle: | ~40x90°,~50x95°,~60x100°,~175x100°,Asy15°,DA40° |
| Material： | PMMA |
| Transmittance： | 90% |
| LED Applications | 2835/3030/3535LED |
| Lighting applications | Linear Lighting, Office lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASEL7D Series Extrusion linear lens Drawing.dwg
ASEL7D Series Extrusion linear lens Drawing.pdf

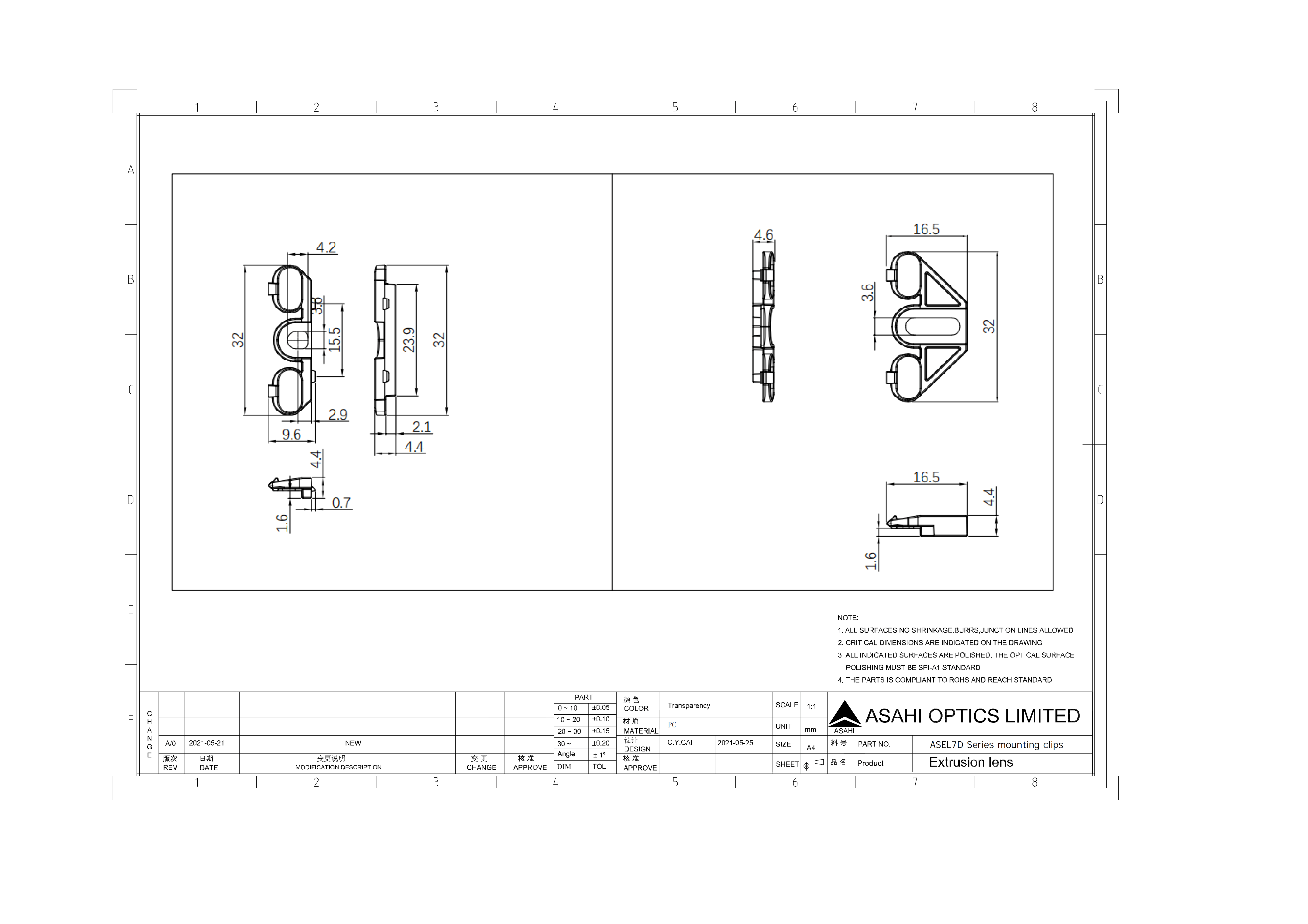

ASEL7D Series mounting clips drawing.pdf

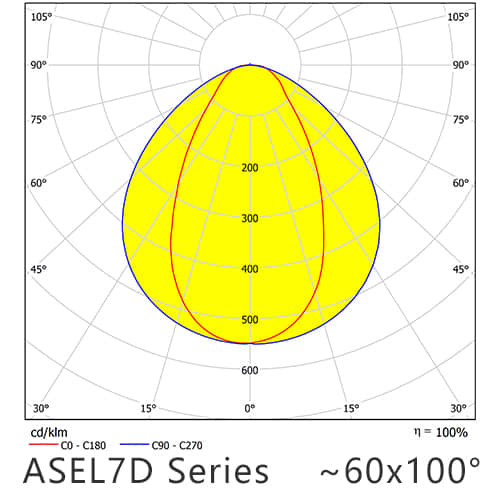

ASEL7D Series ASEL7D60100G.IES

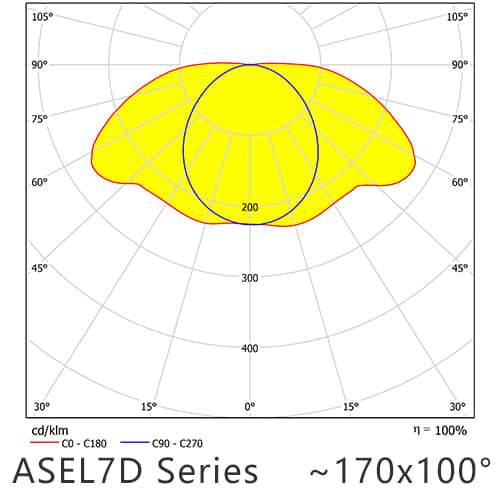

ASEL7D Series ASEL7D175100G.IES
ASEL7D Series ASEL7D-DA40G.IES
