Model: ALST255D64LEDT2M-H
Diameter: 255x75mm
Height: 8.9mm
Angle: T2M Horizontal
Material: PC-1250Z
Transmittance: >88%
LED Type: 3030 LED

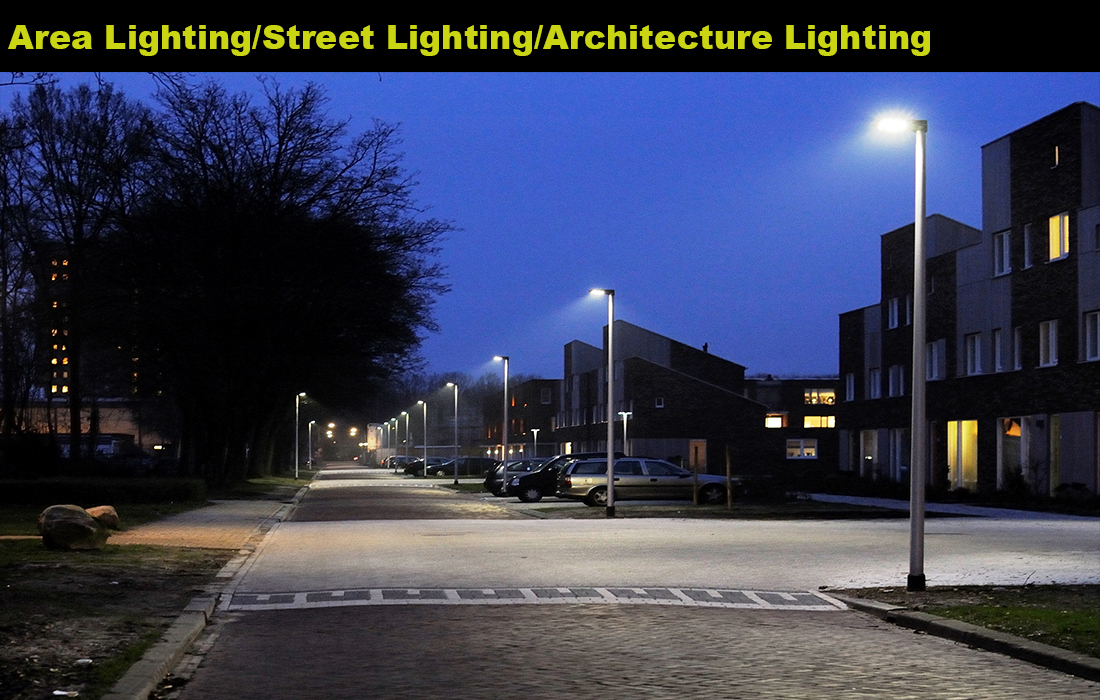

Lighting Applications: Street lighting
1. The 64 LEDs lens T2M horizontal 3030 LED is specifically designed for street lighting applications.
2. This lens with IP rating of IP66, making it ideal for outdoor use as it is resistant to water and dust.

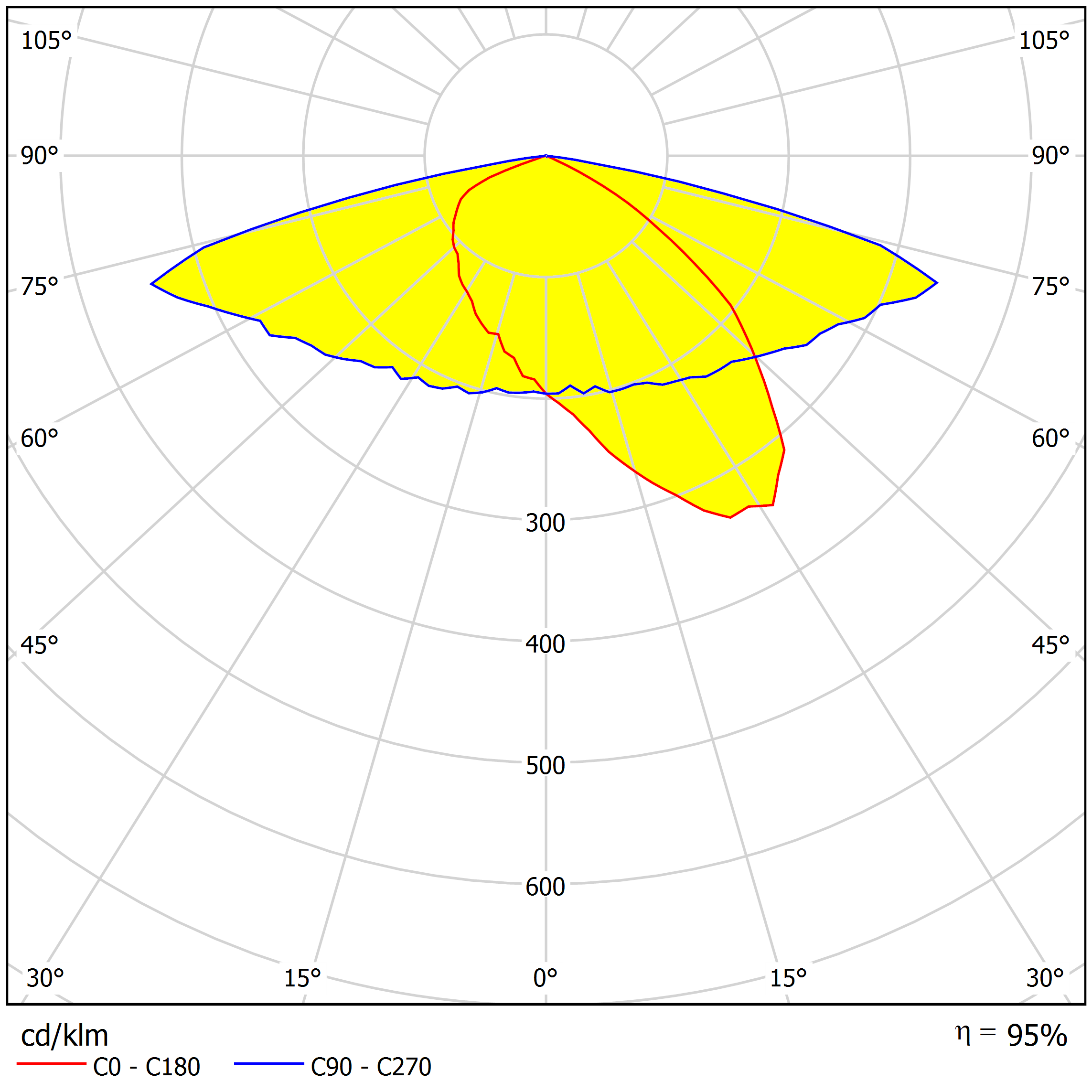

Distribution
Specifications
| Model: | ALST255D64LEDT2M-H |
| Diameter: | 255x75mm |
| Height: | 8.9mm |
| Angle: | T2M Horizontal |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030 LED |
| Lighting applications | Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALST255D64LEDT2M.ies
ASAHI OPTICS ALST255D64LEDT2M-H Drawing.dwg

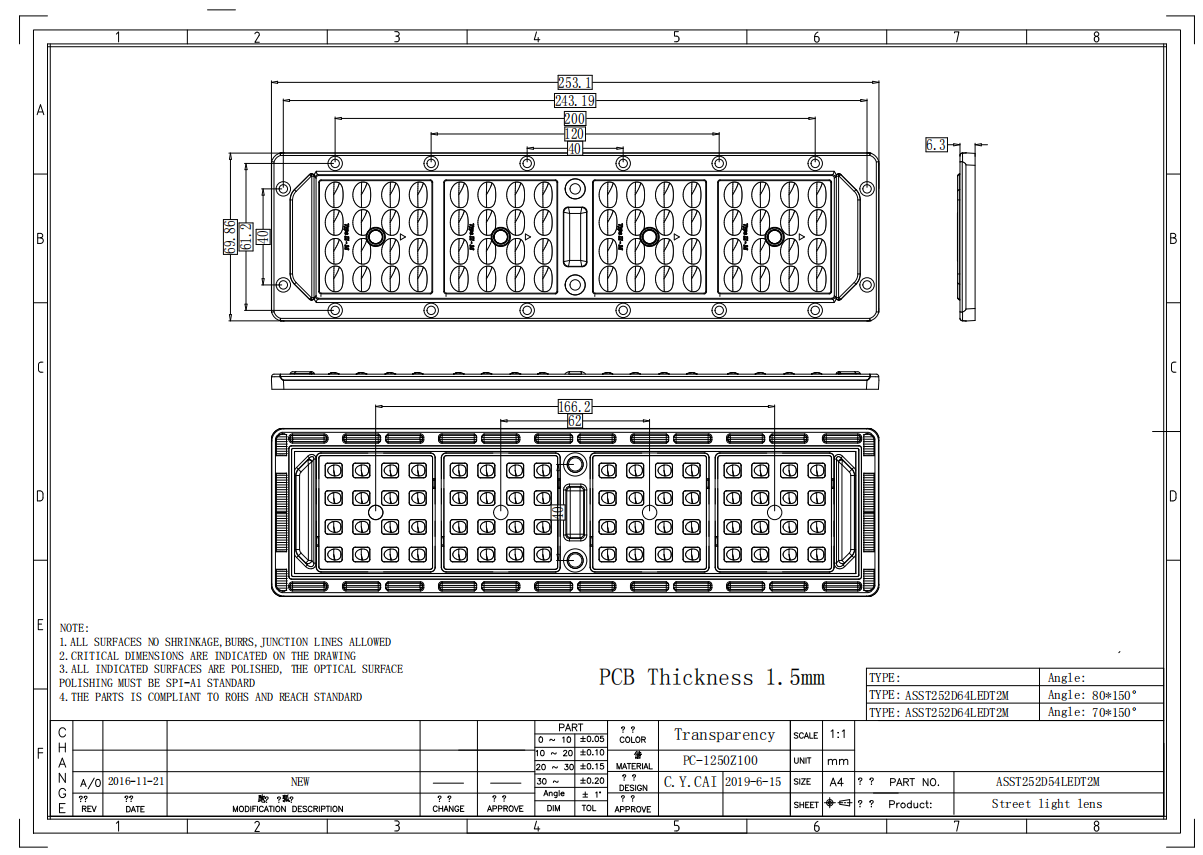

ASAHI OPTICS ALST255D64LEDT2M-H Drawing.pdf
ASAHI OPTICS ALST255D64LEDT2M lens 3D drawing.stp
ASAHI OPTICS ALST255D64LEDT2M lens Testing Report-Nichia 3030LED
