Model: ALST50D14LEDT4S
Size: 50x50(mm)
Height: 4.69mm
Angle: T4S
Material: PC
Transmittance: >88%
LED Type: 2835/ 3030LED
Lighting Applications: Street lighting
1. Specifically designed for street lighting, the 50×50mm square lens panel integrates 14 lens units with a T4S light distribution, providing wider-angle asymmetric illumination suitable for wide roads and scenarios with high requirements for illuminance uniformity.
2. Made of PC material with >88% transmittance, compatible with 2835/3030 LEDs. With a height of only 4.69mm, its ultra-thin structure facilitates modular integration, effectively controlling glare and improving roadway lighting comfort.

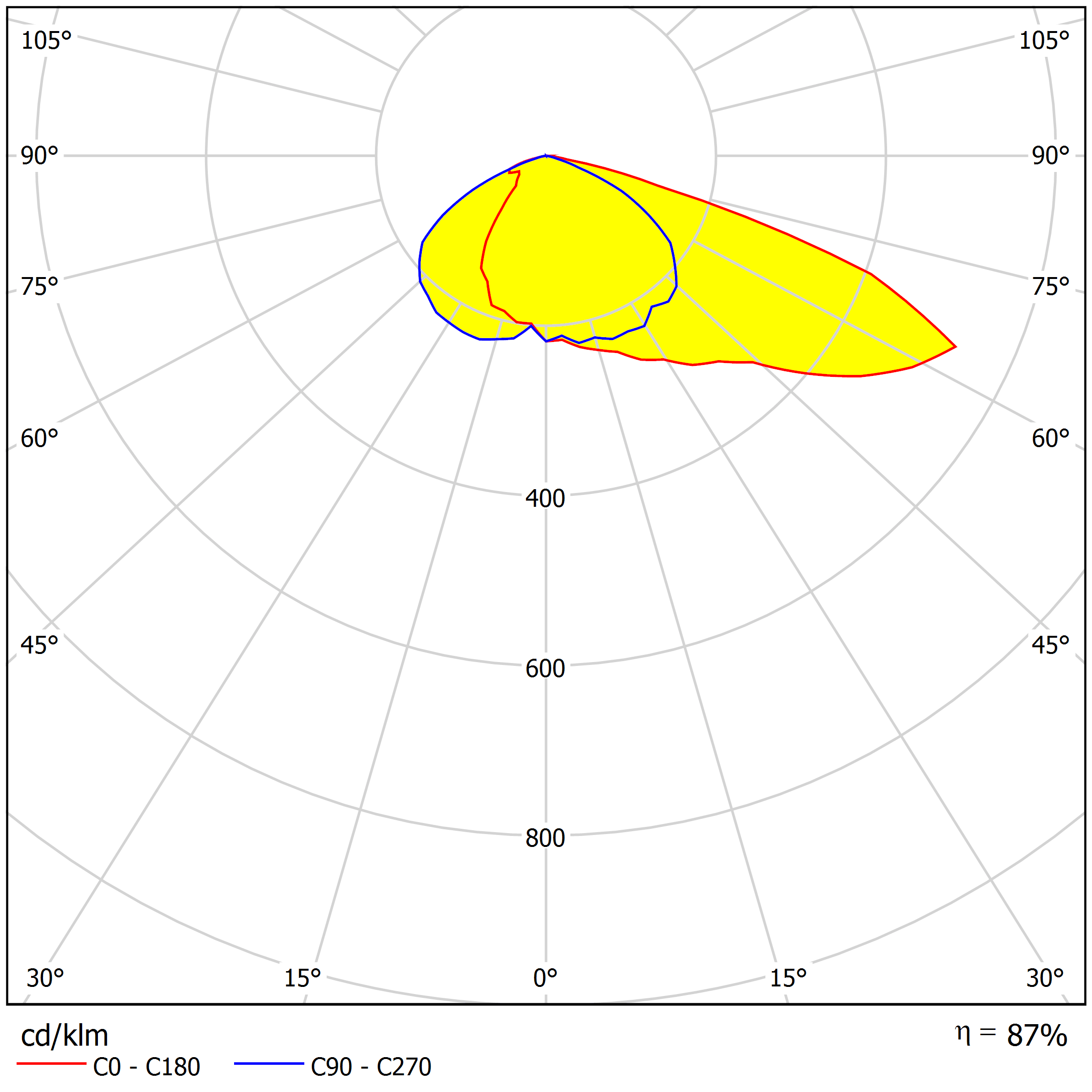

Distribution
Specifications
| Model: | ALST50D14LEDT4S |
| Size: | 50x50(mm) |
| Height: | 4.69mm |
| Angle: | T4S |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | Street lighting, High Bay light |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

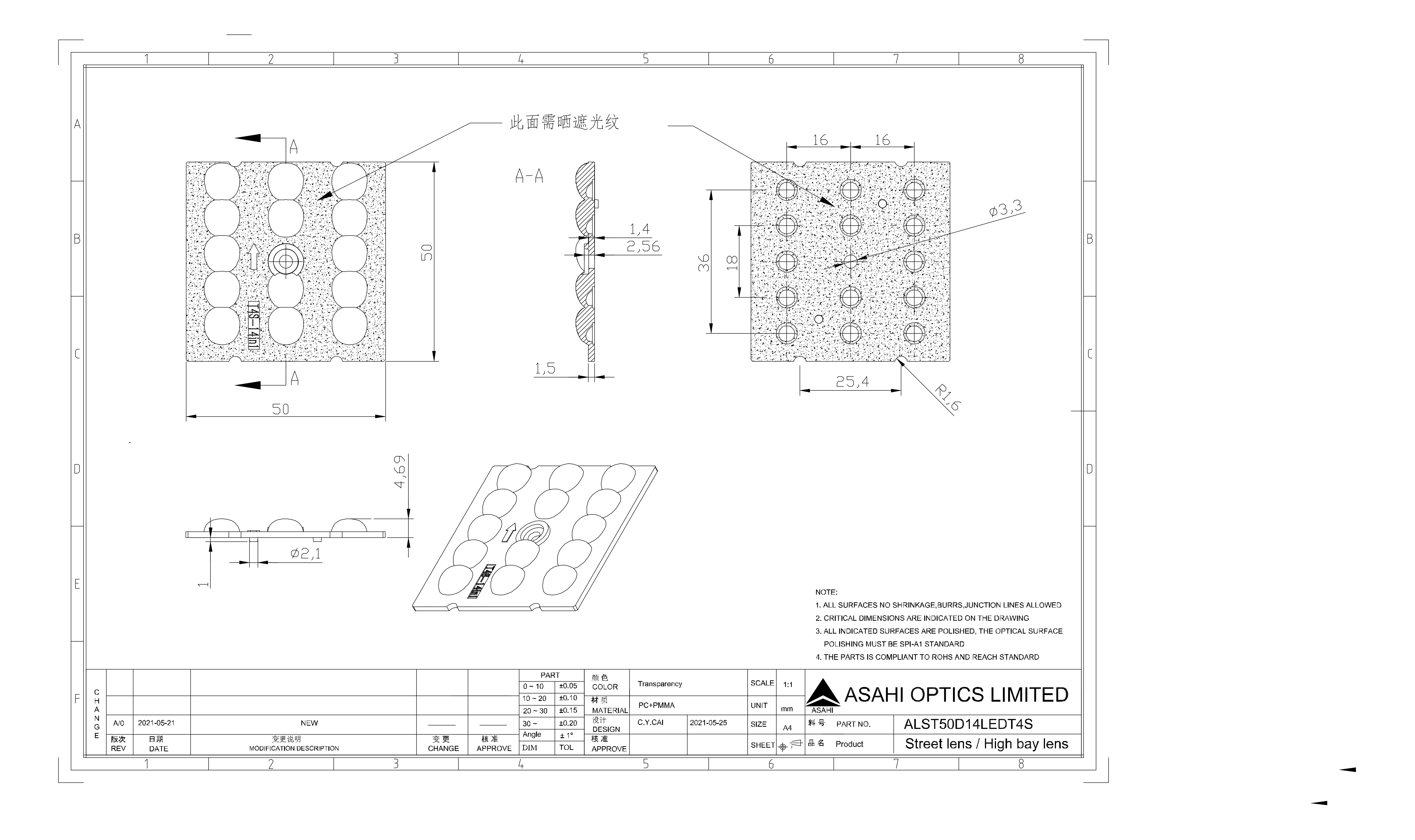

ASAHI OPTICS ALST50D14LEDT4S Drawing.dwg
ASAHI OPTICS ALST50D14LEDT4S Drawing.pdf
ASAHI OPTICS ALST50D14LEDT4S.ies
