60degree beam angle 96LEDs highbay light lens for outdoor court lighting

60degree beam angle 96LEDs highbay light lens for outdoor court lighting

Model: ARHB520D96LED60G

Diameter: 520.0mm

Height: 116.0mm

Angle: 60°

Material: PC-1250Z

Transmittance: >90%

LED Type: "3535""5050" LED

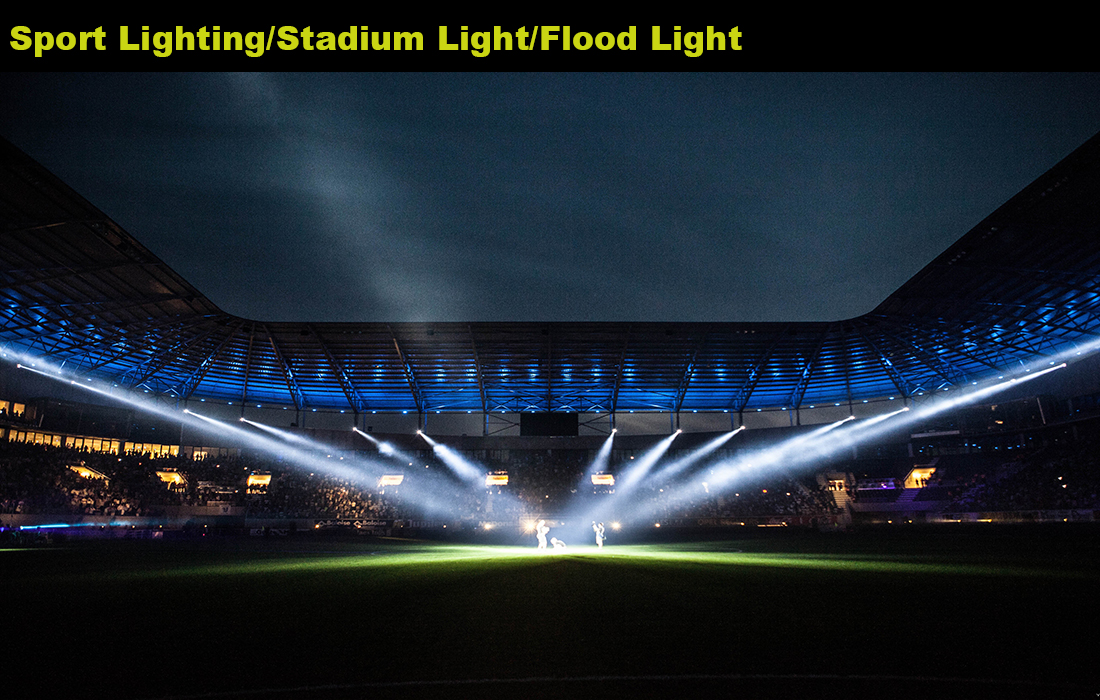

Lighting Applications: High Bay lighting, Stadium lighting

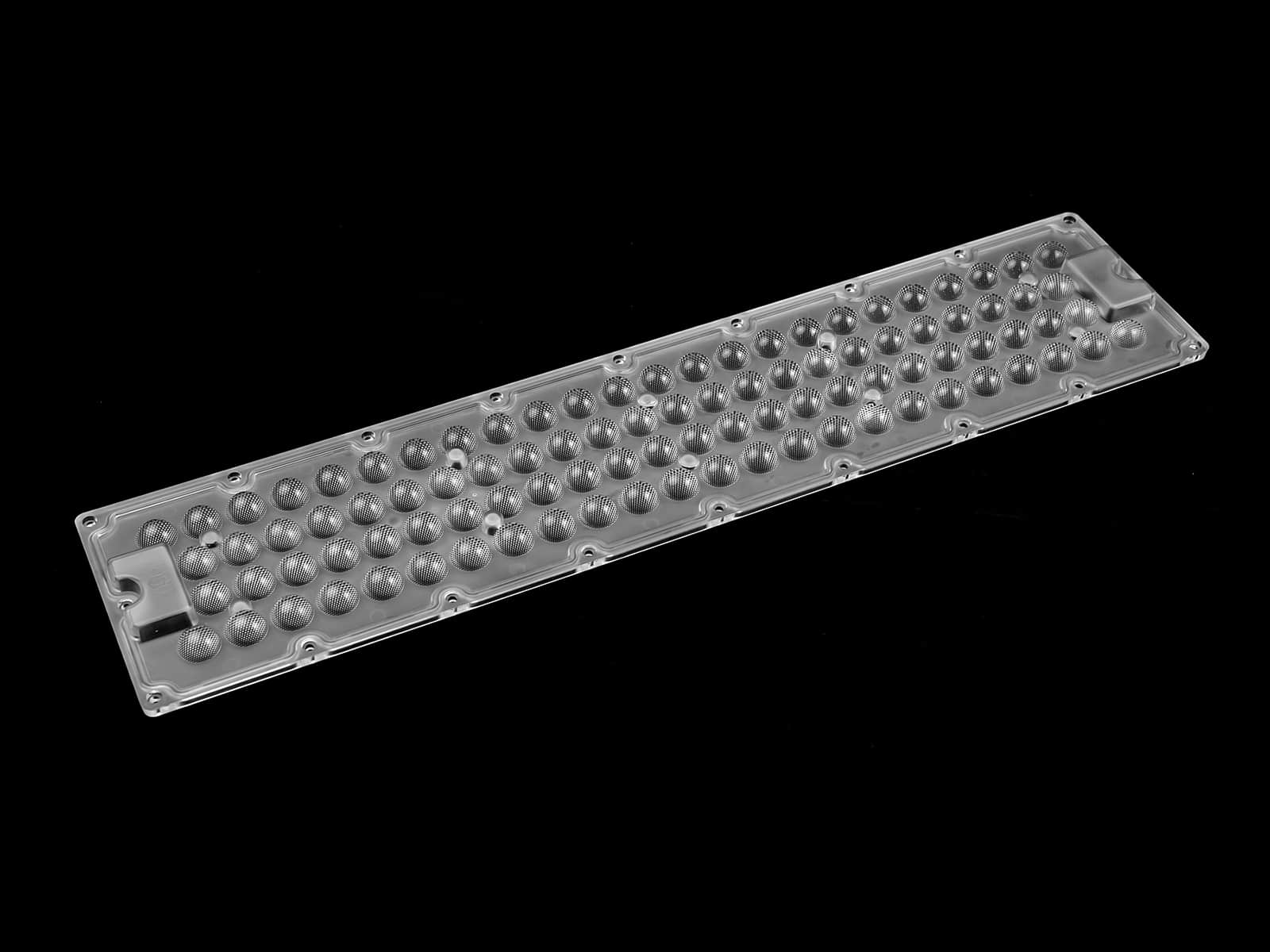

1.520mm large diameter 96LEDs field light lens, providing wide Angle lighting solutions.

2.Size and water resistance: The lens module is designed for the 5050 LED size, ensuring a good match with the LED light source. In addition, the lens module has IP66 class sealing and waterproof performance, which can effectively prevent moisture infiltration, ensuring reliability and long life.

3.Impact resistance rating: The high power lens module reaches the impact resistance rating of IK10.

4.The 60-degree beam angle expands the lighting range and makes your sports field bright and vivid.

High Power lens module for Stadium lighting and Floodlight 250W/500W/up to 1500W with optical beam angle 20°, 40°，60°,90°

The high power lens modules are designed for 5050LED size with IP66 gasket waterproof and it can be reached to IK10 grade.
The high power lens modules are widely used for large areas such as outdoor sports lighting,tower crane lighting, harbor terminal lighting, industrial lighting, etc.
The optical beam angle is available from narrow beam to a wide beam of 20°, 40°, 60°,90° to match the different height of lighting installation.

96LED lens1 96LED lens2

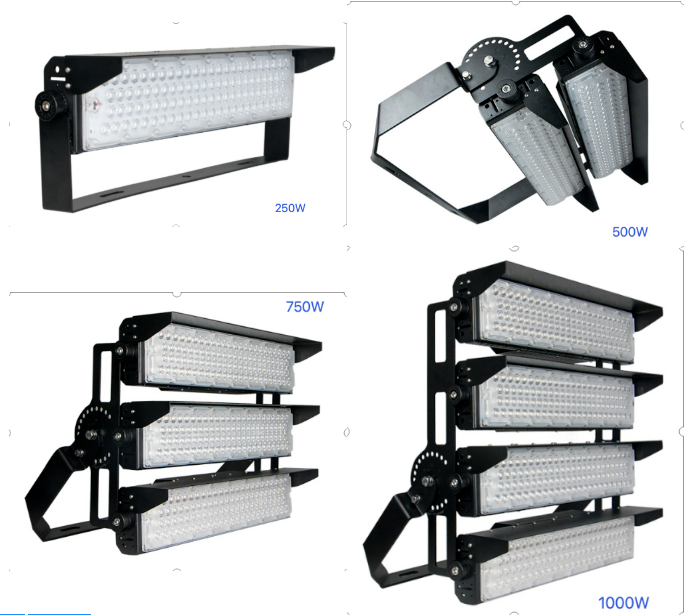

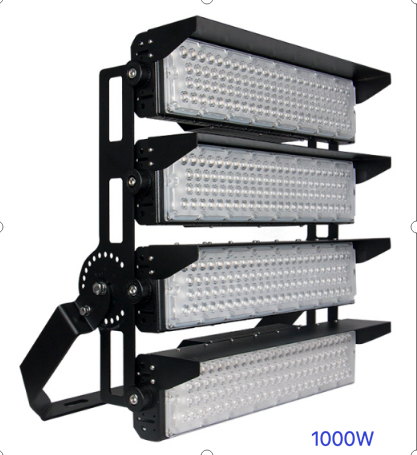

96led lens 250W 96led lens 500W 96led lens 750W 96led lens 1000W

Specifications

Model:	ARHB520D96LED60G
Diameter:	520.0mm
Height:	116.0mm
Angle:	60°
Material：	PC-1250Z
Transmittance：	>90%
LED Applications	"3535""5050" LED
Lighting applications	High Bay lighting, Stadium lighting
