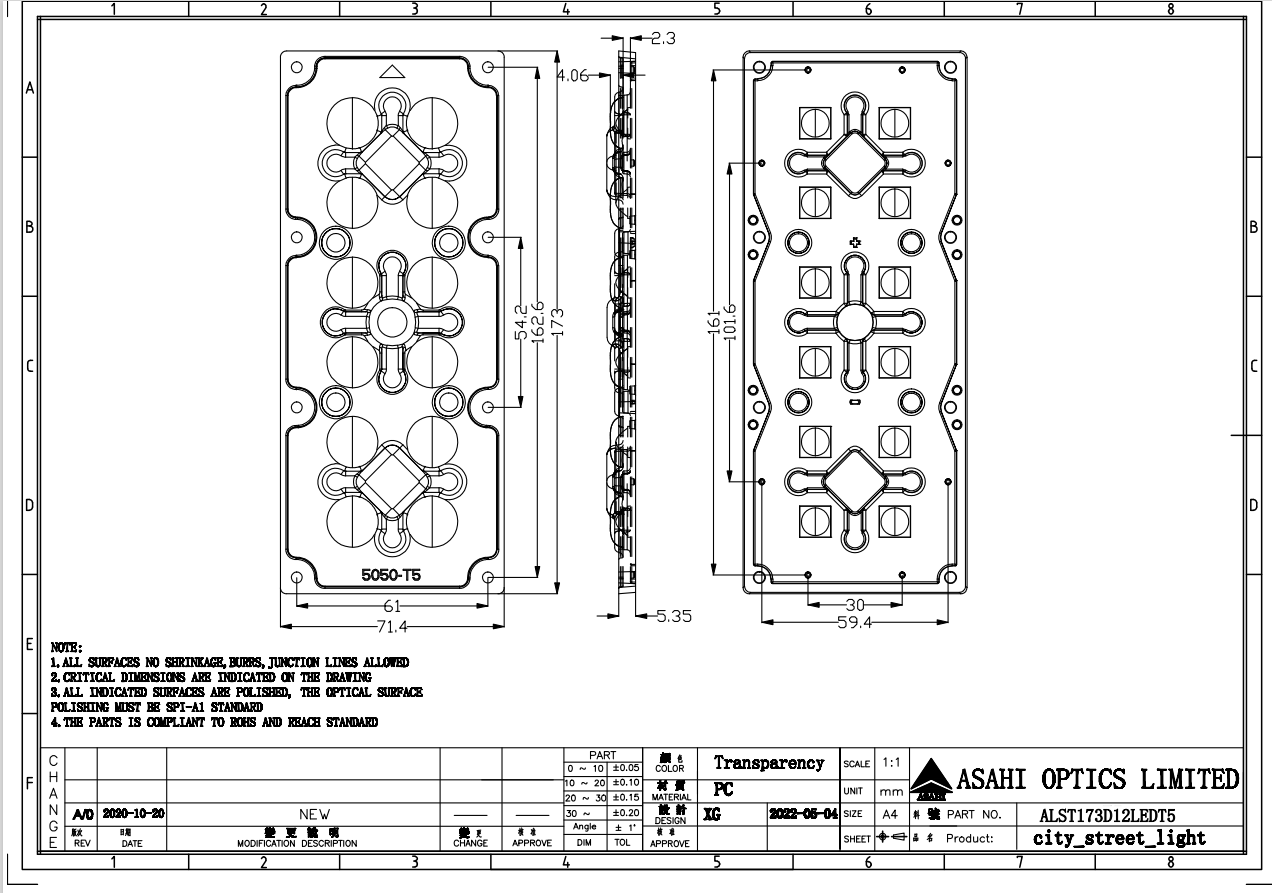

Model: ALST173D12LEDT5
Diameter: 173x71.4mm
Height: 5.35mm
Angle: T5
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street lighting,Architecture lighting,High Bay lighting

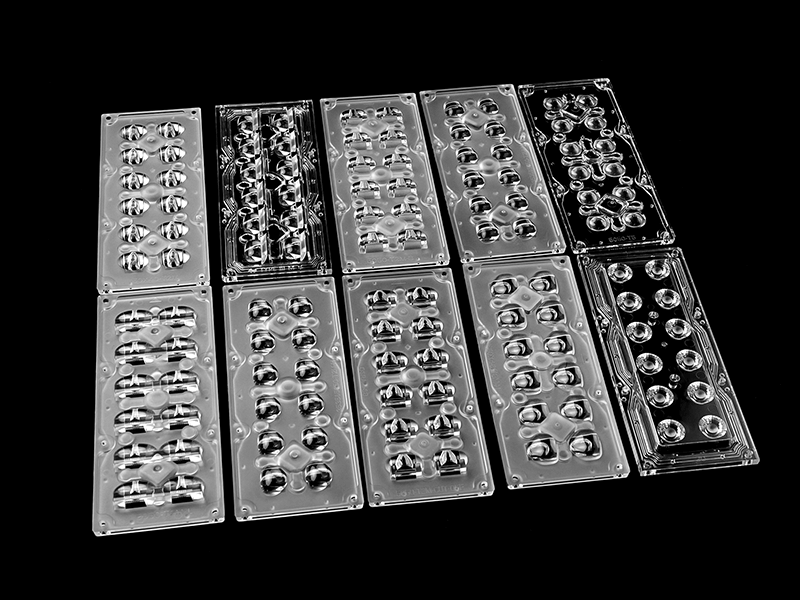

1. 2x6 lens T5 with IP 66 gasket compatible with 3535LED and 5050LED.

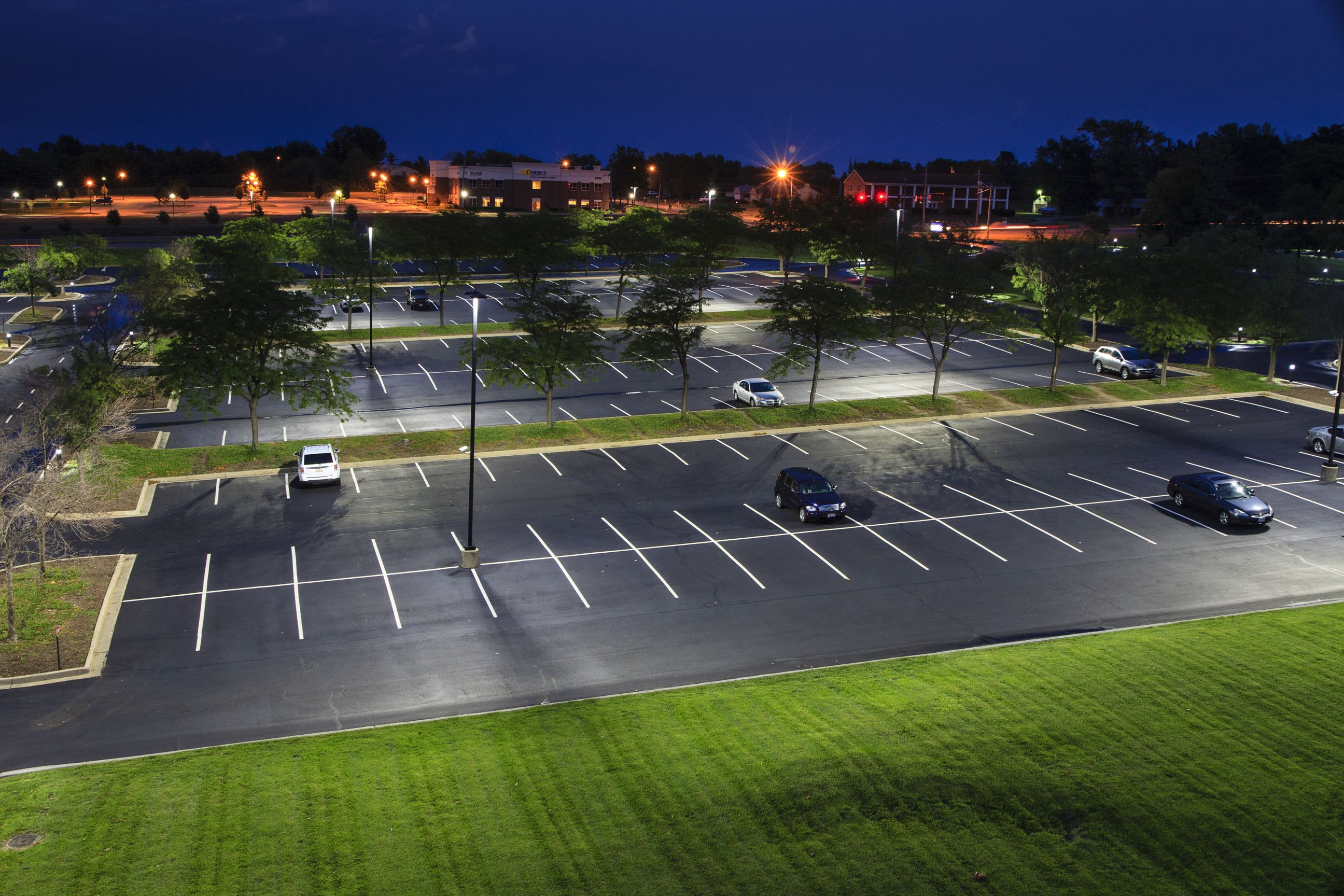

2. The Type V beam provides a wide and uniform distribution of light, making it suitable for applications that require coverage over a large area, such as street lighting and parking lot illumination.
3. The uniform distribution helps reduce glare issues, improving the comfort and safety of nighttime driving and pedestrian activities.

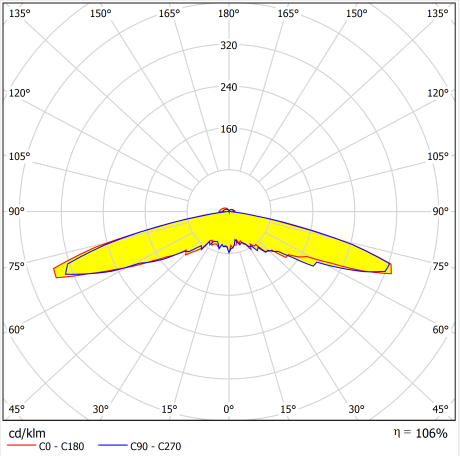

Distribution
Specifications
| Model: | ALST173D12LEDT5 |
| Diameter: | 173x71.4mm |
| Height: | 5.35mm |
| Angle: | T5 |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050 LED |
| Lighting applications | Street lighting,Architecture lighting,High Bay lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
2x6 lens T5 with IP 66 gasket compatible with 3535LED and 5050LED for garden light, neighborhood street light.
