Model: ARHB236D28LED5050T60G
Diameter: 236x70mm
Height: 8.9mm
Angle: 60°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 5050LED

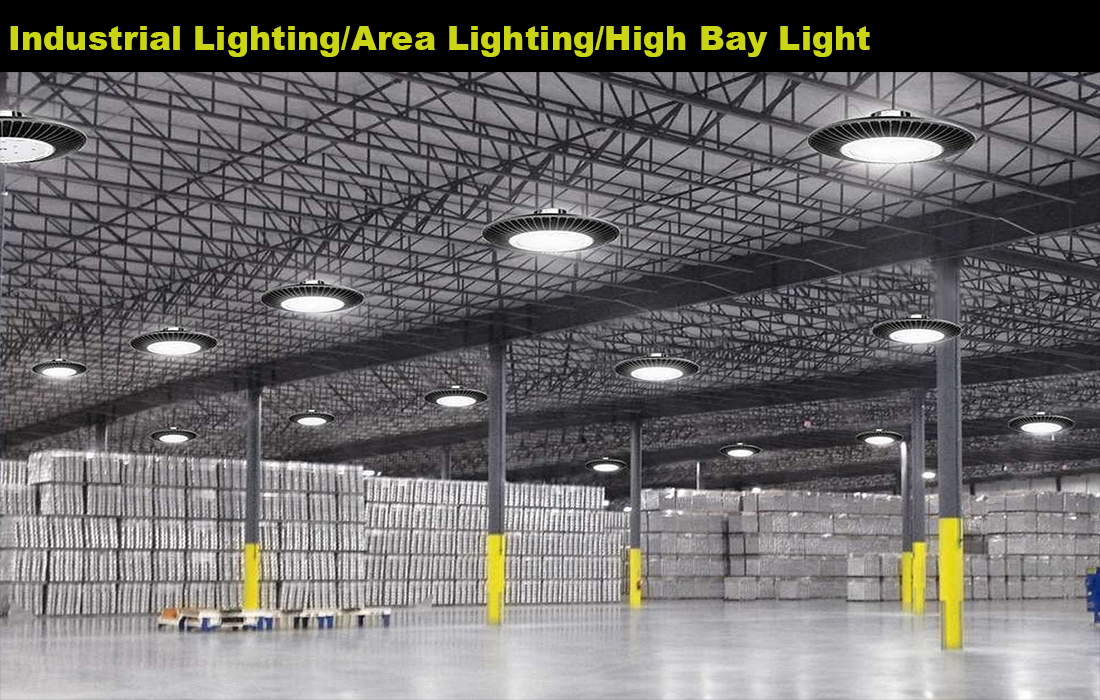

Lighting Applications: High Bay Lighting, Area Lighting
1. With an 60° medium angle, offers versatility in applications, providing a balanced spread of light suitable for high bay lighting,flood lighting,area lighting,stadium light etc.
2. 28-in-1 module lens with an IP66 rating, the lens ensures a high level of protection against dust and water ingress, making it suitable for challenging outdoor environments.
3. The lens is made of PC material,exhibits robustness and resilience, ensuring a reliable performance over time.

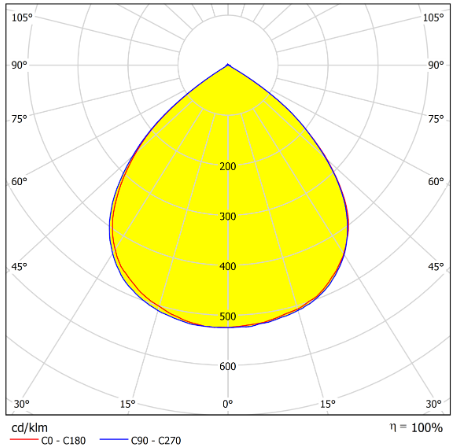

Distribution
Specifications
| Model: | ARHB236D28LED5050T60G |
| Diameter: | 236x70mm |
| Height: | 8.9mm |
| Angle: | 60° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARHB236D28LED5050T60 lens 3D drawing.STP

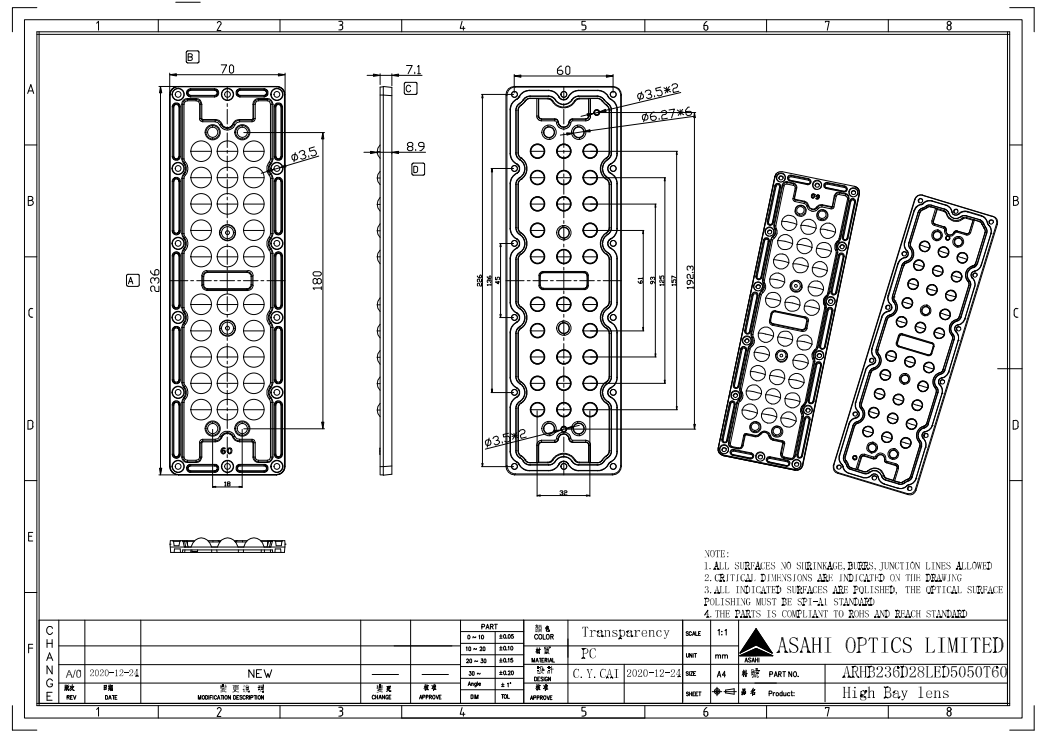

ASAHI OPTICS ARHB236D28LED5050T60 Drawing.dwg
ASAHI OPTICS ARHB236D28LED5050T60 Drawing.pdf
ASAHI OPTICS ARHB236D28LEDs PCB Drawing.dwg
