Model: ALHB173DXXLED90G
Diameter: 173x71.4mm
Height: 10.38mm
Angle: 90°
Material: PC-1250Z
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED

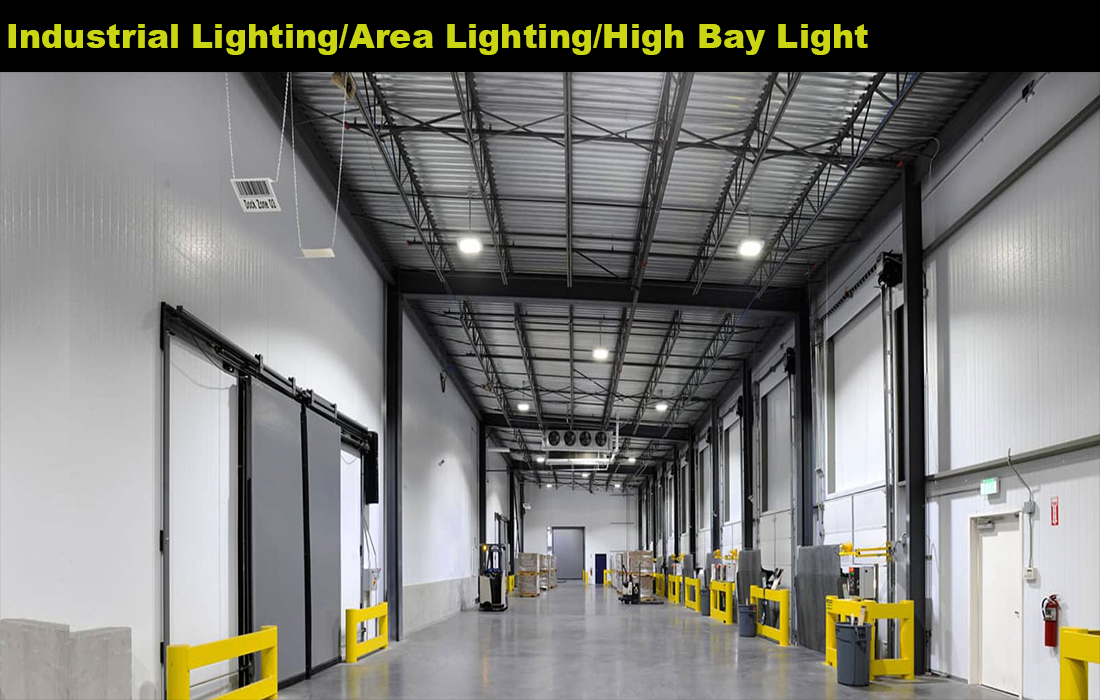

Lighting Applications: high bay lighting
1. LED Applications: "2835""3030""5050"LED
2. This lens' family are flexible for customers to place LEDs freely to meet different requirements.
3. This LED flexibility allows customers to customize the lighting design to suit different applications and preferences effectively.

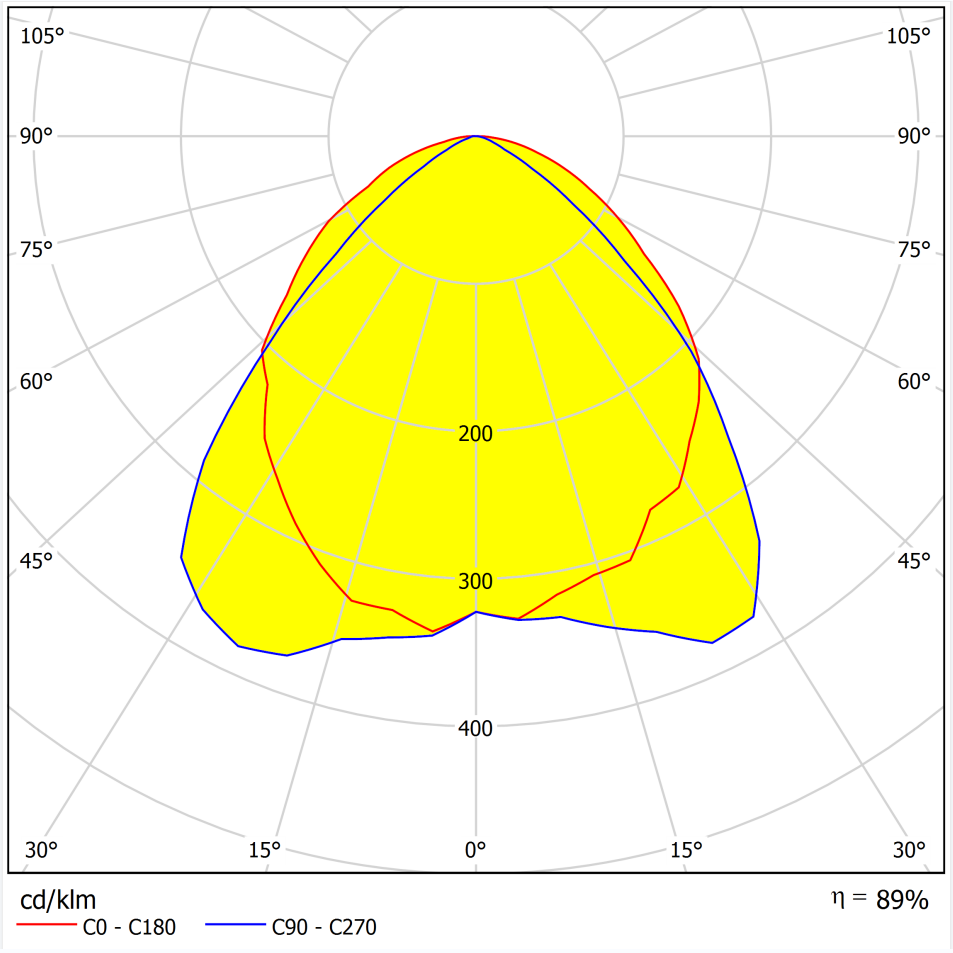

Distribution
Specifications
| Model: | ALHB173DXXLED90G |
| Diameter: | 173x71.4mm |
| Height: | 10.38mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | High Bay Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
This lens' family are flexible for customers to place LEDs freely to meet different requirements.

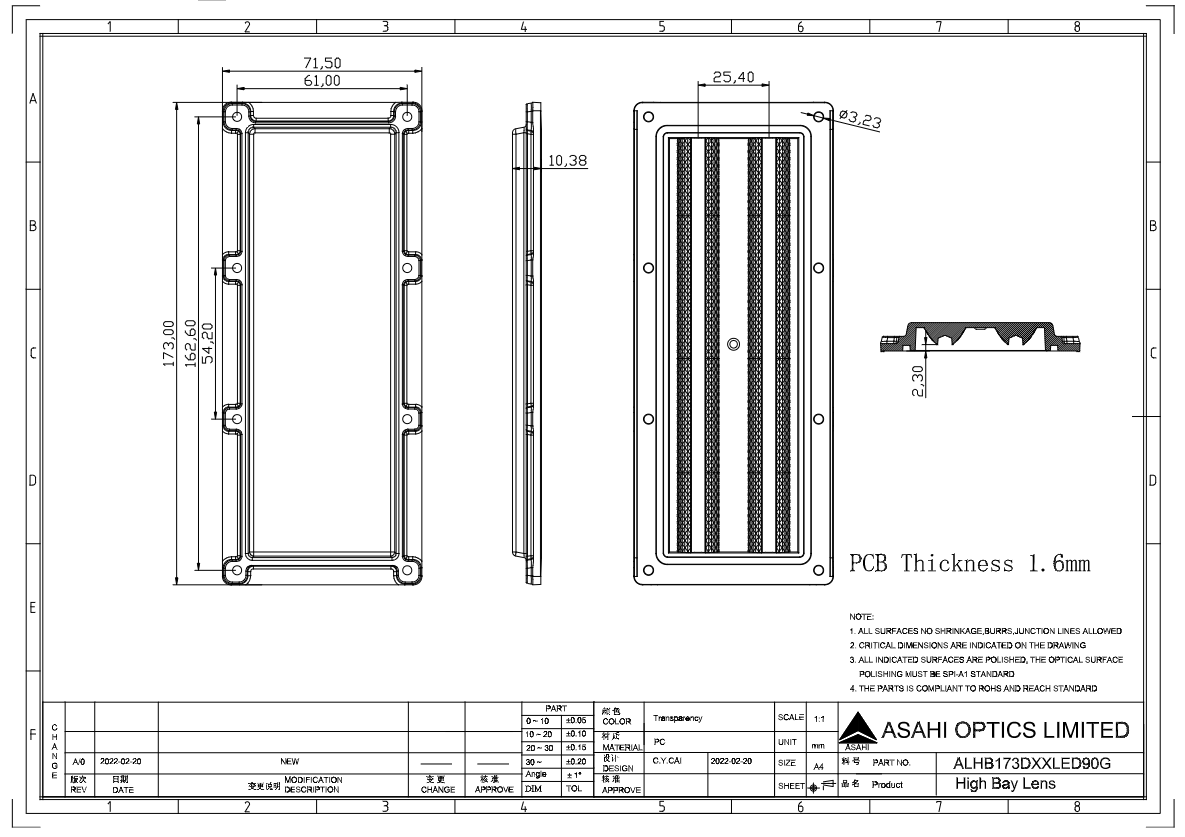

ASAHI Optics ALHB173DXXLED90G 3D Drawing.stp
ASAHI Optics ALHB173DXXLED90G Drawing.dwg
ASAHI Optics ALHB173DXXLED90G Drawing.pdf

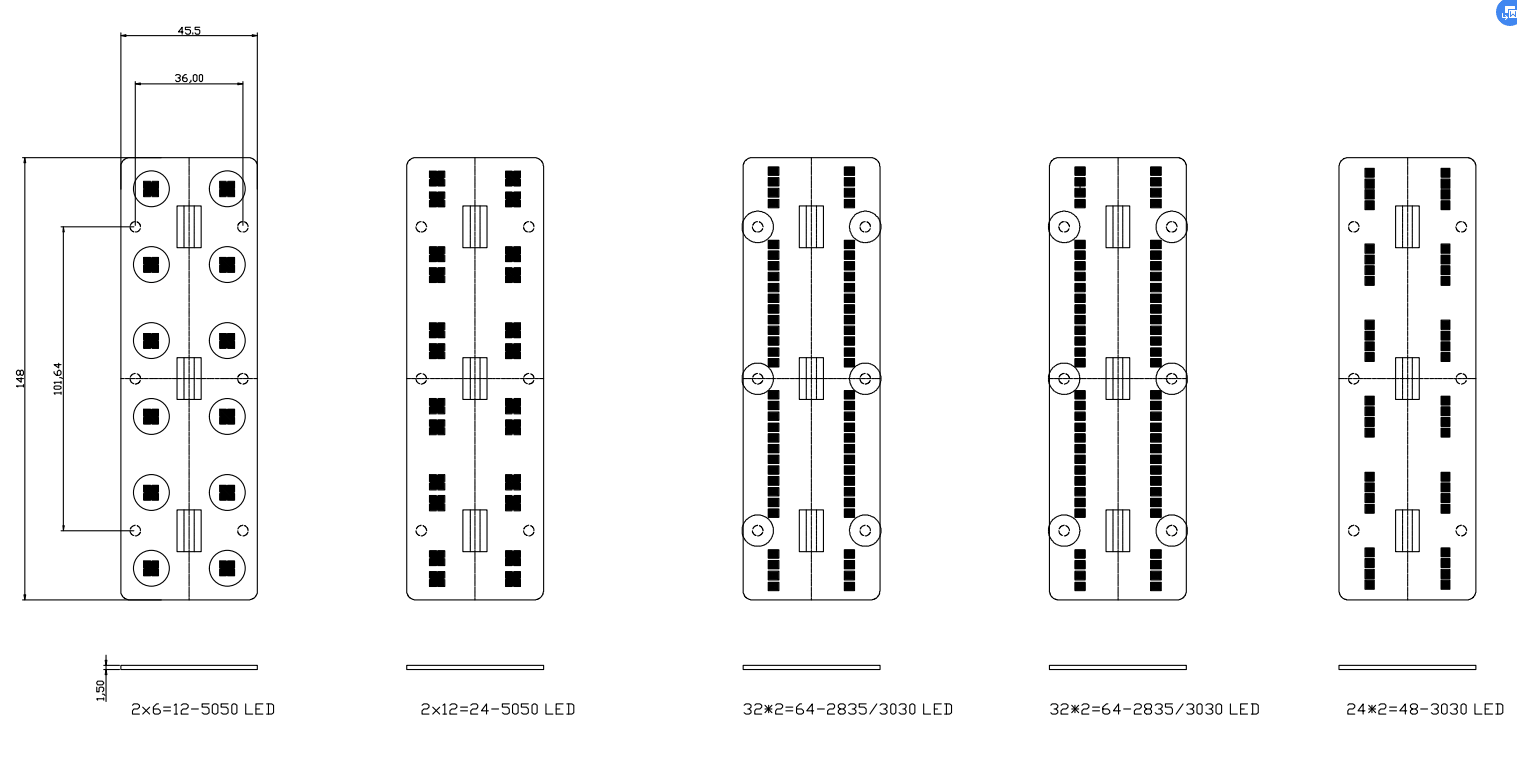

ASAHI Optics ALHB173DXXLED90G PCB Drawing.dwg
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
