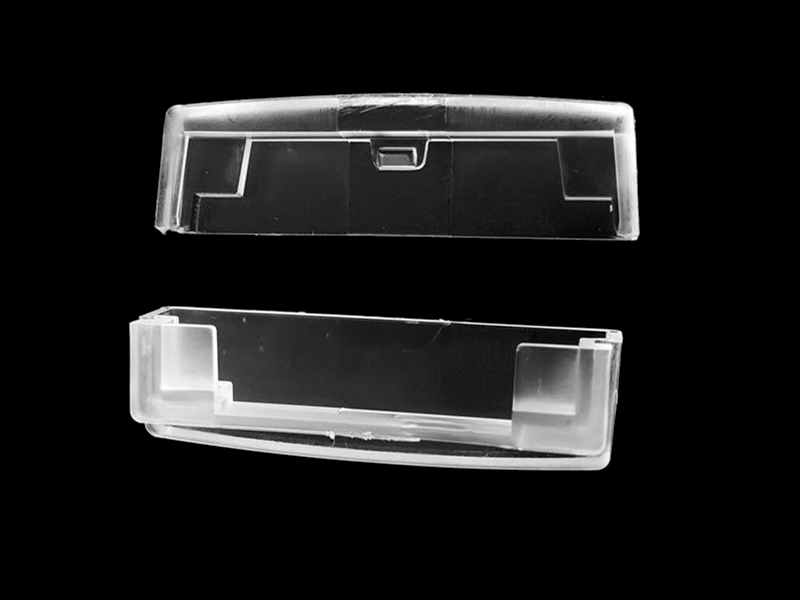

Linear Lighting Luminaire With Lens End Caps

Model: ASL280D40HXXLEDcaps

Diameter: 40.0

Height: 11.15

Angle: none

Material: PC

Transmittance:

LED Type:

Lighting Applications:

1. It's compatible with Zhaga standard PCB
2. PMMA material with 93% lighting efficiency
3. Excellent lighting performance with lower UGR
4. Suitable for office and supermarket lighting
5. Indoor linear lighting lenses are designed to maximize light transmission

Specifications

Model:	ASL280D40HXXLEDcaps
Diameter:	40.0mm
Height:	11.5mm
Angle:	No
Material：	PC
Transmittance：
LED Applications
Lighting applications

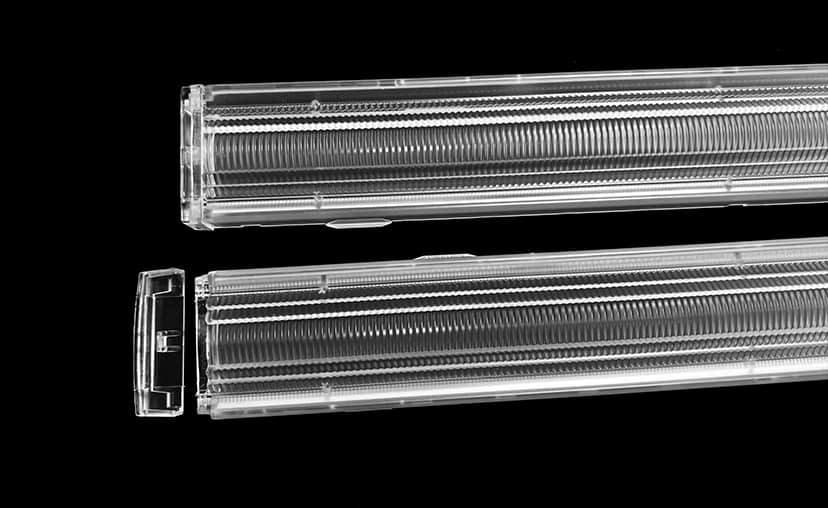

The linear lens cap is a snap-on type, which makes the assembly of the luminaire more simple and elegant.

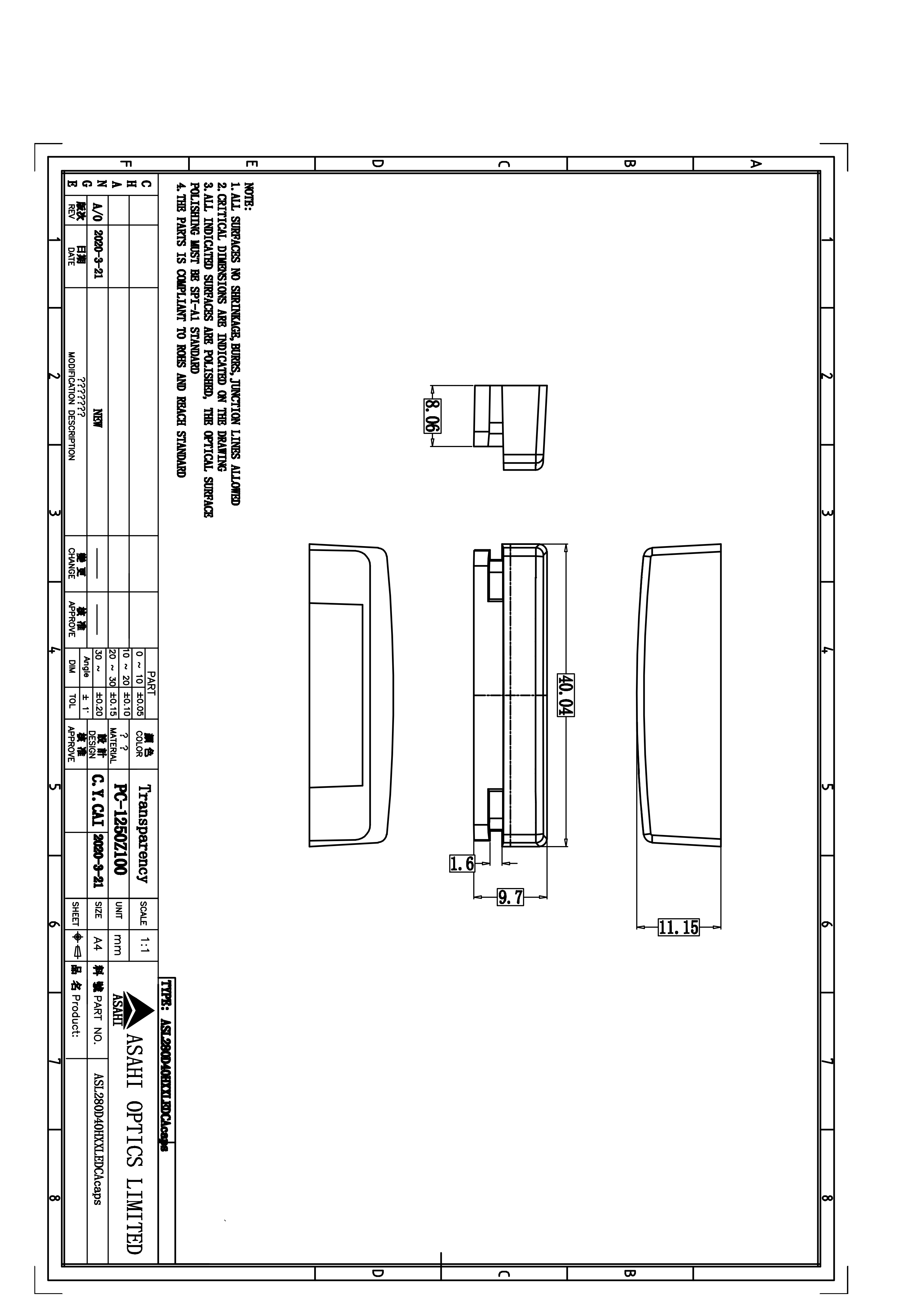

CAcap

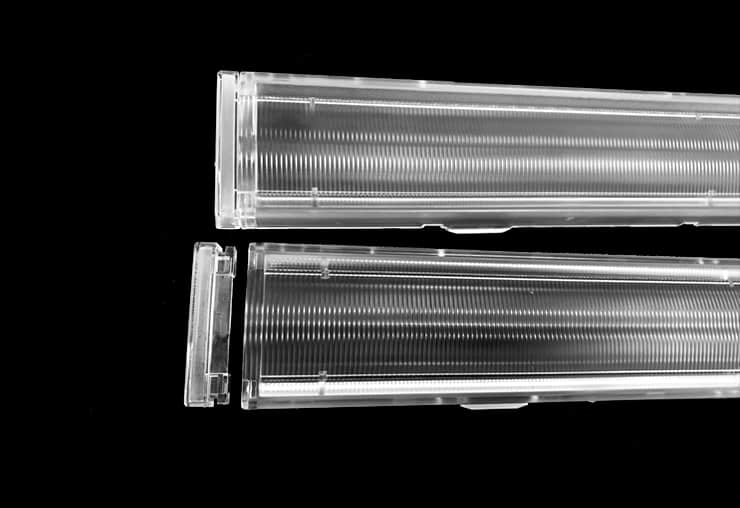

CAcaps2

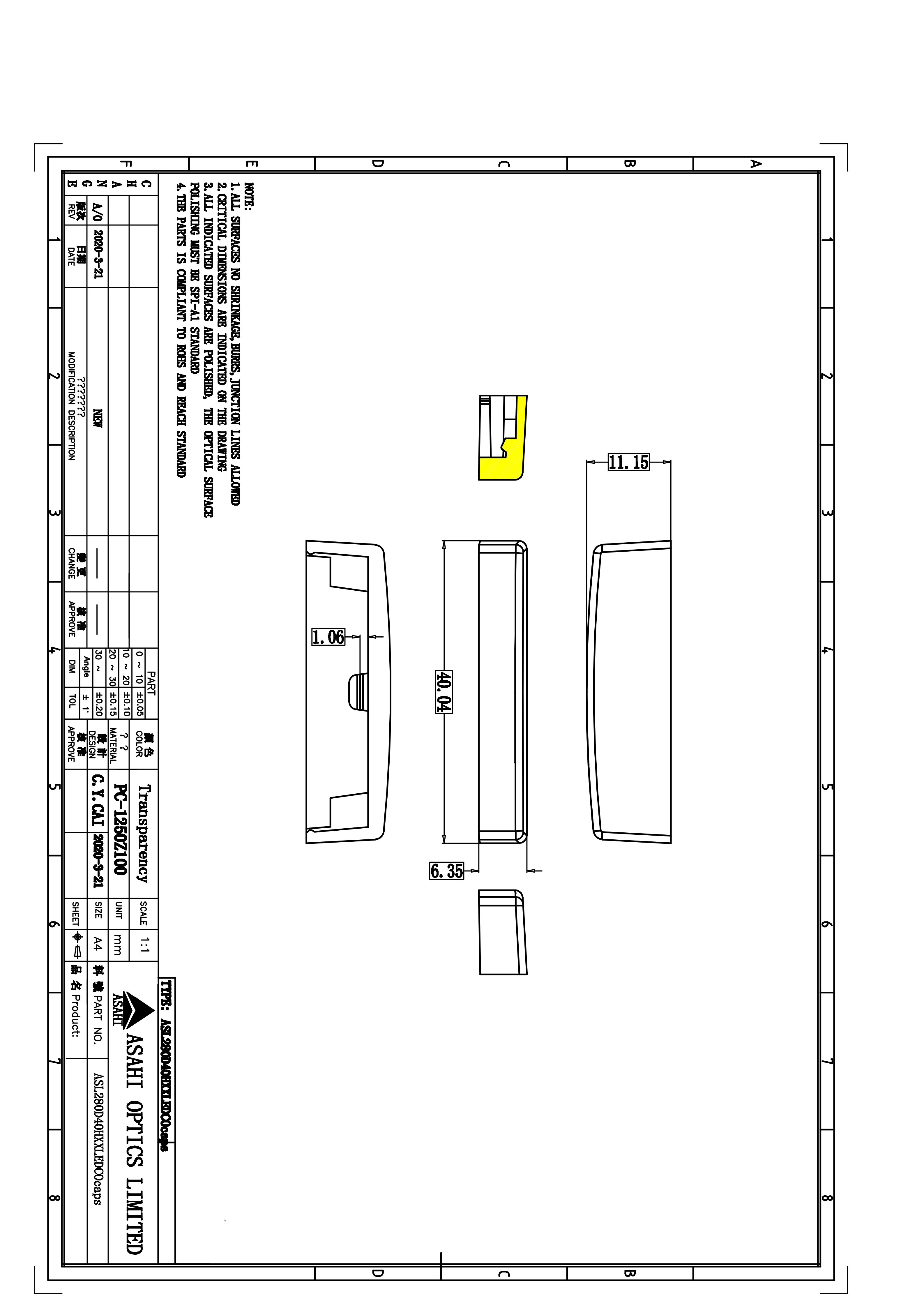

COcap

COcaps1

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
