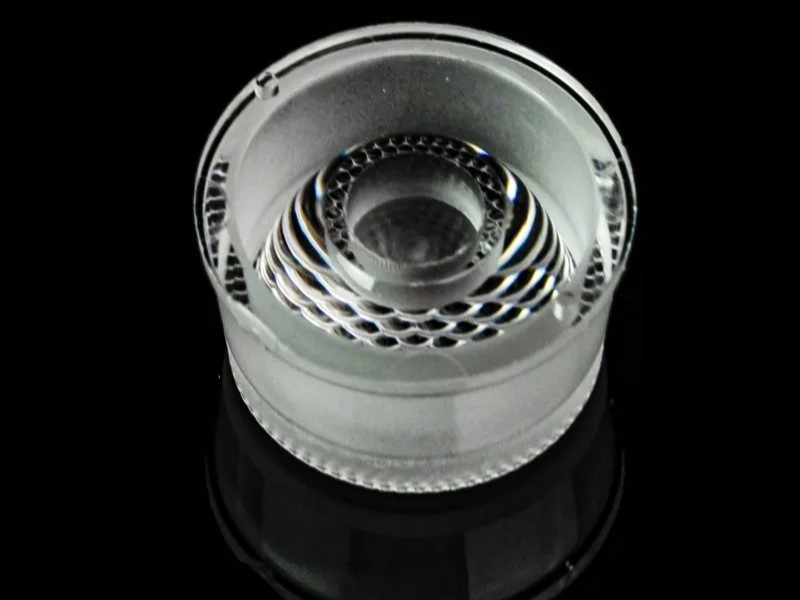

Model: AW22D12H10G/15G/30G/45G/60G/1530G/1545G/1560G
Diameter: 22.0mm
Height: 12.7mm

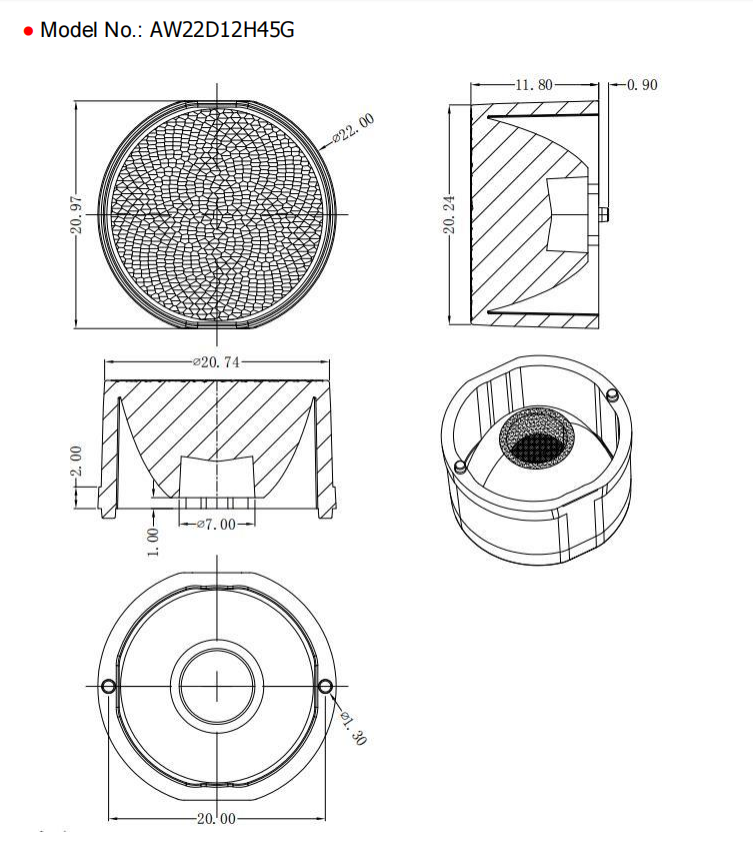

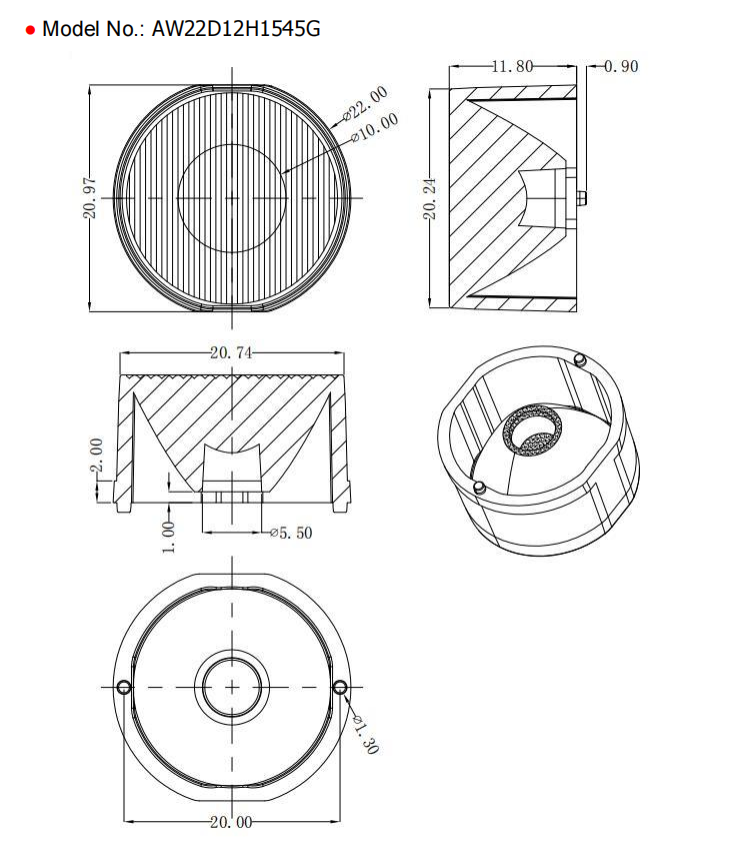

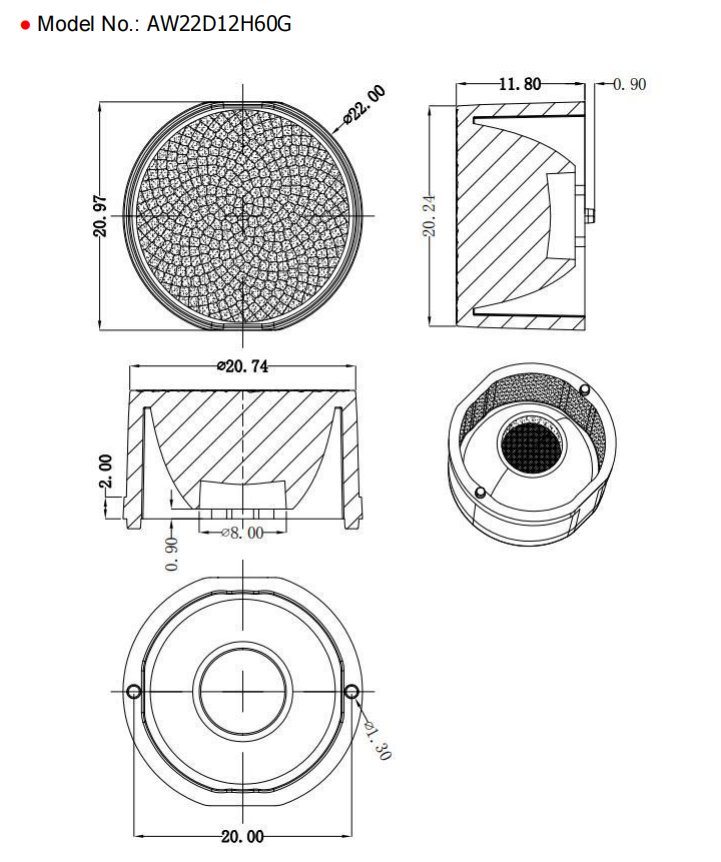

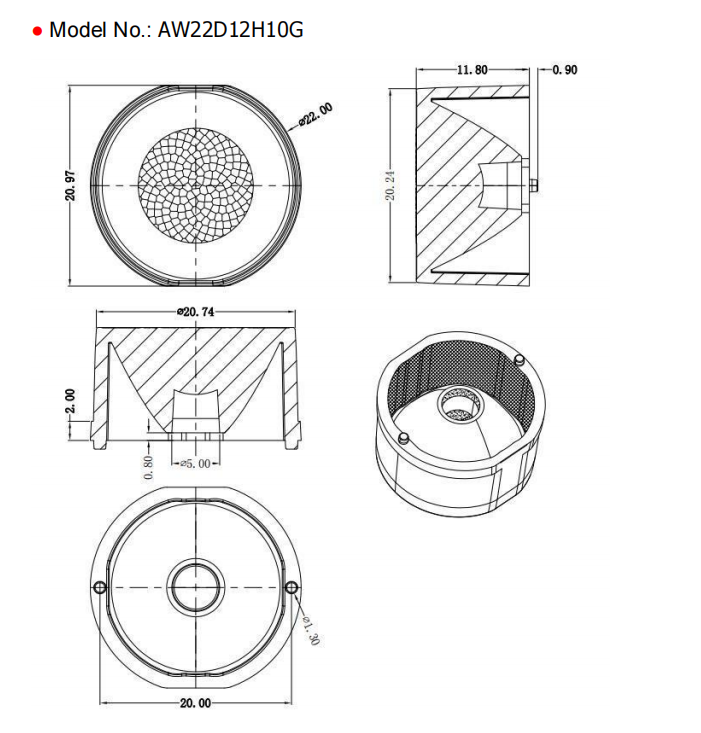

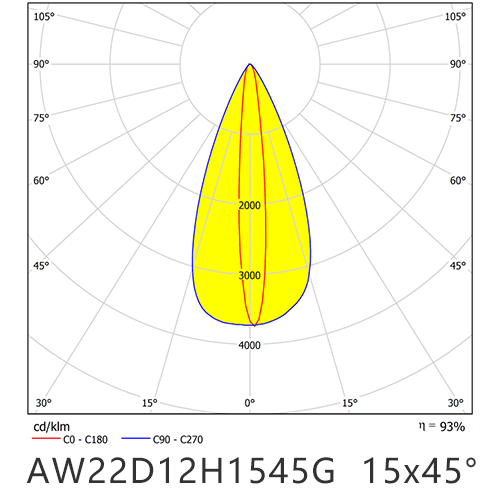

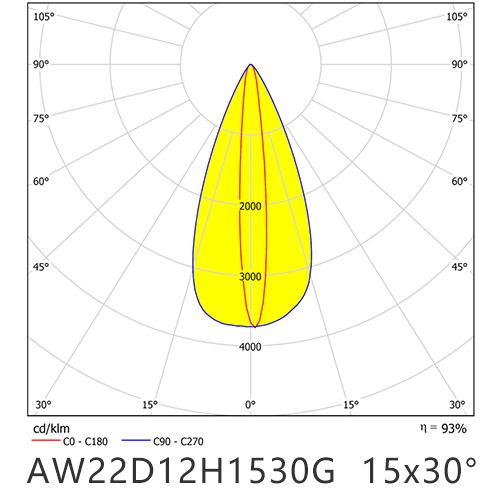

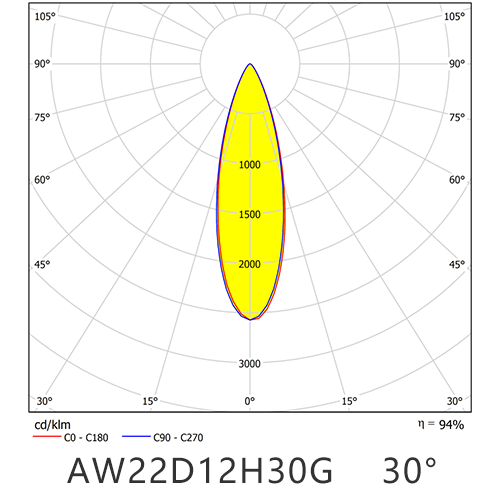

Angle: 10°,15°,30°,45°,60°,15x30°,15x45°,15x60°
Material: PMMA
Transmittance: >93%
LED Type: 3030LED,3535LED,5050LED

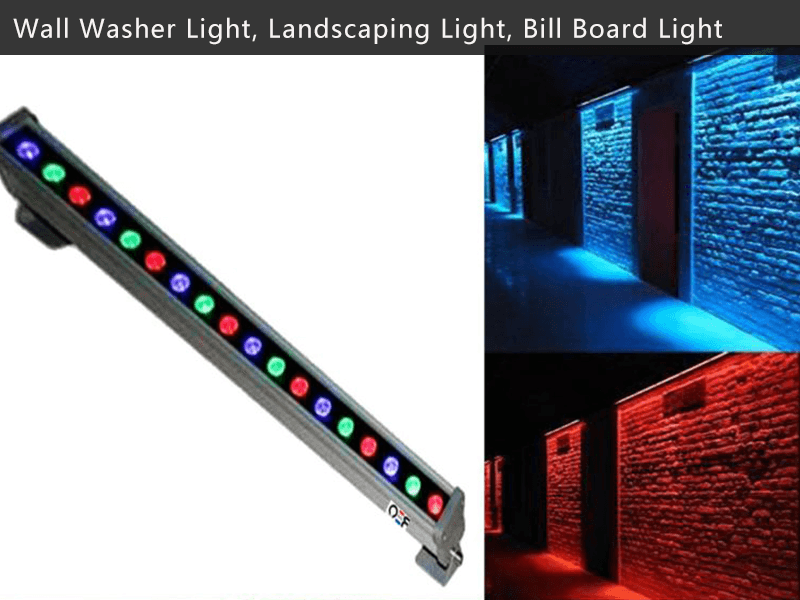

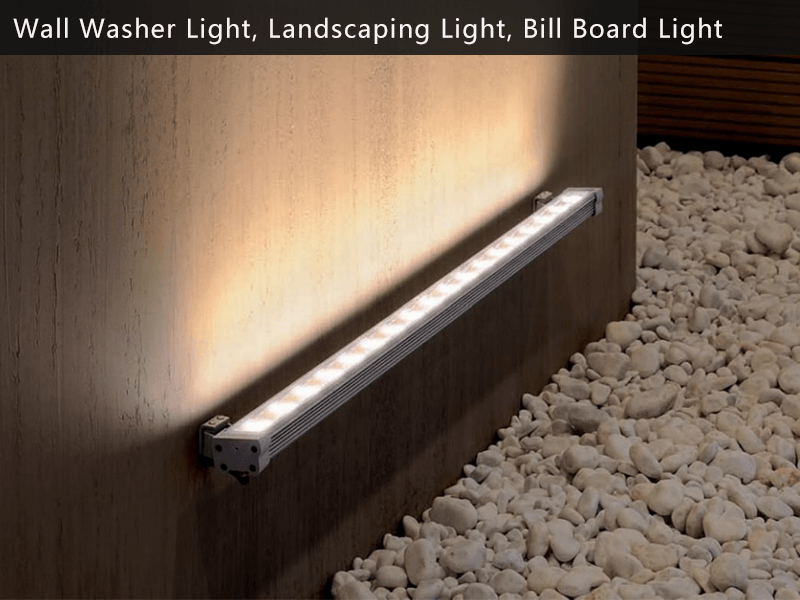

Lighting Applications: Wall Washer Light, Landscaping Light, Bill Board Light
1. The AW series features a 22mm lens, compatible with 3030, 3535, and 5050 LEDs. Made of PMMA optical material, it boasts a light transmittance exceeding 93%.
2. This series offers a variety of circular and elliptical beam angles ranging from 10° to 60° . It has a diameter of 22.0mm and a height of 12.7mm.

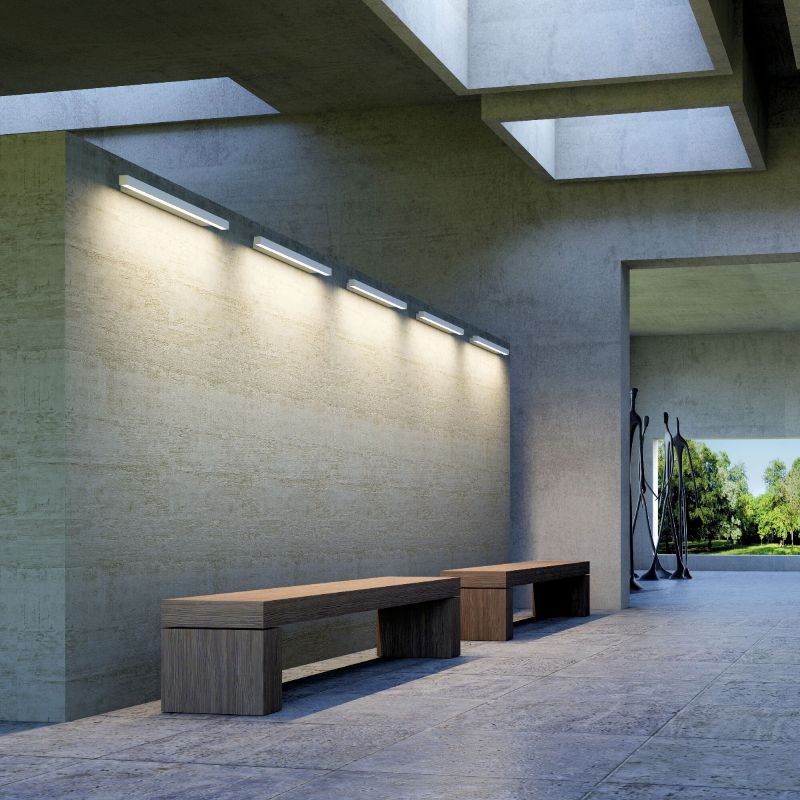

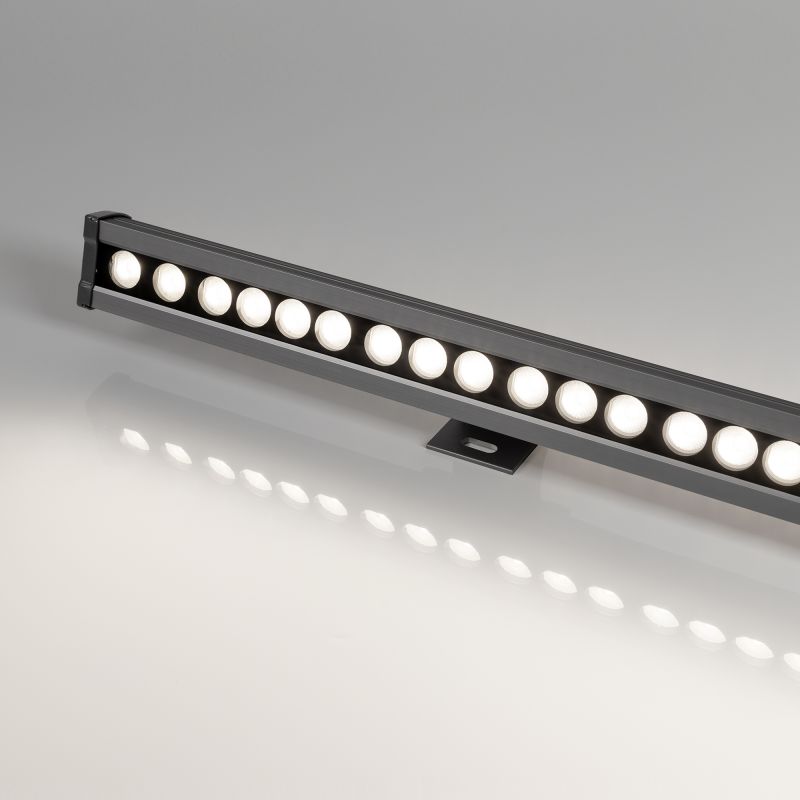

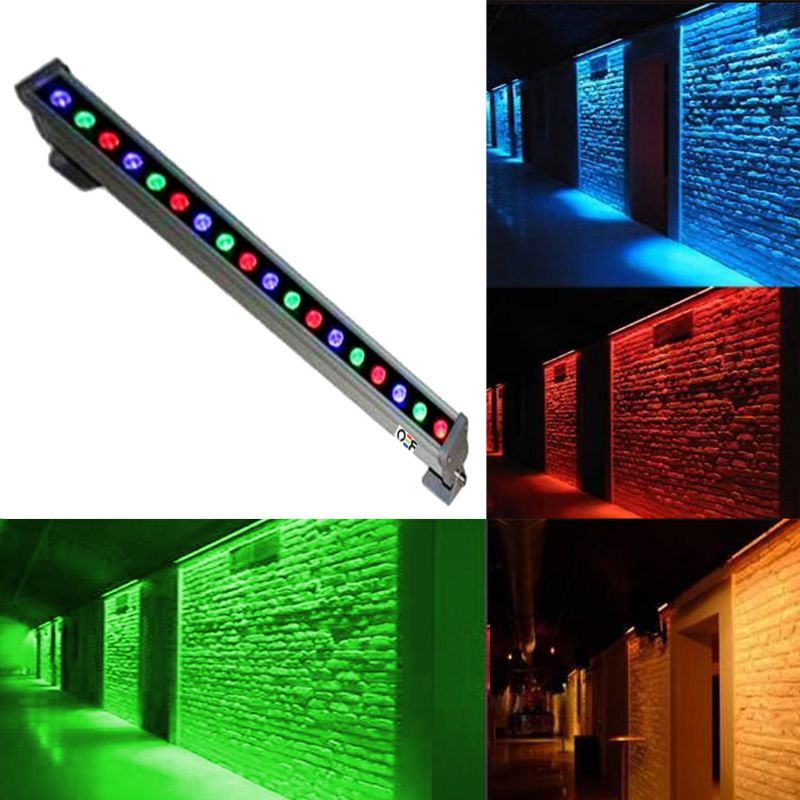

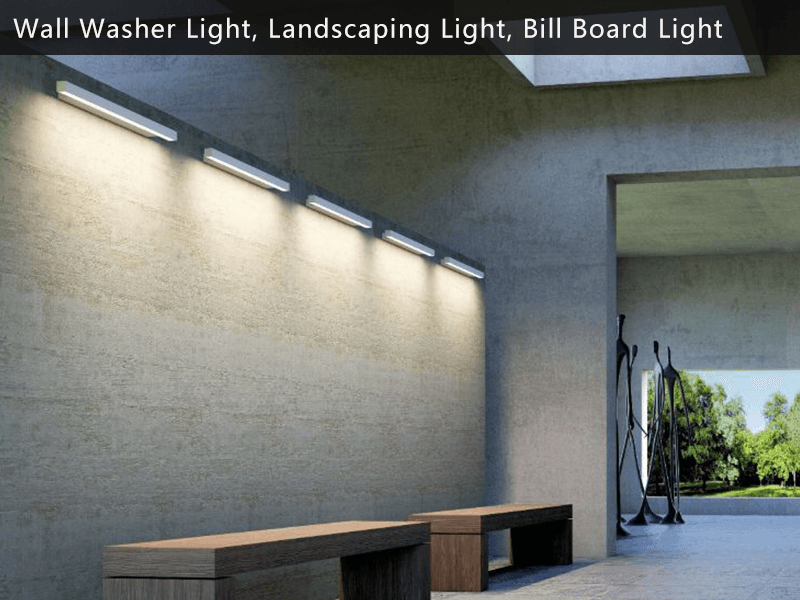

3. Widely used in wall washers, landscape lighting, and billboard lighting, its superior optical performance and flexible beam control provide efficient and precise solutions for a variety of lighting scenarios.

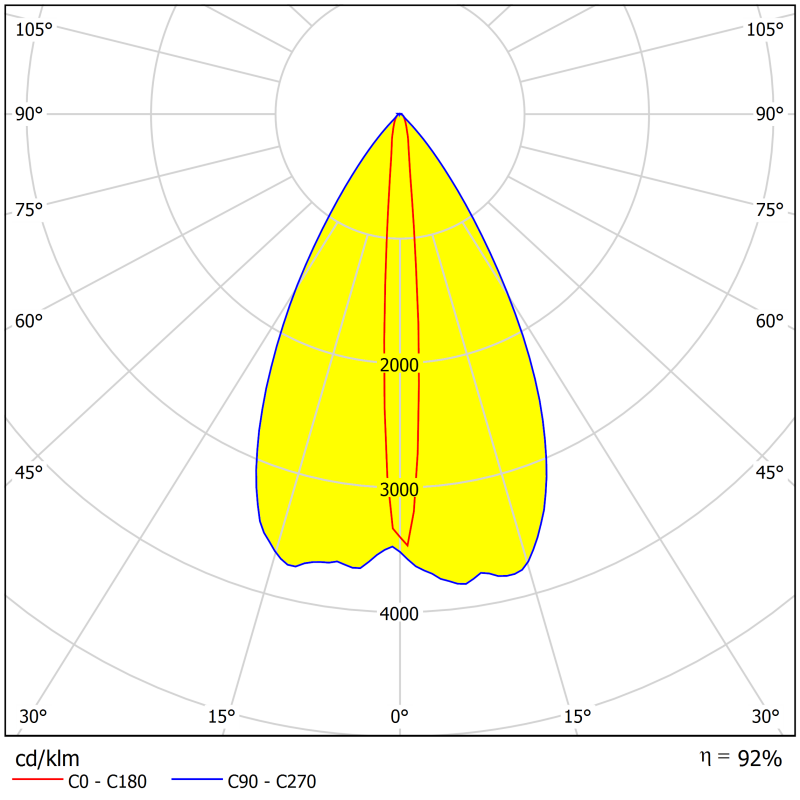

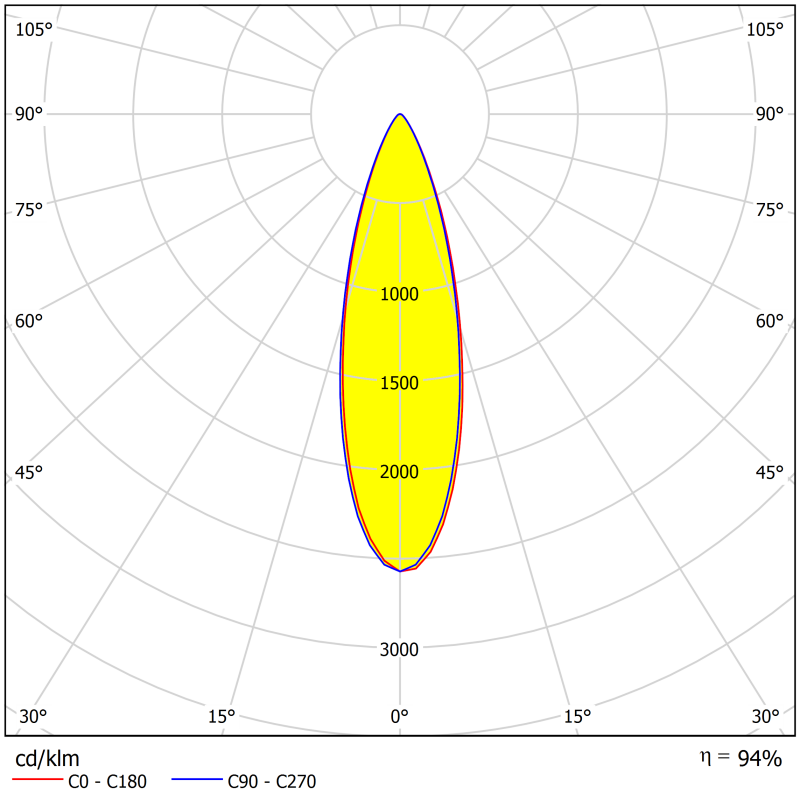

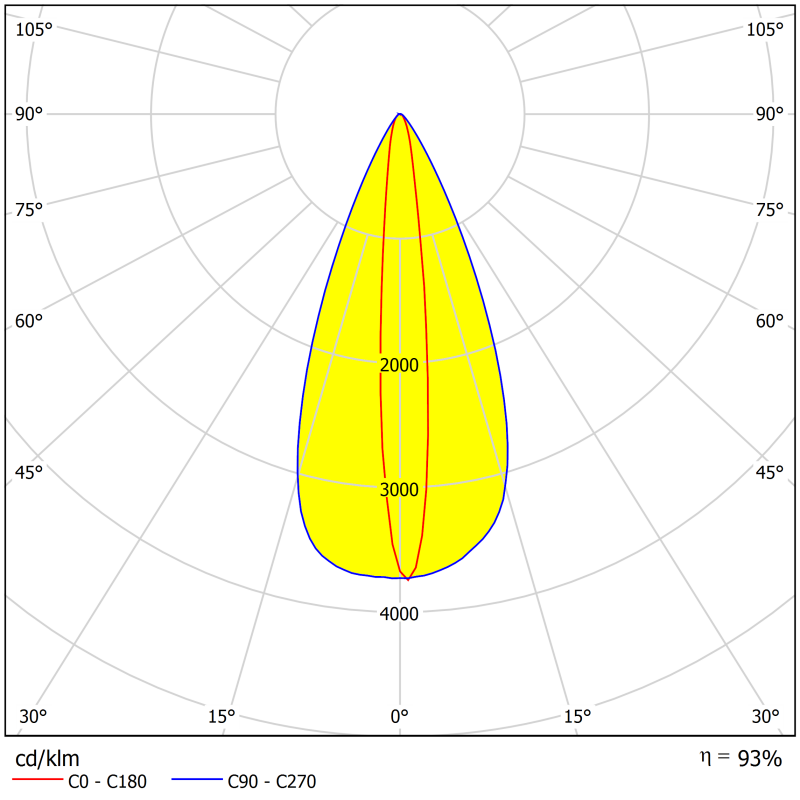

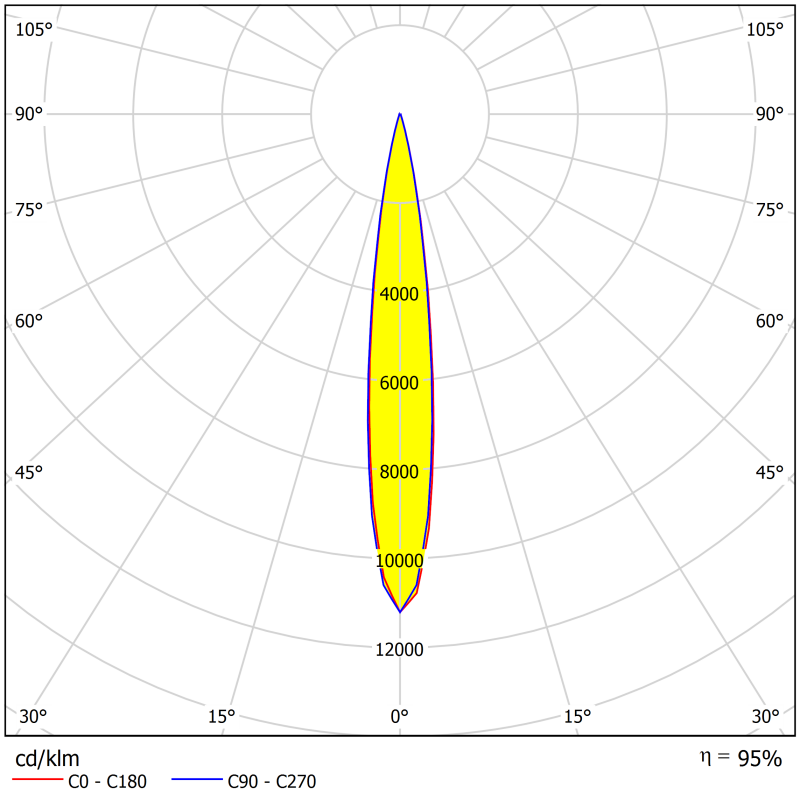

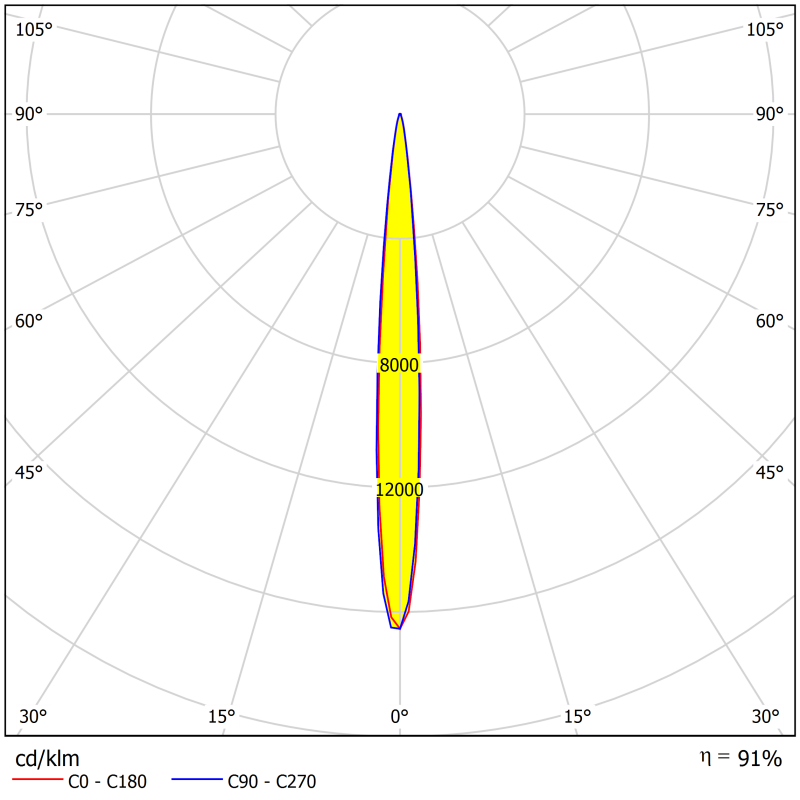

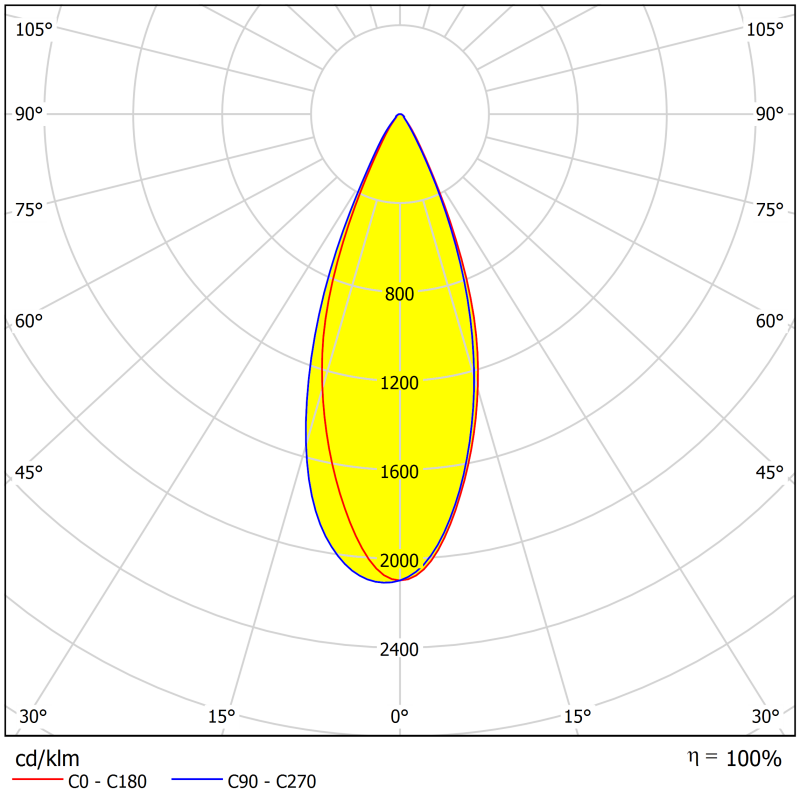

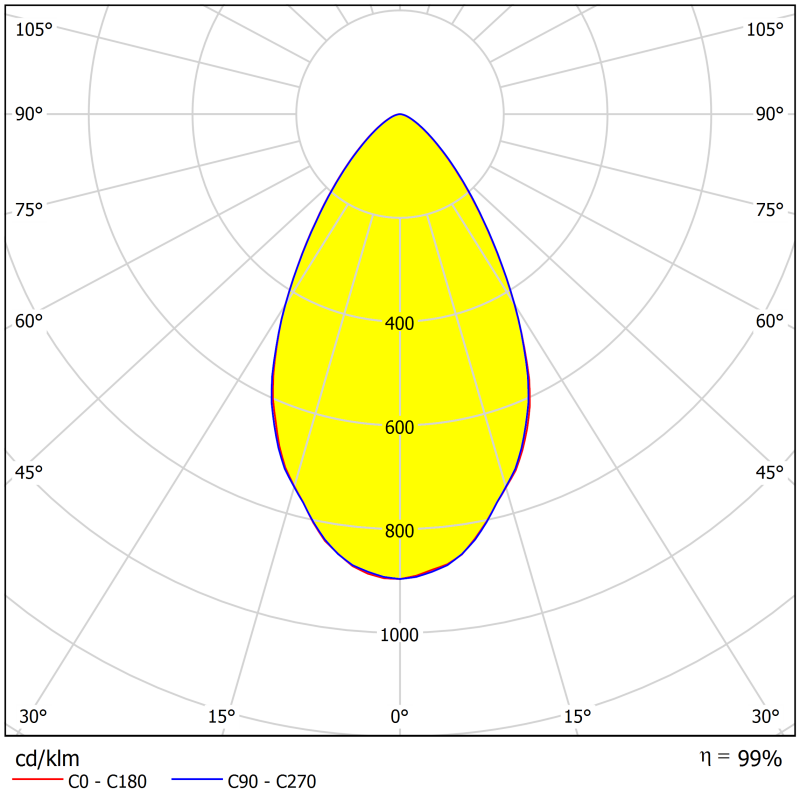

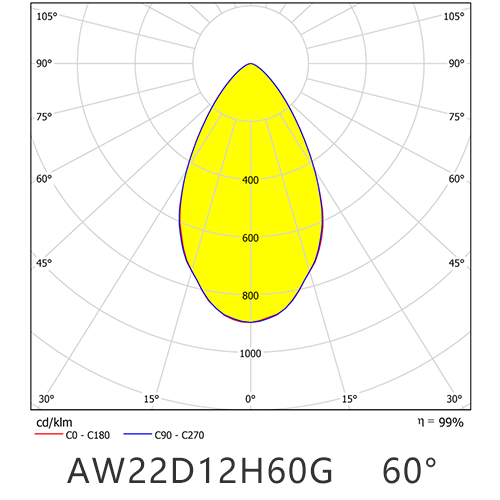

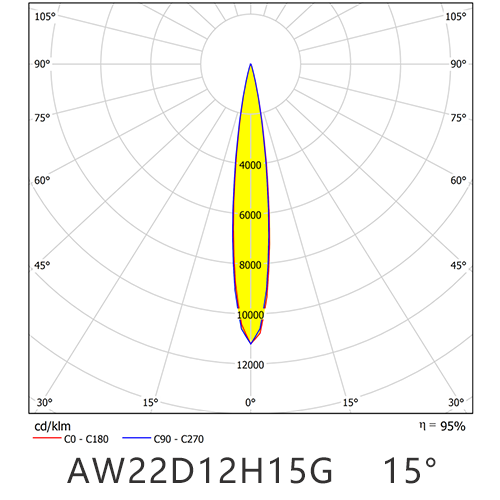

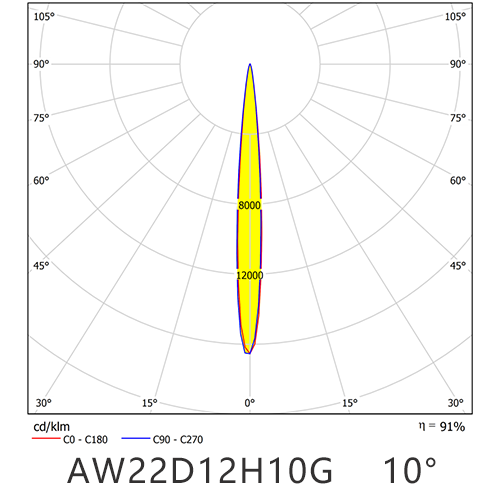

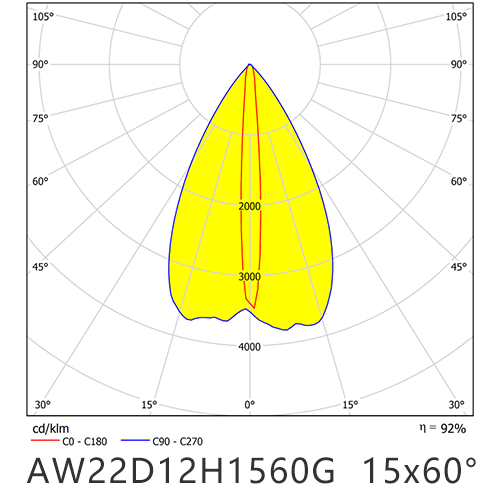

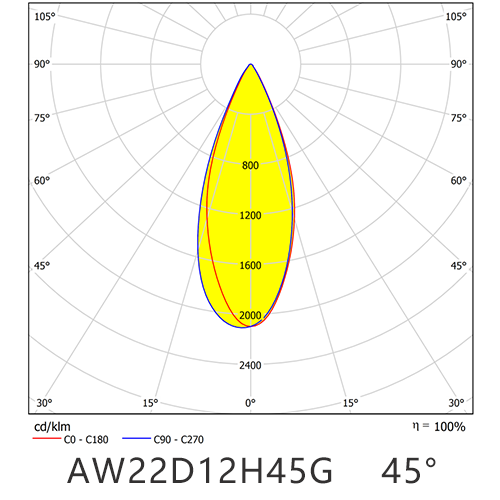

Distribution

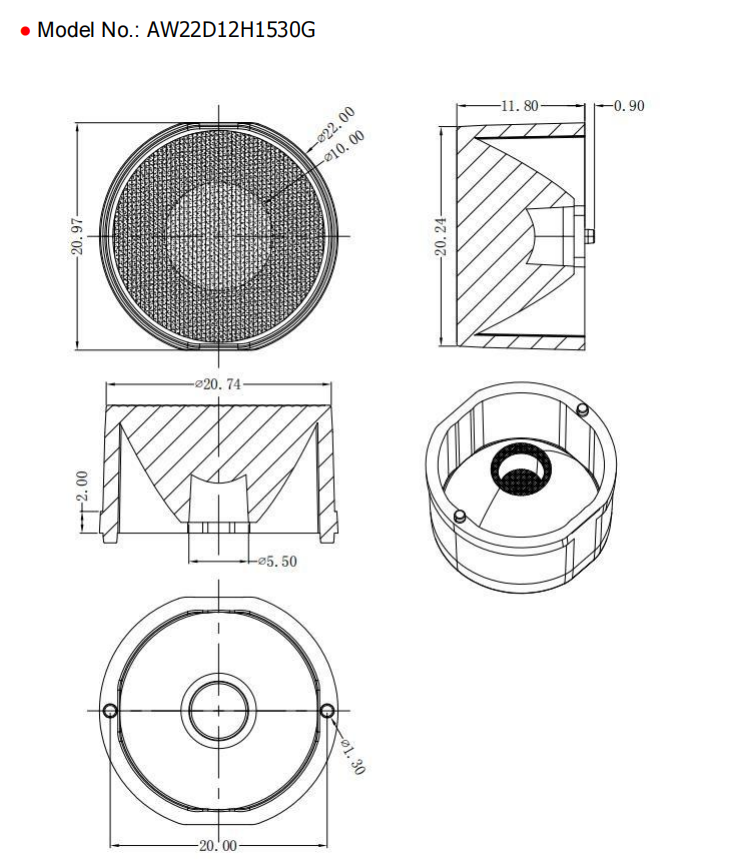

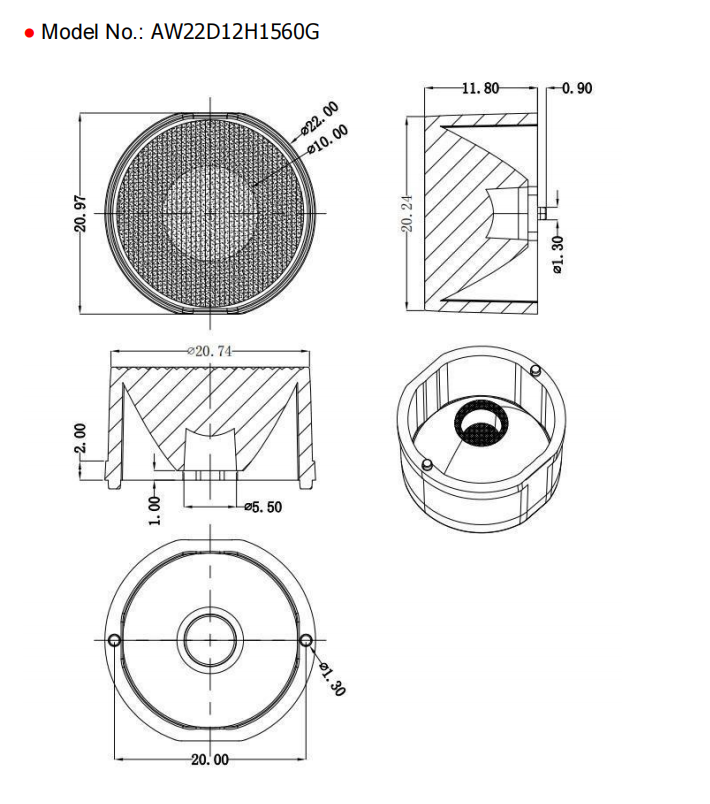

Specifications
| Model: | AW22D12H10G/15G/30G/45G/60G/1530G/1545G/1560G |
| Diameter: | 22.0mm |
| Height: | 12.7mm |
| Angle: | 10°,15°,30°,45°,60°,15x30°,15x45°,15x60° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Type | 3030LED,3535LED,5050LED |
| Lighting applications | Wall Washer Light, Landscaping Light, Bill Board Light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
