Model: AJST50D4LED15110G
Diameter: 50x50mm
Height: 12.7mm
Angle: 15x110°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: Street lighting ,High bay lighting
1.Lightweight Design: Lighter than glass, easy to install, reducing transportation and labor costs.
2.Excellent Compatibility: Standard 2x2-inch (50x50mm) size fits most high bay light modules, with customizable optical solutions available.
Distribution
Specifications
| Model: | AJST50D4LED15110G |
| Diameter: | 50x50mm |
| Height: | 12.7mm |
| Angle: | 15x110° |
| Material： | PMMA |
| Transmittance： | 93% |
| LED Type | 3535LED |
| Lighting applications | Street lighting ,High bay lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8

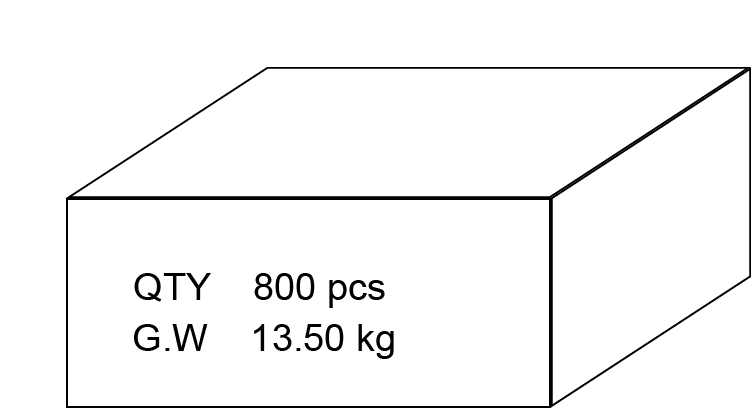

Packaging
Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1.Lightweight Design: Lighter than glass, easy to install, reducing transportation and labor costs.
2.Excellent Compatibility: Standard 2x2-inch (50x50mm) size fits most high bay light modules, with customizable optical solutions available.
ASAHI OPTICS AJST50D4LED15110G Drawing.dwg
ASAHI OPTICS AJST50D4LED15110G Drawing.pdf
ASAHI OPTICS AJST50D4LED15110G.ies
ASAHI OPTICS AJST50D4LED15110G.stp
