Model: AML21D14H1515G
Size: Ø21mm
Height: 14mm
Angle: 15x15°
Material: PC
Transmittance: >90%
LED Type: 2835, 3030, 5050LED
Lighting Applications: Flood light, in-ground light, underwater light, wall washer

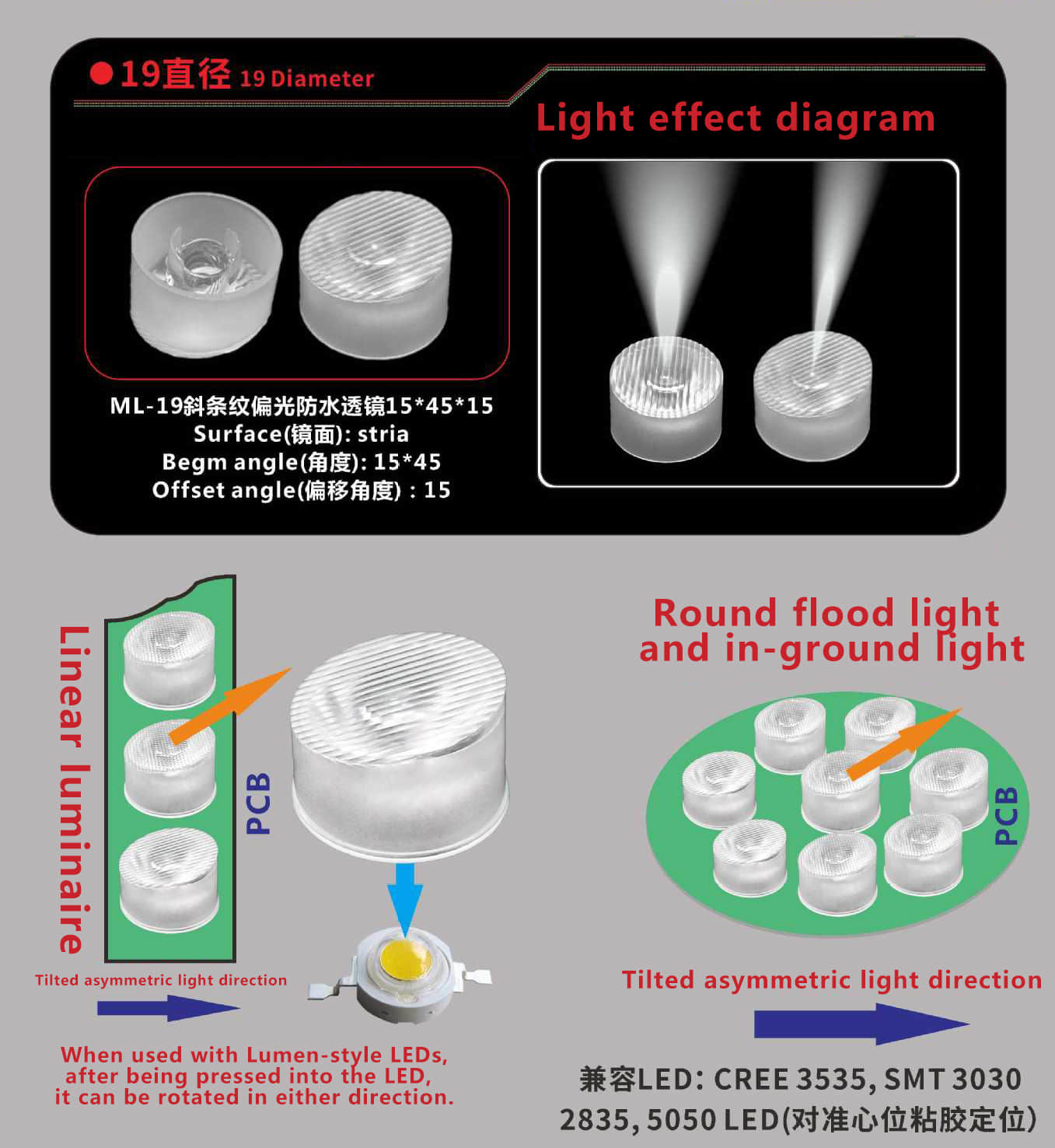

1. 15°×15° narrow-angle asymmetric light distribution, delivering an angled oblique lighting effect that precisely illuminates the target area while minimizing light spillage.
2. PC waterproof material with >90% transmittance, compatible with 2835/3030/5050 LEDs.
3. Suitable for floodlights, in-ground lights, underwater lights, and wall washers, meeting the demands of precision wall washing or accent lighting in harsh outdoor environments.
Distribution

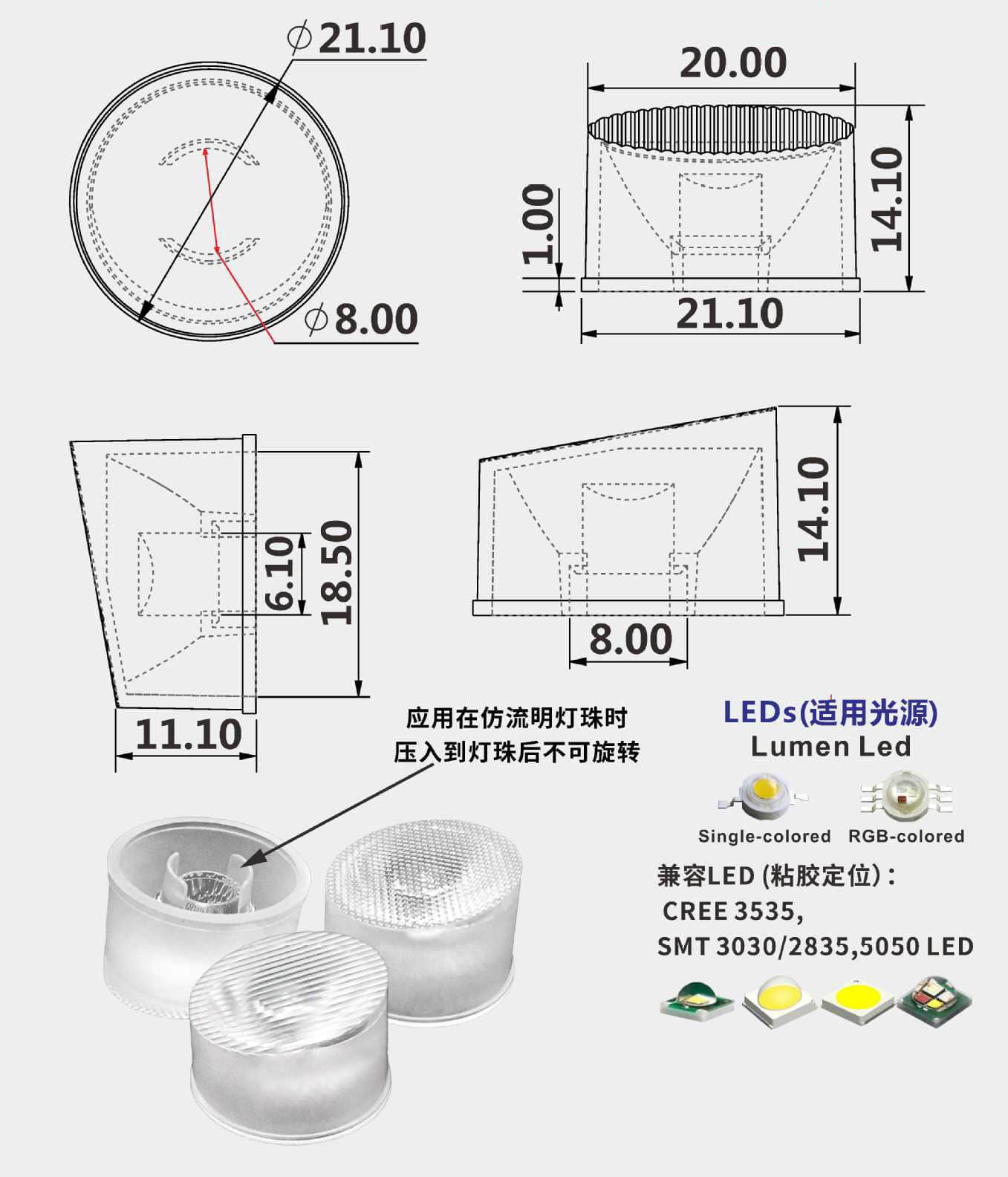

Specifications
| Model: | AML21D14H1515G |
| Size: | Ø21mm |
| Height: | 14mm |
| Angle: | 15x15° |
| Material： | PC |
| Transmittance： | >90% |
| LED Type | 2835, 3030, 5050LED |
| Lighting applications | Flood light, in-ground light, underwater light, wall washer |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
