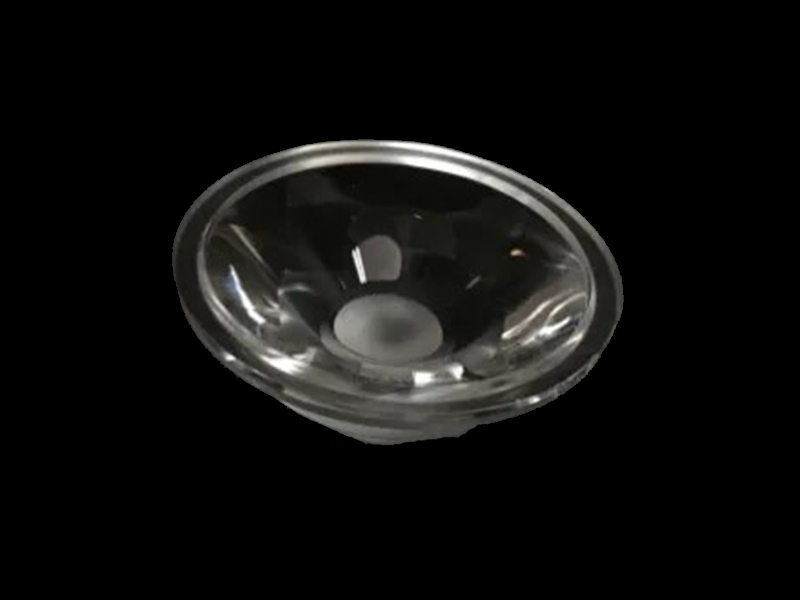

60mm Cob Led Optical Led Lens 15 30 60 Degree

60mm Cob Led Optical Led Lens 15 30 60 Degree

Model: ADCOB6028D

Diameter: 60.0mm

Height: 28.0mm

Angle: 15°; 30°; 60°

Material: PC

Transmittance: 88%

LED Type: COB LED

Lighting Applications: PAR lighting,Spot Light,Down Light

1, 60mm Cob Led Optical lens can be designed to produce a narrow spot, medium flood, or wide flood beam, depending on the desired application.

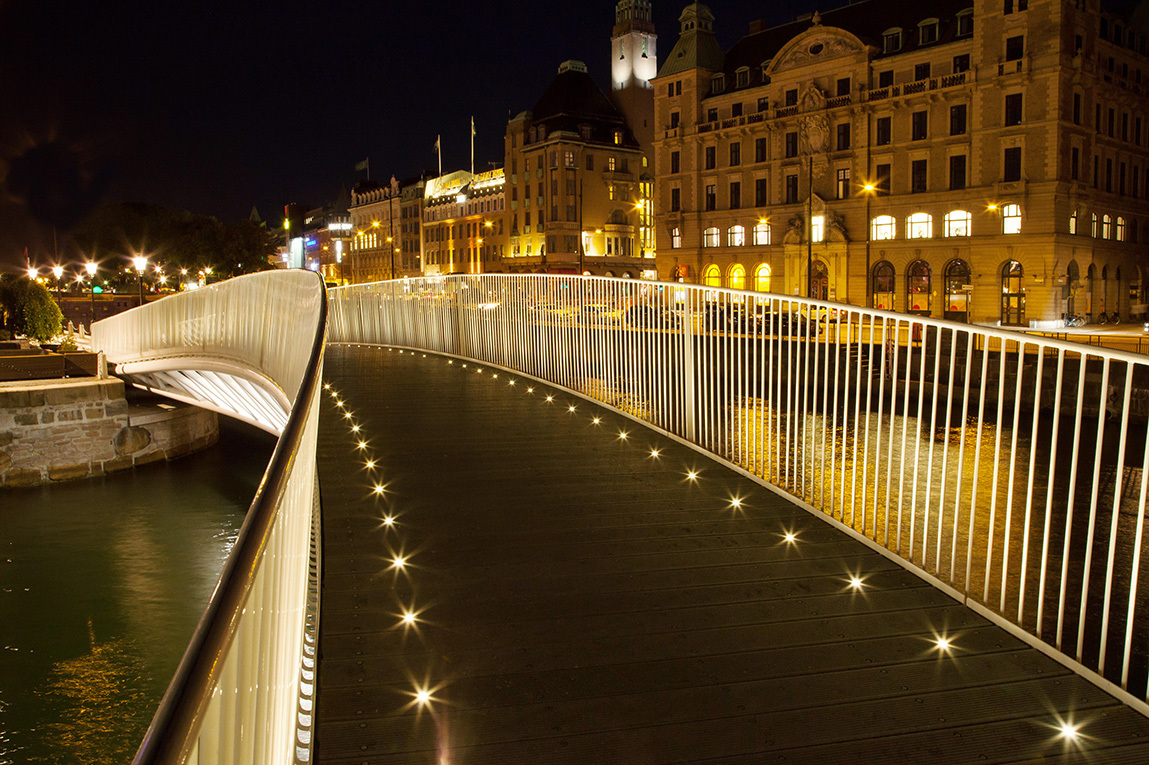

2, COB lenses find applications in track lighting systems, where multiple COB LED modules are mounted on a track. The lenses are used to control the light distribution and beam angle of each individual COB LED module. This allows for precise illumination of specific areas or objects along the track, such as in retail stores, galleries, or museums.

3, COB lenses find extensive use in retail lighting, where highlighting products and creating attractive displays are crucial. The lenses help shape the light beam to evenly illuminate merchandise on shelves, in showcases, or in display windows. They allow for precise spotlighting, accent lighting, or general ambient lighting to enhance the shopping experience.

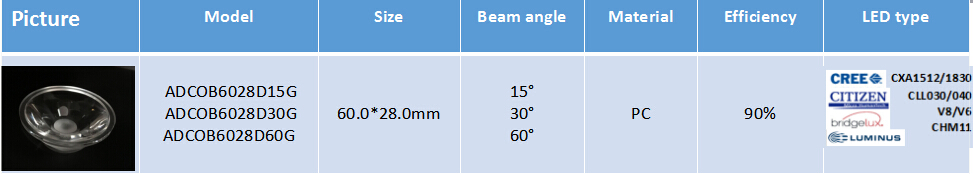

Specifications

Model:	ADCOB6028D
Diameter:	60.0mm
Height:	28.0mm
Angle:	15°,30°,60°
Material：	PMMA
Transmittance：	>93%
LED Applications	COB LED
Lighting applications	PAR lighting, Spot Light, Down Light

20160923210692789278

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
