Model: AJST175D60LEDT2M
Diameter: 175mm
Height: 7.30mm
Angle: Type II
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street lighting
1. 60LEDs Street Lighting Lens
2. High Efficiency 60in1 Optics Optimized for 5050 LEDs, delivering powerful lumen output and uniform illumination for street lighting.
3. Ideal for roadways, highways, and urban lighting projects requiring high-performance LED optics.

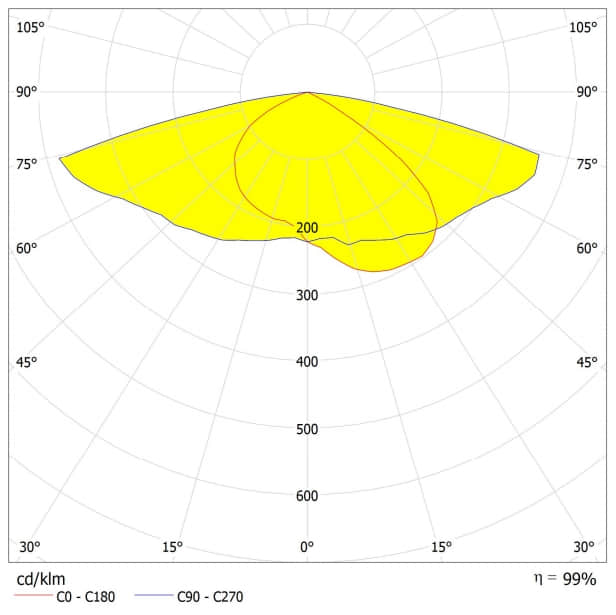

Distribution
Specifications
| Model: | AJST175D60LEDT2M |
| Diameter: | 175mm |
| Height: | 7.30mm |
| Angle: | Type II |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
