24in1 Module Lens 3030LED Outdoor Lighting Lens T2M-E

Model: ALST50D24LEDT2M-E

Diameter: 50.0mm+50.00mm

Height: 1.85mm

Angle: T2M-E

Material: PC

Transmittance: >93%

LED Type: "3030"LED

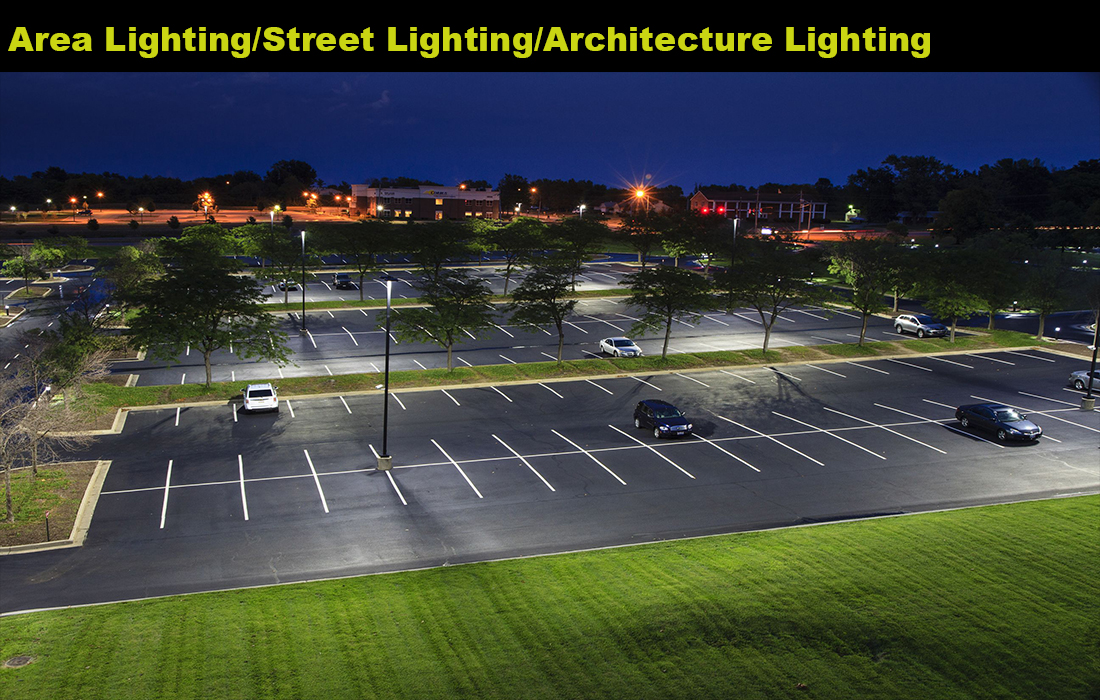

Lighting Applications:

1. ALST50D24LEDT2M-B,T2M-C,T2M-D,T2M-E were of the same series, they have the same arrangement.

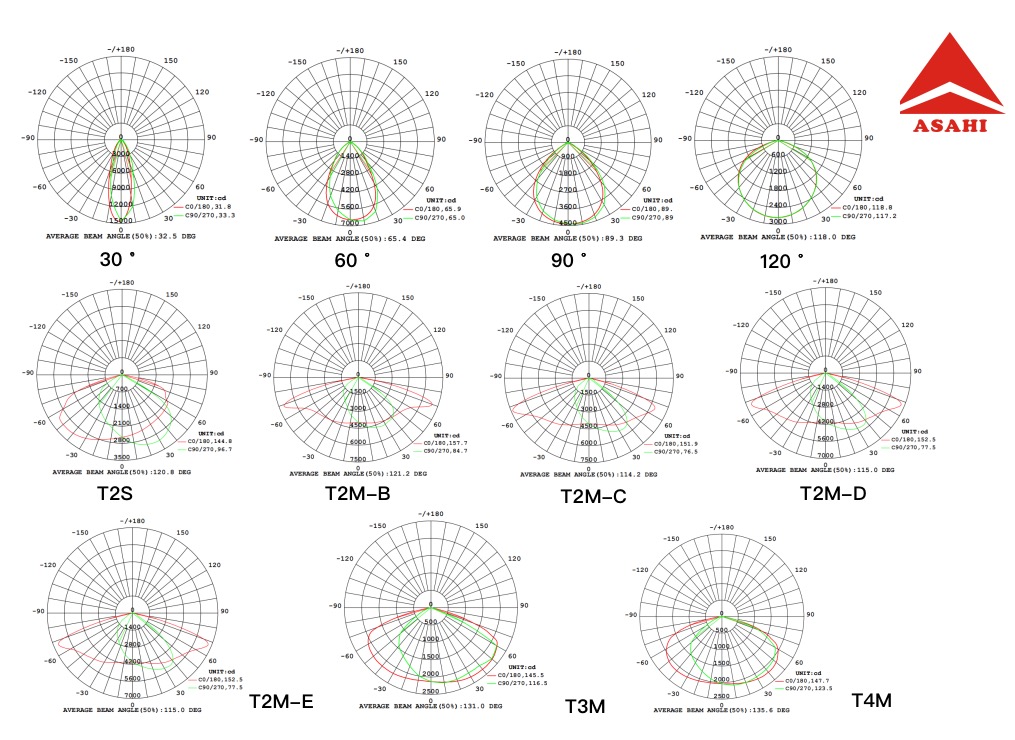

2. If you are interested in the various light distribution of Type II medium . That means they can replace each other.

3. This flexibility allows different lens models to be selected for different lighting needs without having to replace the entire lighting system. This makes lens selection and replacement more convenient and economical.

Specifications

Model:	ALST50D24LEDT2M-E
Diameter:	50.0mm+50.00mm
Height:	1.85mm
Angle:	T2M-E
Material：	PC
Transmittance：	>93%
LED Applications	"3030"LED
Lighting applications	Outdoor lighting

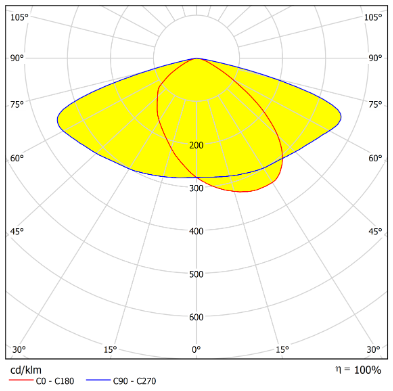

Light Distribution Curve

Street Lighting Lens 2 1

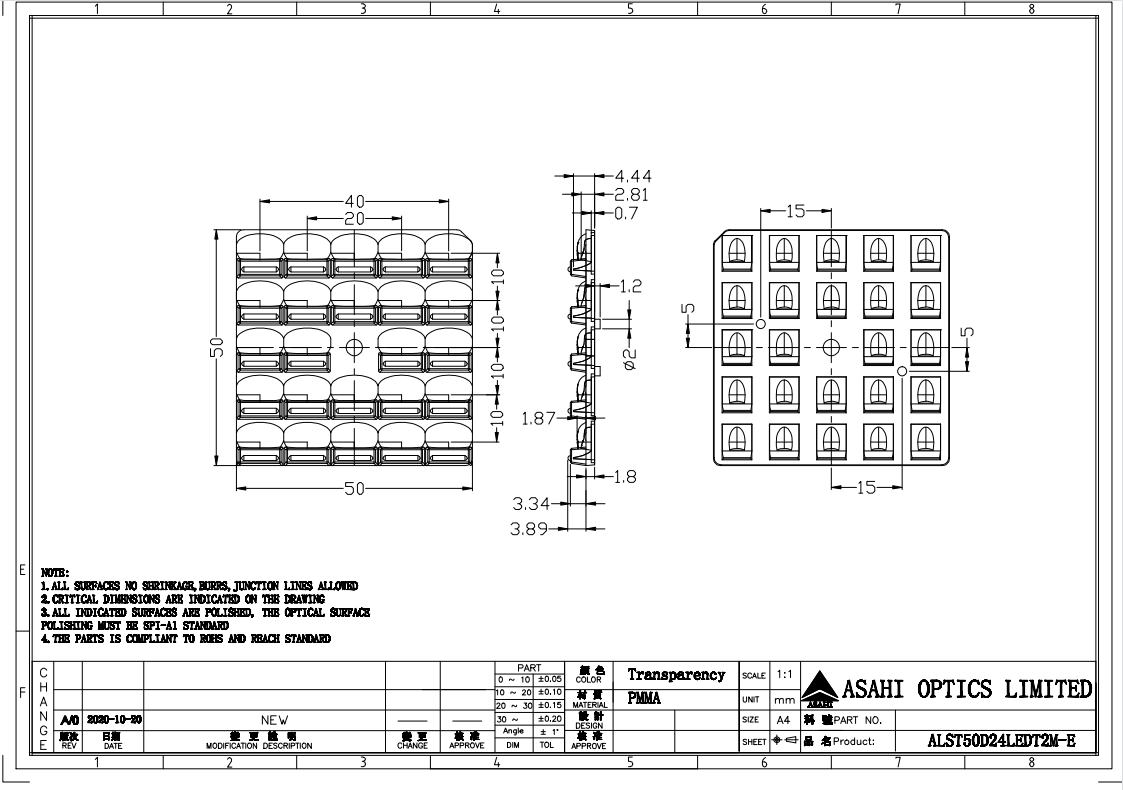

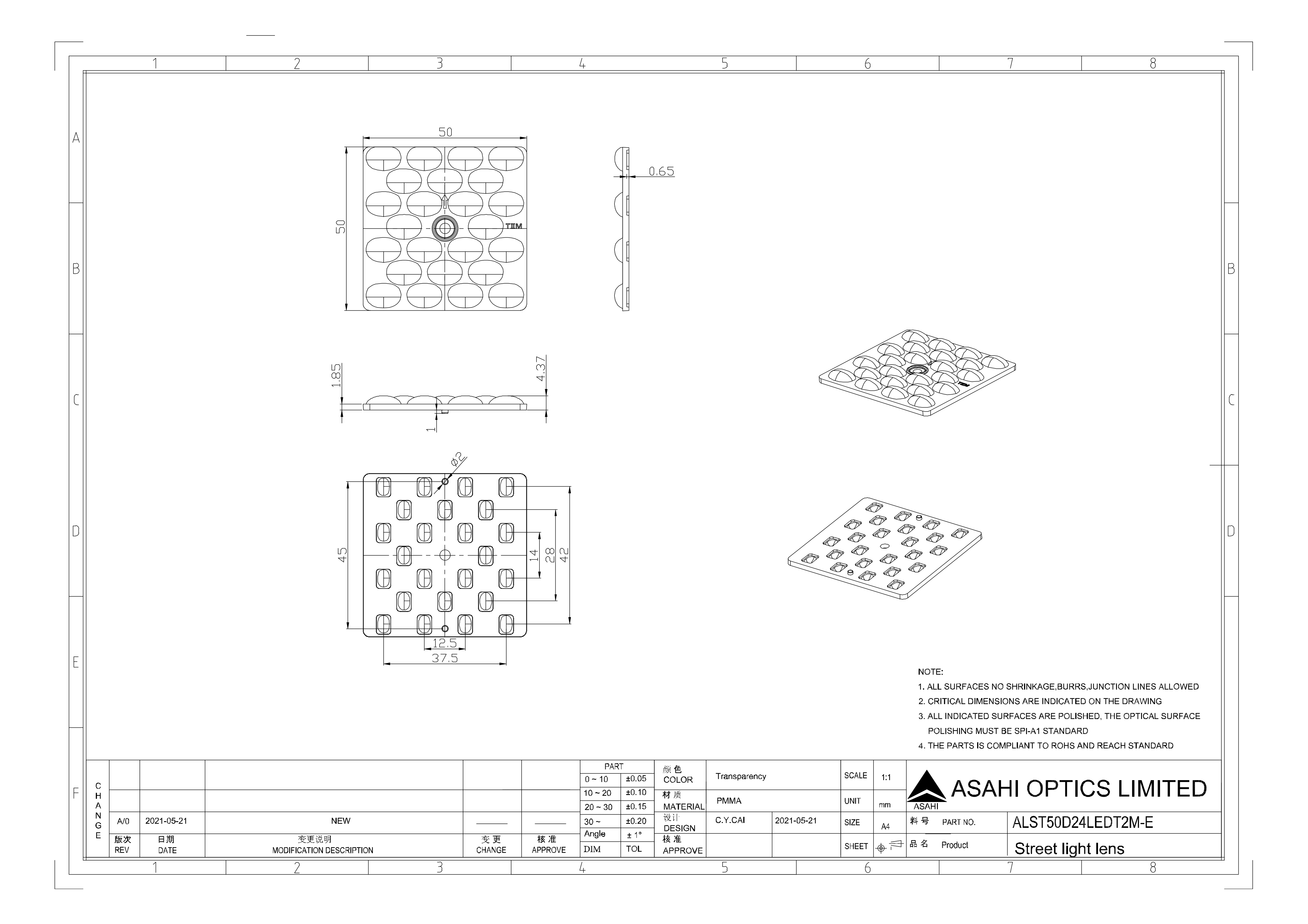

ALST50D24LEDT2M E 图纸

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
