Model: ALST173D12LED5050T2M
Diameter: 173x71.4mm
Height: 9.65mm
Angle: T2M Asymmetric
Material: PMMA
Transmittance: >93%
LED Type: 5050LED

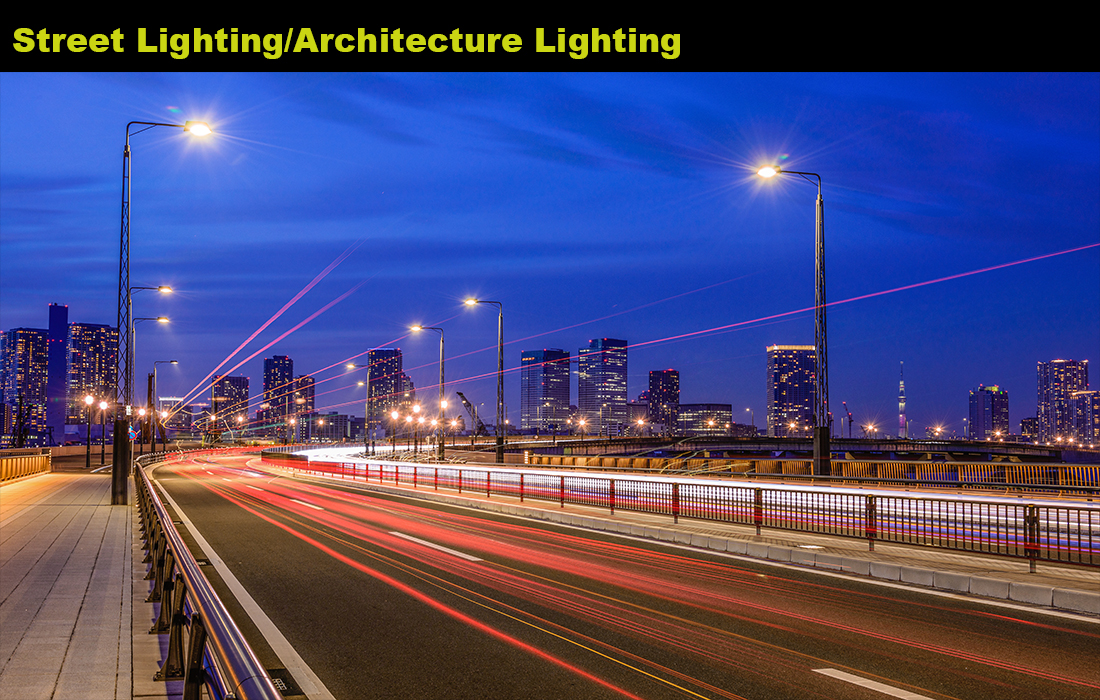

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 2x6 TypeII-Medium lens with high weather resistance IP66. The IP66 rating ensures excellent protection against water and dust, making the lens suitable for outdoor street lighting in various weather conditions.
2. The Type II-Medium light distribution pattern is tailored for street lighting, providing an even and efficient illumination along roads and streets.
3. Designed for maximum light transmission, optimizing energy efficiency and minimizing light loss.

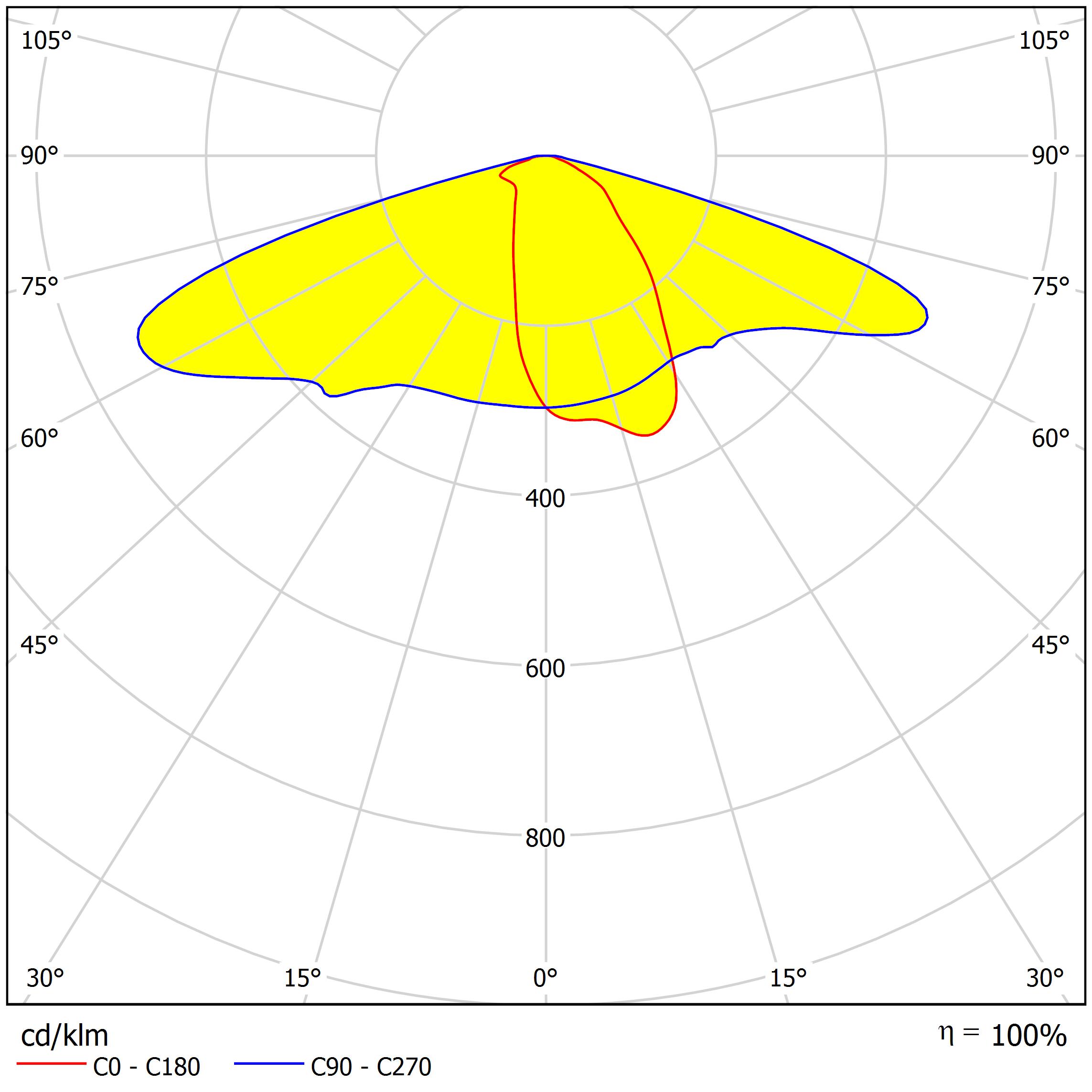

Distribution
Specifications
| Model: | ALST173D12LED5050T2M |
| Diameter: | 173x71.4mm |
| Height: | 9.65mm |
| Angle: | TypeII-Medium |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

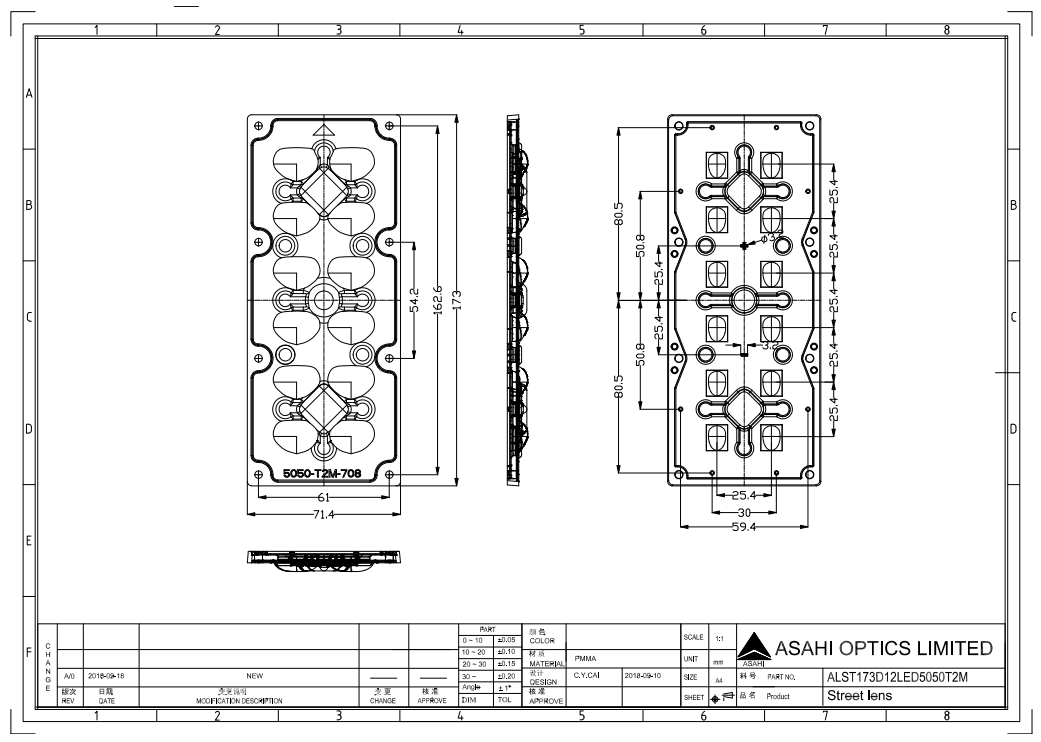

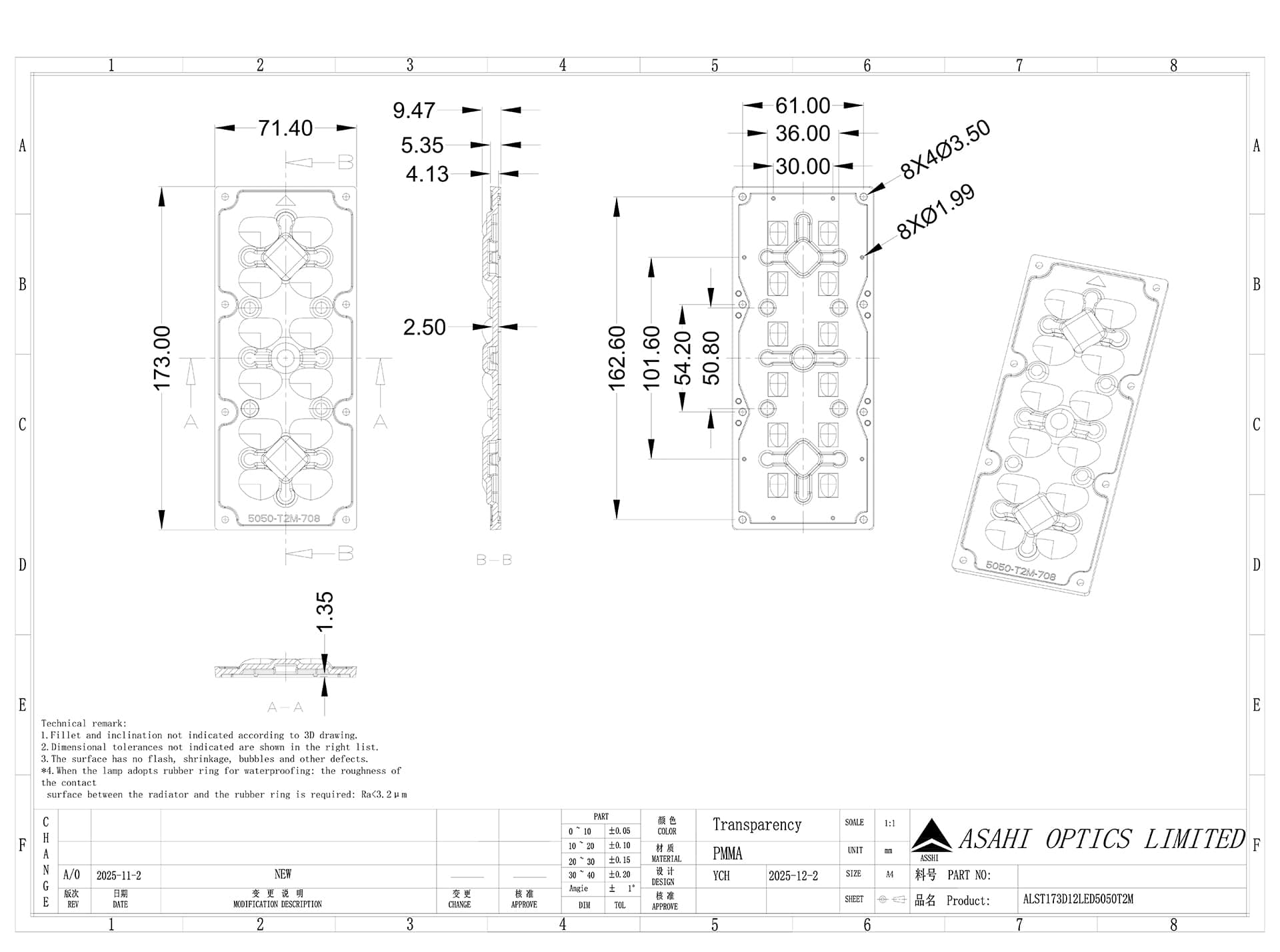

Asahi Optics ALST173D12LED5050T2M Drawing.dwg
Asahi Optics ALST173D12LED5050T2M Drawing.pdf
