Model: ALHB50D12LED3030T120G
Diameter: 50x50mm
Height: 3.07mm
Angle: 120°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030LED

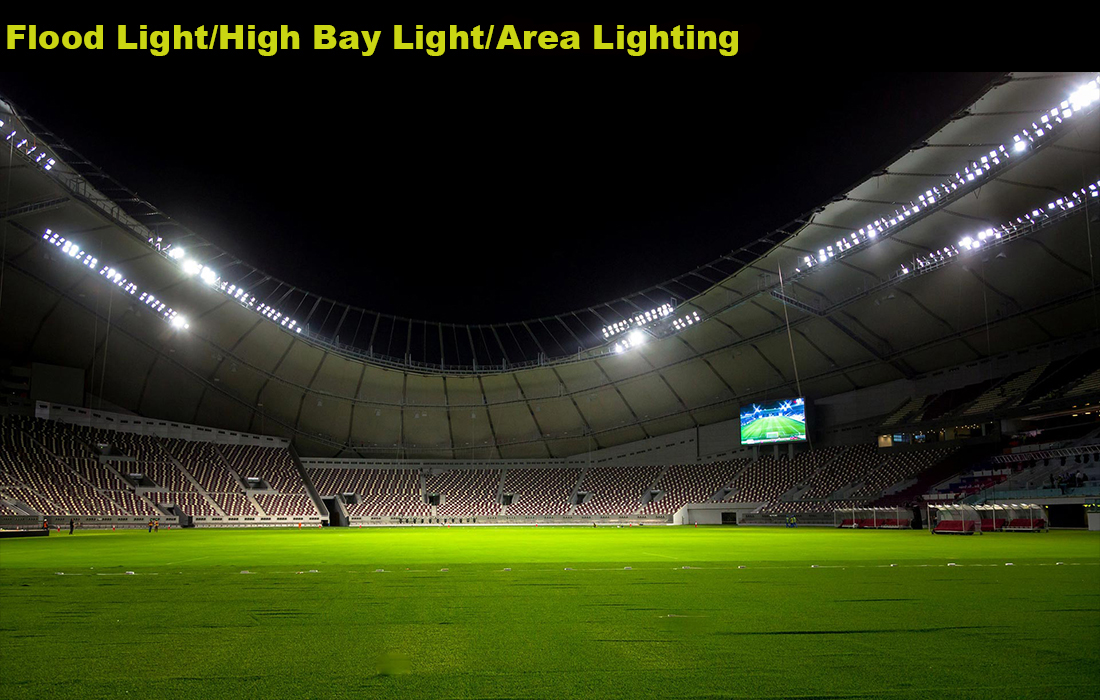

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. The 50x50mm 12LED Lens 120° features an ultra-wide 120-degree beam angle for area lighting.
2. 12LED lens was designed by 3030LED with low LED costs and high lighting efficiency for luminaires.

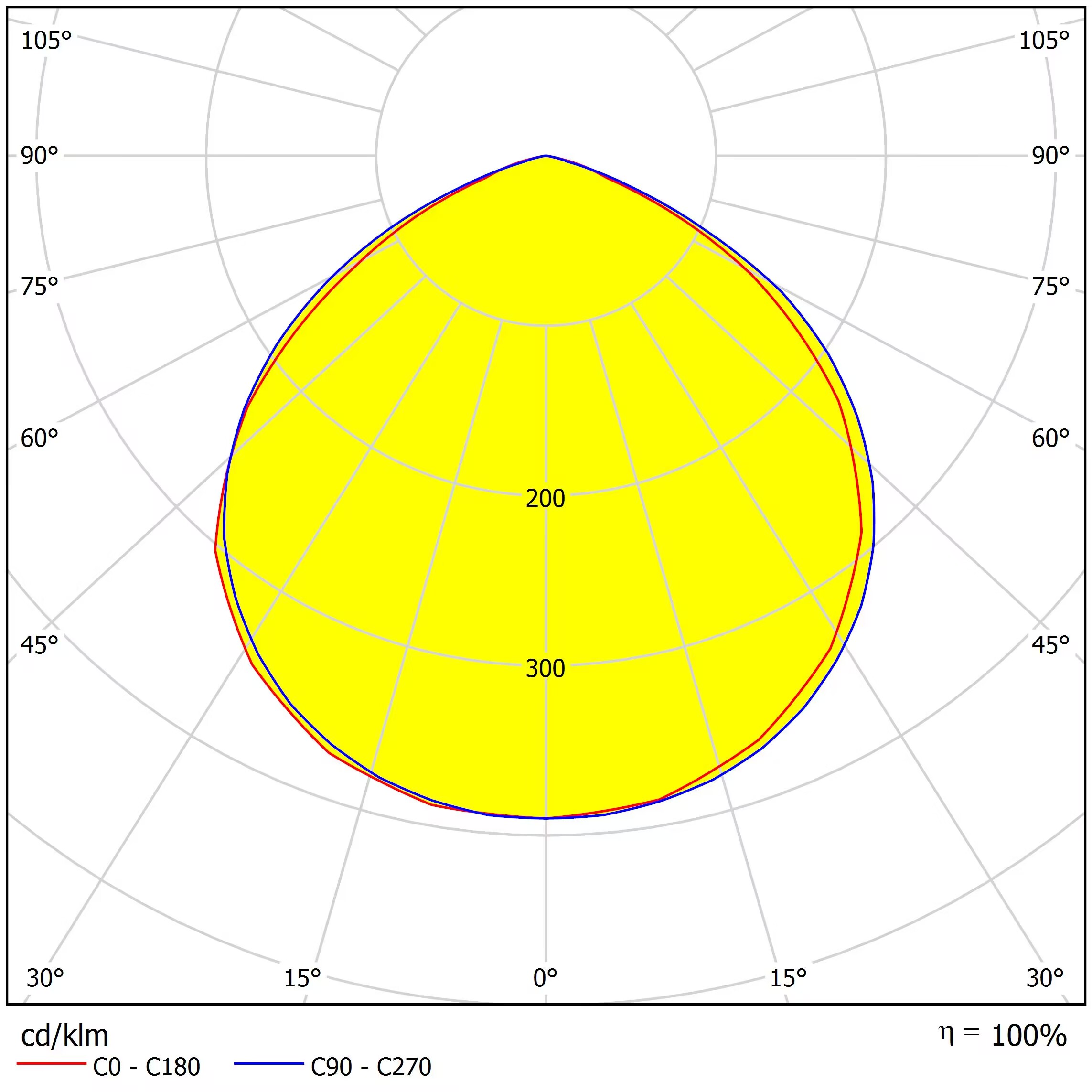

Distribution
Specifications
| Model: | ALHB50D12LED3030T120G |
| Diameter: | 50x50mm |
| Height: | 3.07mm |
| Angle: | 120° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Street lighting,Architecture lighting,High Bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB50D12LED3030T120G 3D Drawing.stp
ASAHI OPTICS ALHB50D12LED3030T120G Drawing.dwg
ASAHI OPTICS ALHB50D12LED3030T120G Drawing.pdf
ASAHI OPTICS ALHB50D12LED3030T120G lens IES.ies
