Model: ALHB135D24LED60G
Diameter: 135x100mm
Height: 7.95mm
Angle: 60°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3535/ 5050LED

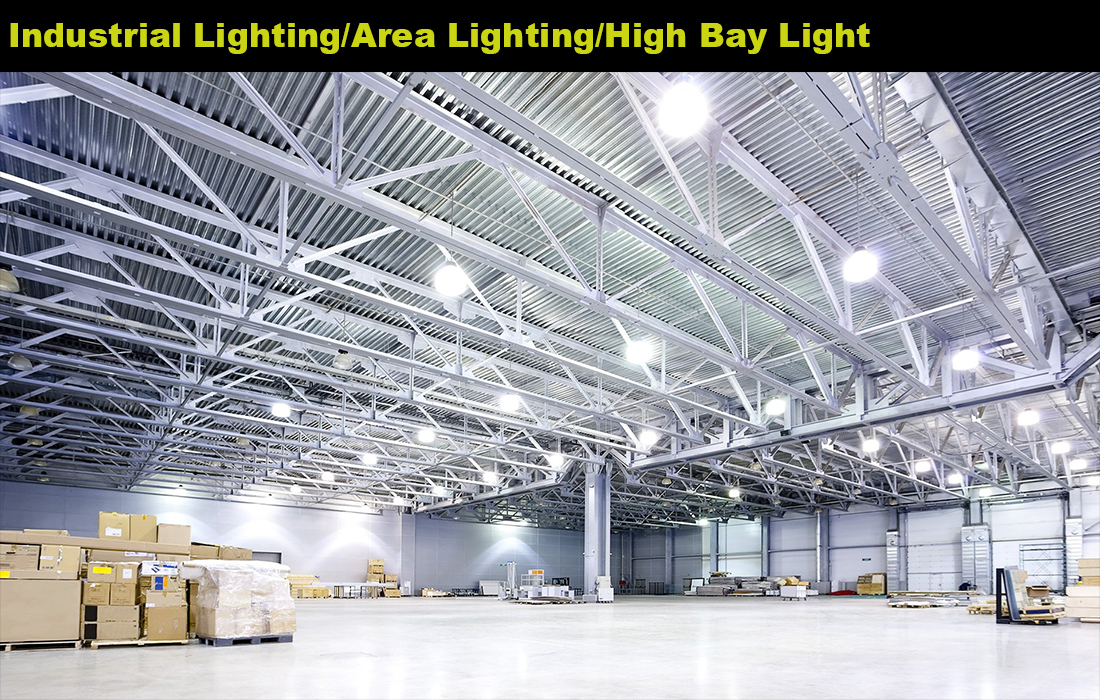

Lighting Applications: High Bay Lighting, Area Lighting
1. 4x6 IP66 lens features a frosted optical surface design, which not only helps in reducing yellowing but also ensures a more even light distribution.
2. It's made of high quality PC material with excellent high-temperature resistance,withstanding temperatures up to 120°C.
3. This lens can be adapted to accommodate various brands of 3535 and 5050 LEDs. such Lumileds/Seoul/Nichia/Cree/Osram etc.

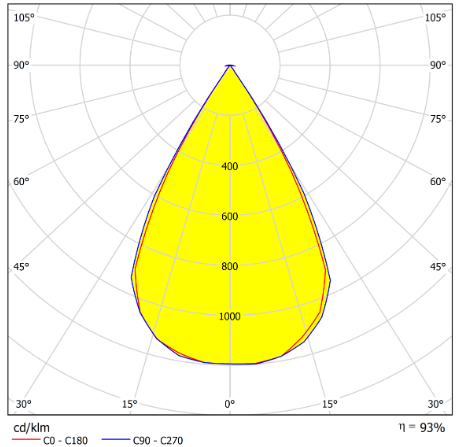

Distribution

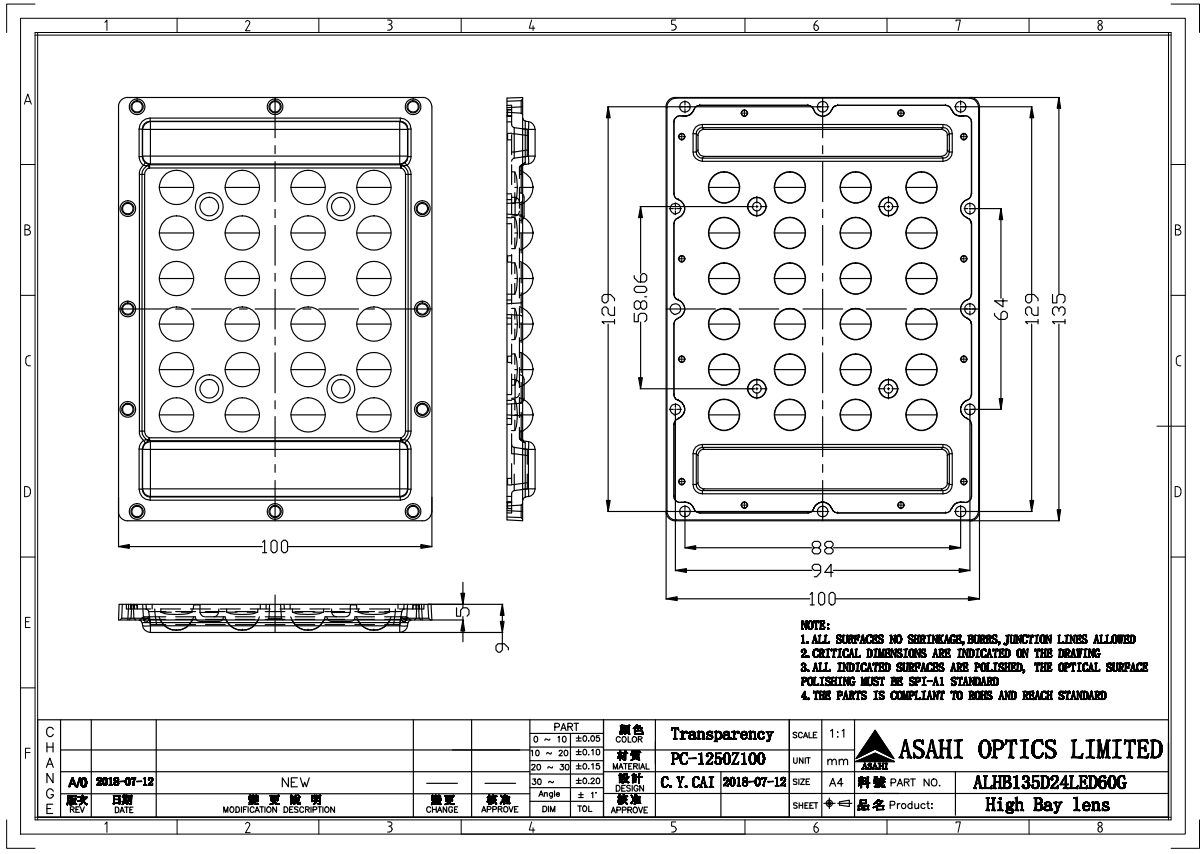

Specifications
| Model: | ALHB135D24LED60G |
| Diameter: | 135x100mm |
| Height: | 7.95mm |
| Angle: | 60° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3535/ 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ALHB135D24LED60G-Luxeon5050.ies
ALHB135D24LED60G-Seoul5050.ies
ALHB135D24LED60G-NICHIA NFMW488.ies
