Model: ALST173D12LED3535T3M
Diameter: 173x71.4mm
Height: 9.19
Angle: T3M Asymmetric
Material: PMMA
Transmittance: >93%
LED Type: 3535LED

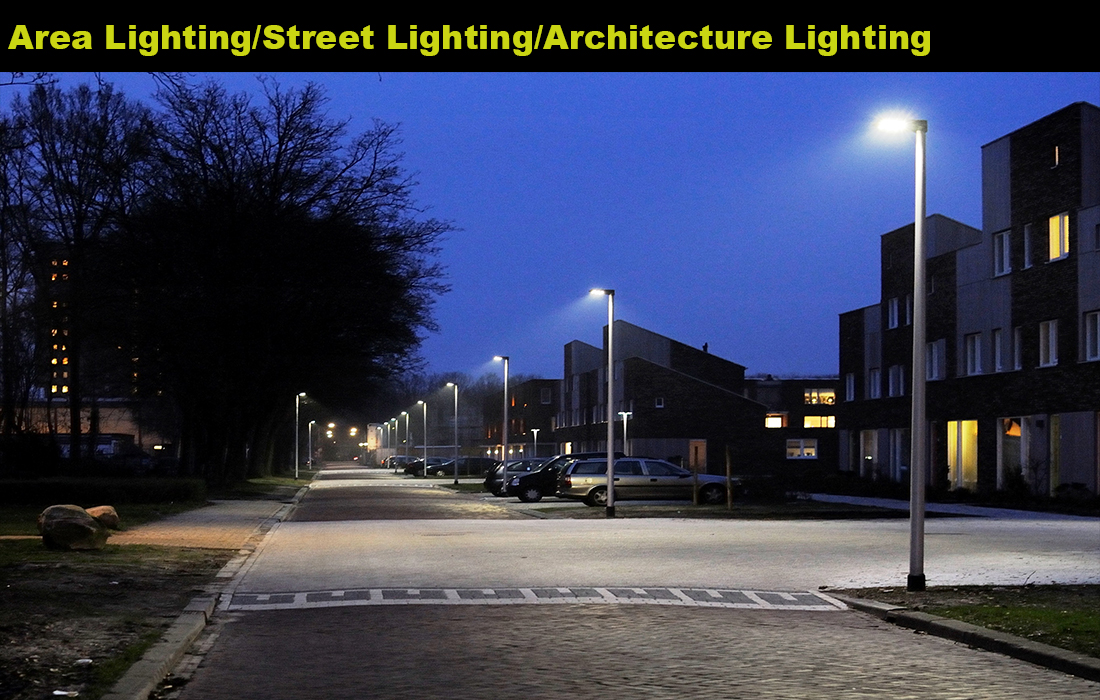

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting

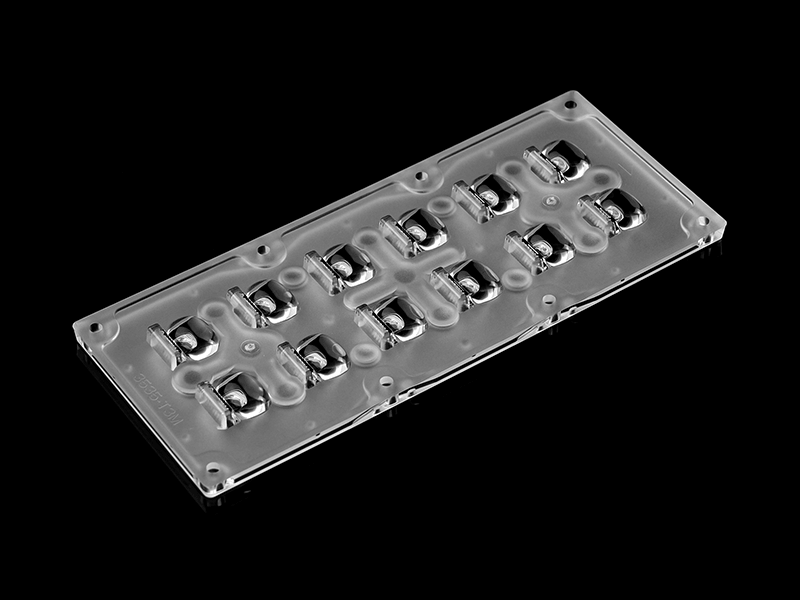

1. The design of the 2x6 Type III-Medium lens is professionally designed to provide precise illumination distribution, particularly suitable for street and large outdoor areas.
2. Its shape and optical characteristics ensure uniform lighting, enhancing visibility and safety.
3. Applicable to different outdoor settings, including street lighting, parks, and parking lots,providing an efficient lighting solution.

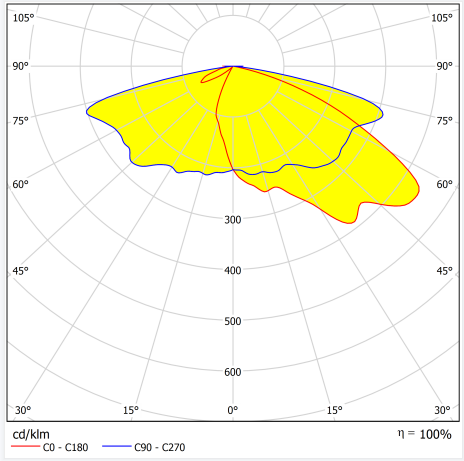

Distribution
Specifications
| Model: | ALST173D12LED3535T3M |
| Diameter: | 173x71.4mm |
| Height: | 9.19mm |
| Angle: | T3M Asymmetric |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 3535LED |
| Lighting applications | Street lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

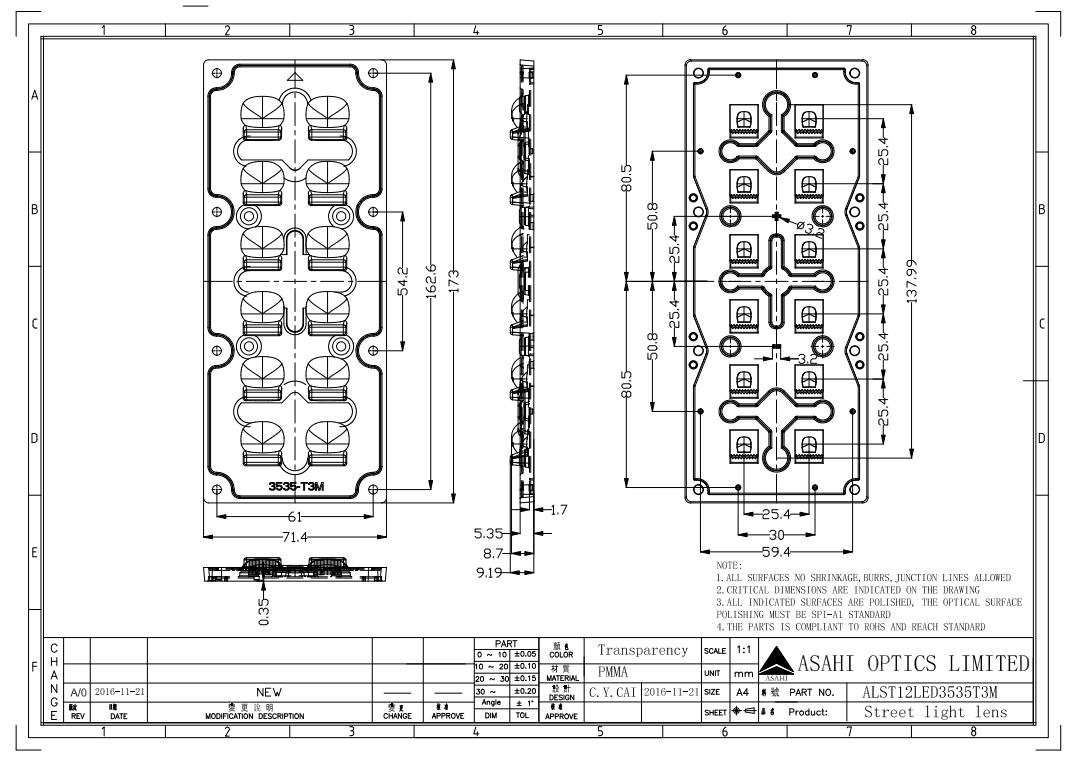

ASAHI OPTICS ALST173D12LED3535T3M Drawing.dwg
ASAHI OPTICS ALST173D12LED3535T3M Drawing.pdf
