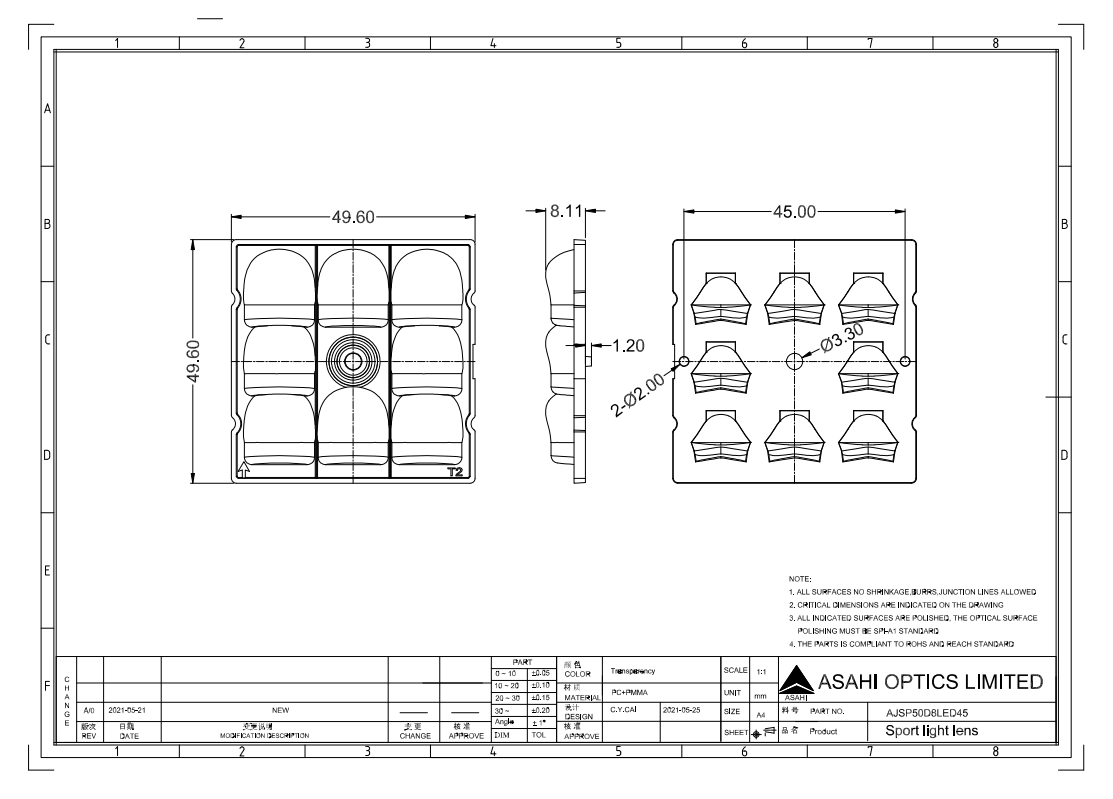

Model: AJSP50D8LED45G
Diameter: 50x50mm
Height: 8.11mm
Angle: 45°
Material: PC
Transmittance: >88%
LED Type: 5050LED

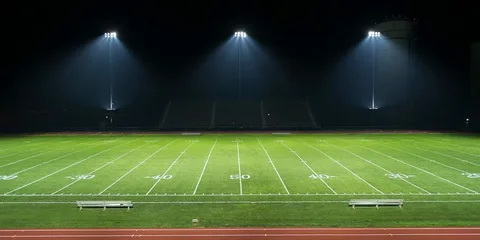

Lighting Applications: Sport Lighting
1. The 50x50mm 8LED Lens Asymmetric 45° features an advanced asymmetric beam design, providing narrow forward beams and illumination with uniform light distribution.
2. The 50x50mm 8LED Lens asymmetric beam angle ensures minimal light spillage and maximum efficiency, making it a reliable choice for sport lighting.

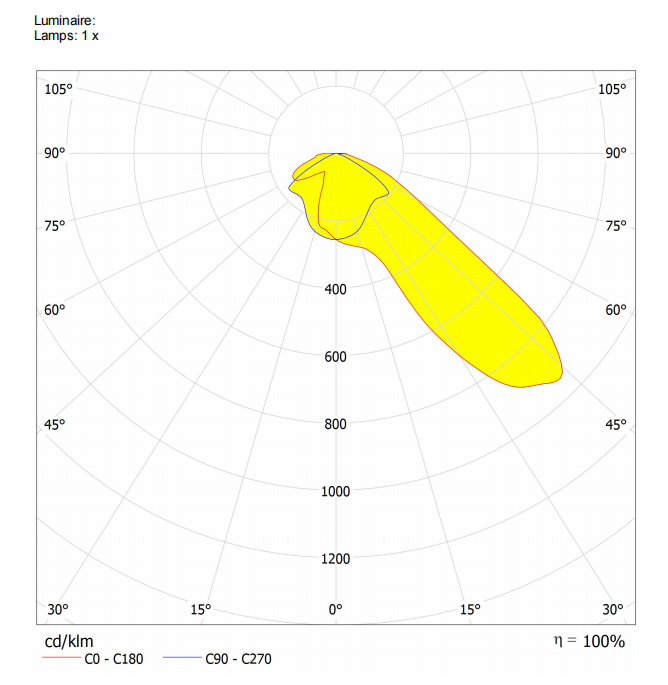

Distribution
Specifications
| Model: | AJSP50D8LED45G |
| Diameter: | 50x50mm |
| Height: | 8.11mm |
| Angle: | 45° |
| Material： | PC |
| Transmittance： | ＞88% |
| LED Type | 5050LED |
| Lighting applications | Sport Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 50x50mm 8LED Lens Asymmetric 45° features an advanced asymmetric beam design, providing narrow forward beams and illumination with uniform light distribution.
2. The 50x50mm 8LED Lens asymmetric beam angle ensures minimal light spillage and maximum efficiency, making it a reliable choice for sport lighting.
