Model: ALST173D12LEDT2WB
Diameter: 173x71.4mm
Height: 9.10mm
Angle: T2M With Backlight
Material: PMMA
Transmittance: >93%
LED Type: 5050LED

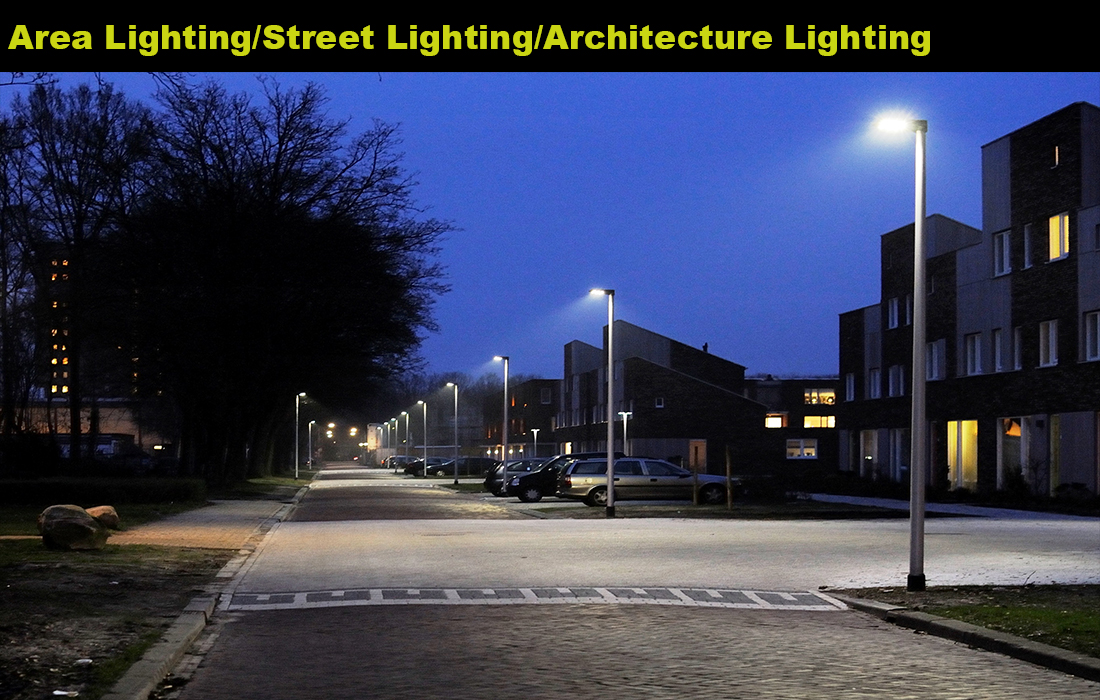

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 2x6 TypeII-Medium with backlight lens helps to increase the overall brightness of the streetlight, improving visibility in the surrounding environment and making it easier for pedestrians and drivers to perceive their surroundings.
2. This lens has an IP66 rating, providing excellent protection against dust and water ingress, making it suitable for various challenging environments.
3. It is made of high quality PMMA material,ensuring exceptional optical performance and durability.

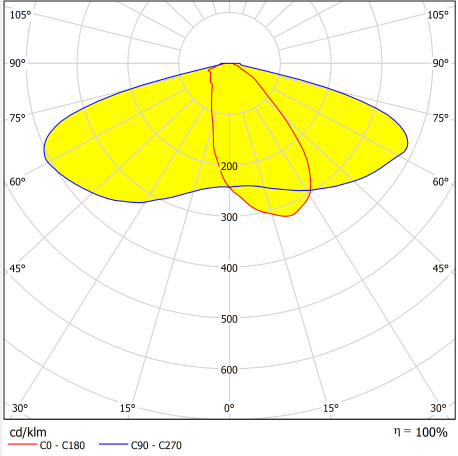

Distribution
Specifications
| Model: | ALST173D12LEDT2WB |
| Diameter: | 173x71.4mm |
| Height: | 9.10mm |
| Angle: | T2M With Backlight |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

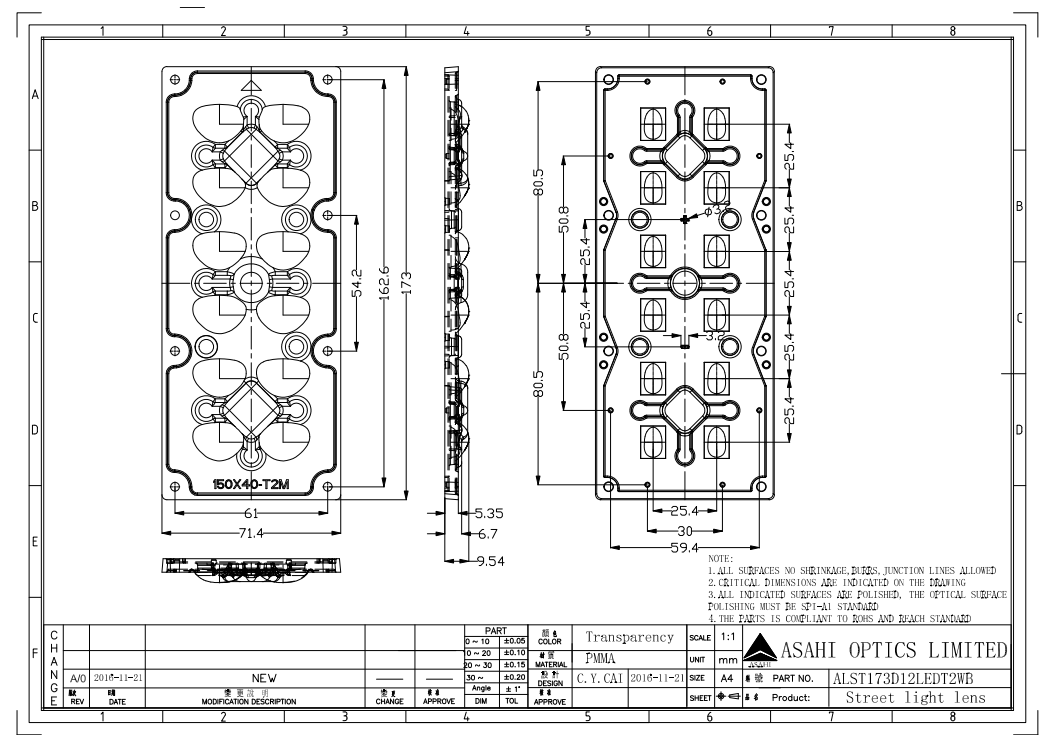

ASAHI OPTICS ALST173D12LEDT2WB Drawing.dwg
ASAHI OPTICS ALST173D12LEDT2WB Drawing.pdf
ASAHI OPTICS ALST173D12LEDT2WB-Lumileds5050 Dialux.pdf
