Model: ALHB195D48LED60G,90G
Diameter: 195mm
Height: 10.8mm
Angle: 60°,90°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030/ 3535LED

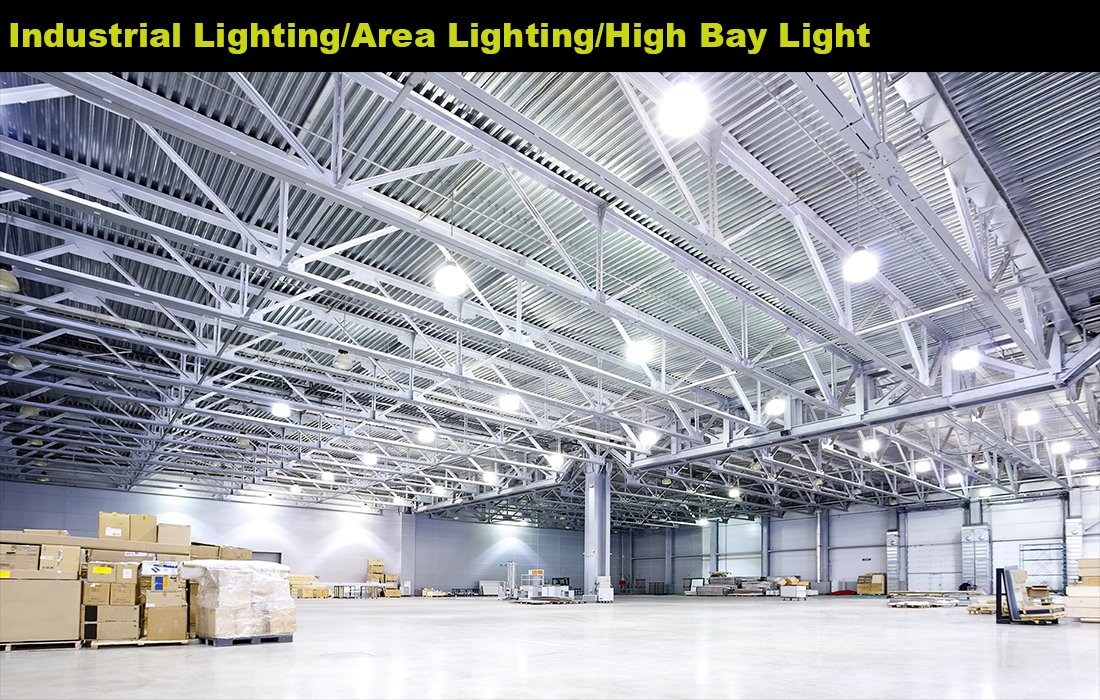

Lighting Applications: High Bay Lighting, Area Lighting
1.48LEDs UFO lens is designed for high bay lights with a power rating of 100W.
2.It is available in two beam angle options: 60 degrees and 90 degrees.

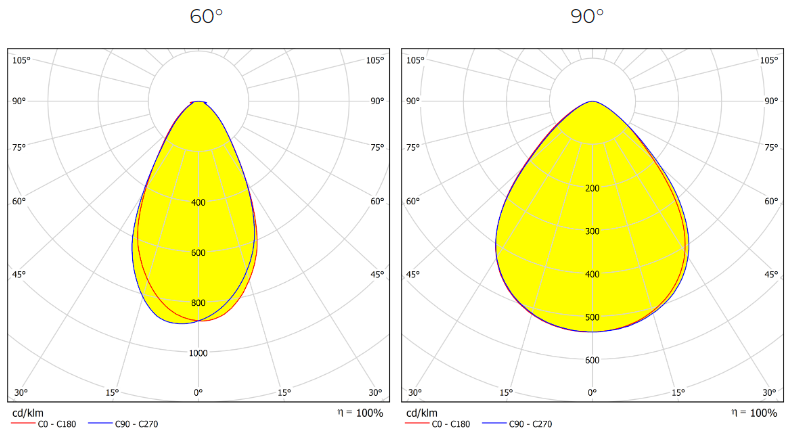

Distribution
Specifications
| Model: | ALHB195D48LED60G,90G |
| Diameter: | 195.0mm |
| Height: | 10.8mm |
| Angle: | 60 °, 90° |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >90% |
| LED Applications | 3030/ 3535LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB195D48LED60G,90G lens 3D drawing. STP

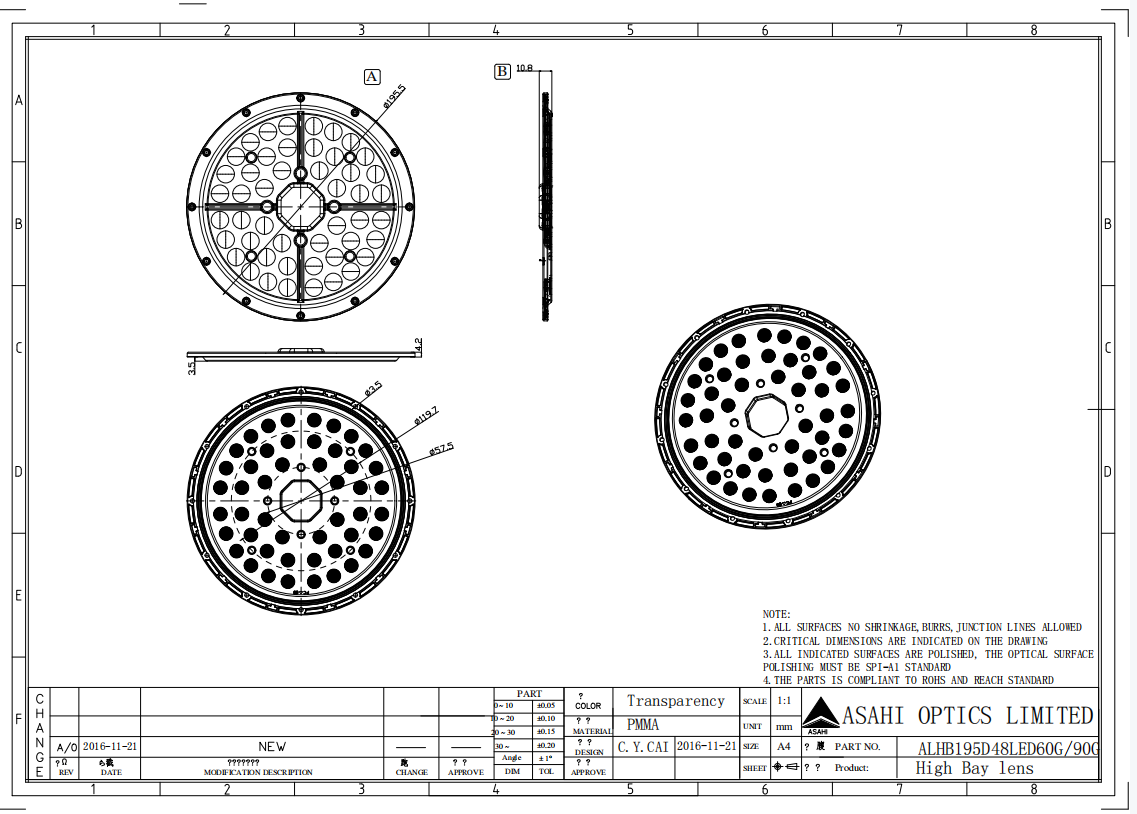

ASAHI OPTICS ALHB195D48LED60G,90G Drawing.dwg
ASAHI OPTICS ALHB195D48LED60G,90G Drawing.pdf
