Model: ASL280D30H14LED60G/90G
Diameter: 280mm
Height: 10.25mm
Angle: 60°, 90°
Material: PMMA+PC
Transmittance: 90%
LED Type: 2835/ 3030LED

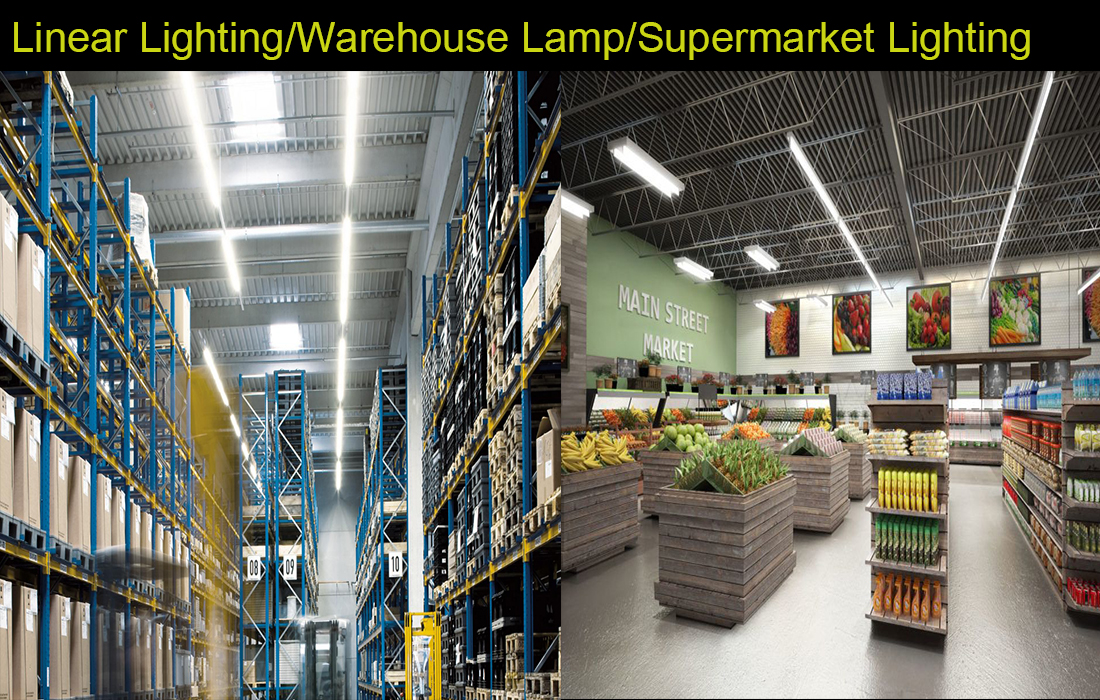

Lighting Applications: Linear Lighting

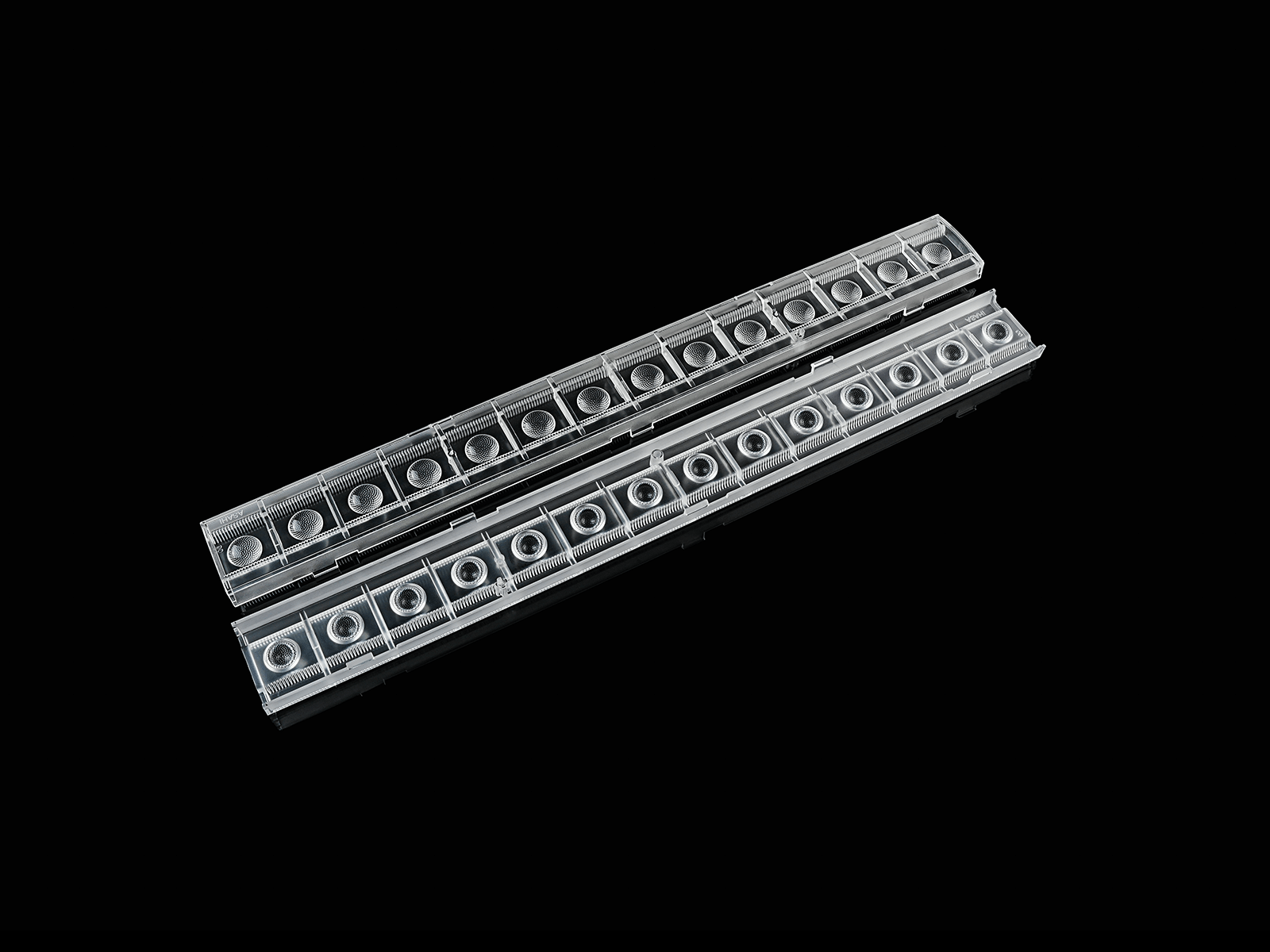

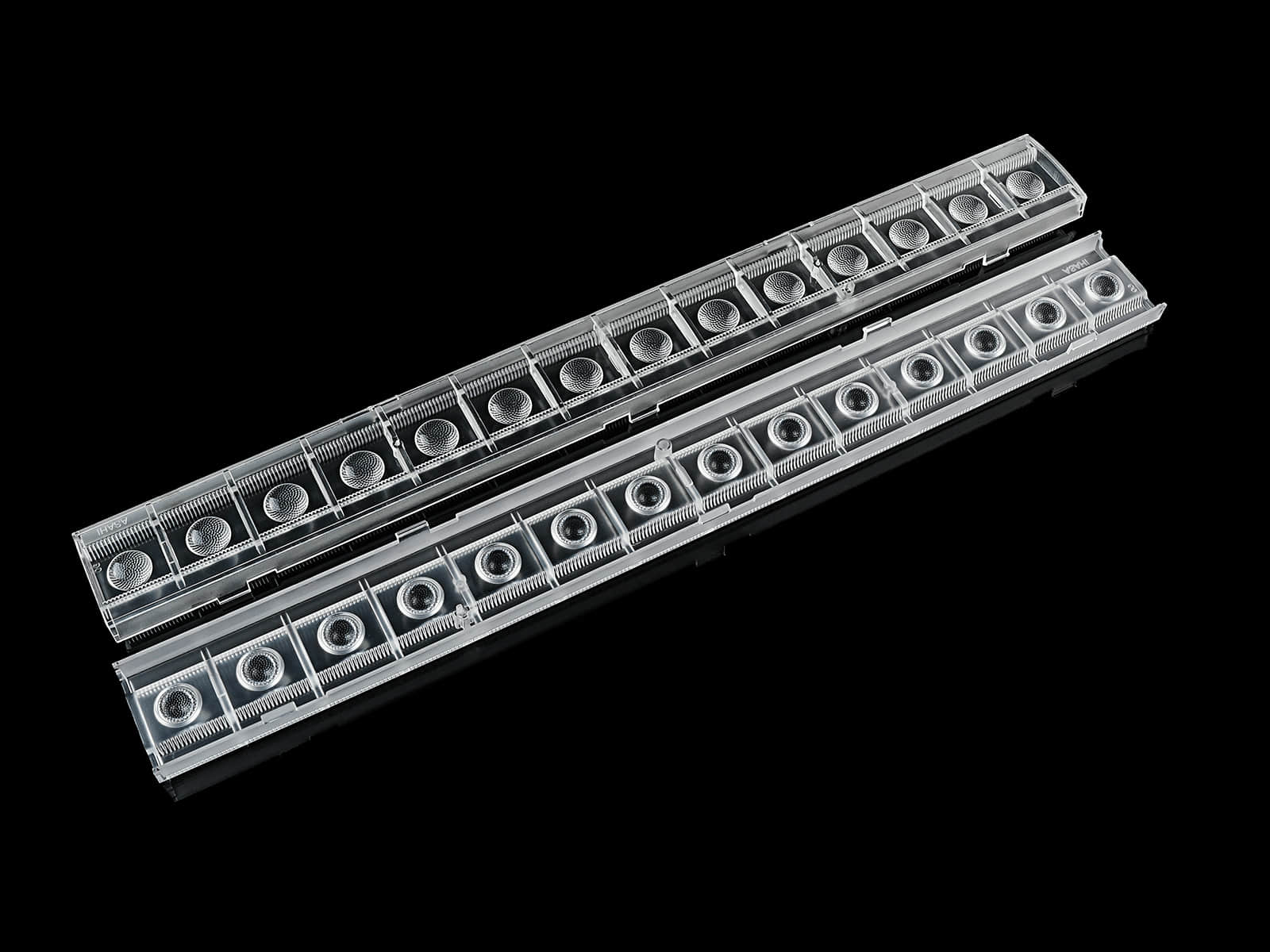

1. The 1x14LED linear lens is designed for 2 pieces of 2835LED or 3030LED with a narrow width of 30mm size.
2. The 14LEDs lens complies with ZHAGA standard assembly, which is perfect for cost-effective Retail and industrial lighting.
3. High efficiency and Anti-glare contron.

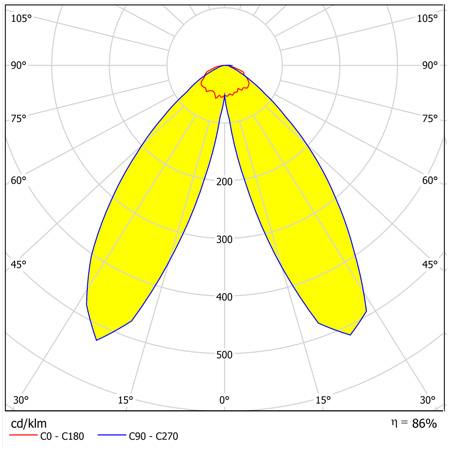

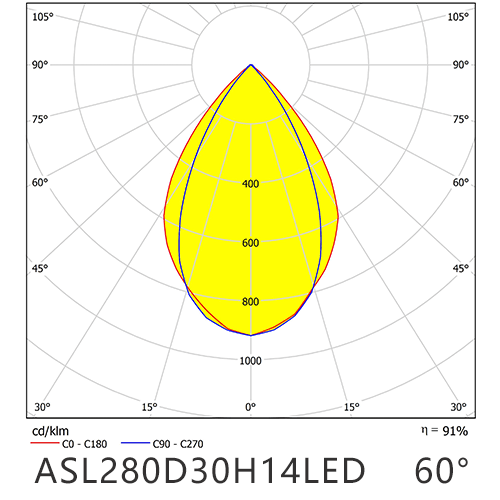

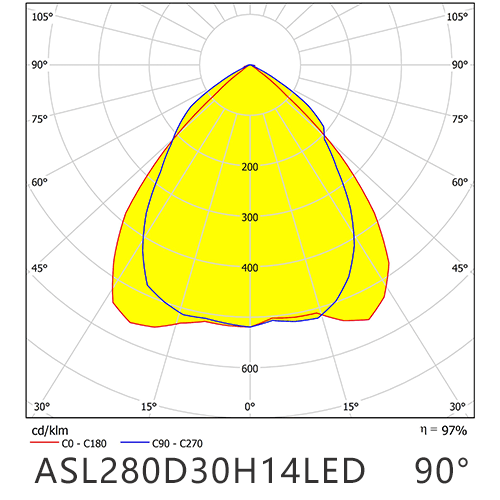

Distribution
Specifications
| Model: | ASL280D30H14LED60G/90G |
| Diameter: | 280mm |
| Height: | 10.25mm |
| Angle: | 60°, 90° |
| Material： | PMMA+PC |
| Transmittance： | 90% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The 1x14LED linear lens is designed for 2 pieces of 2835LED or 3030LED with a narrow width of 30mm size.
The 14LEDs lens complies with ZHAGA standard assembly.
