Model: ALHB50D12LED3030T90G
Diameter: 50x50mm
Height: 4.02mm
Angle: 90°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030LED

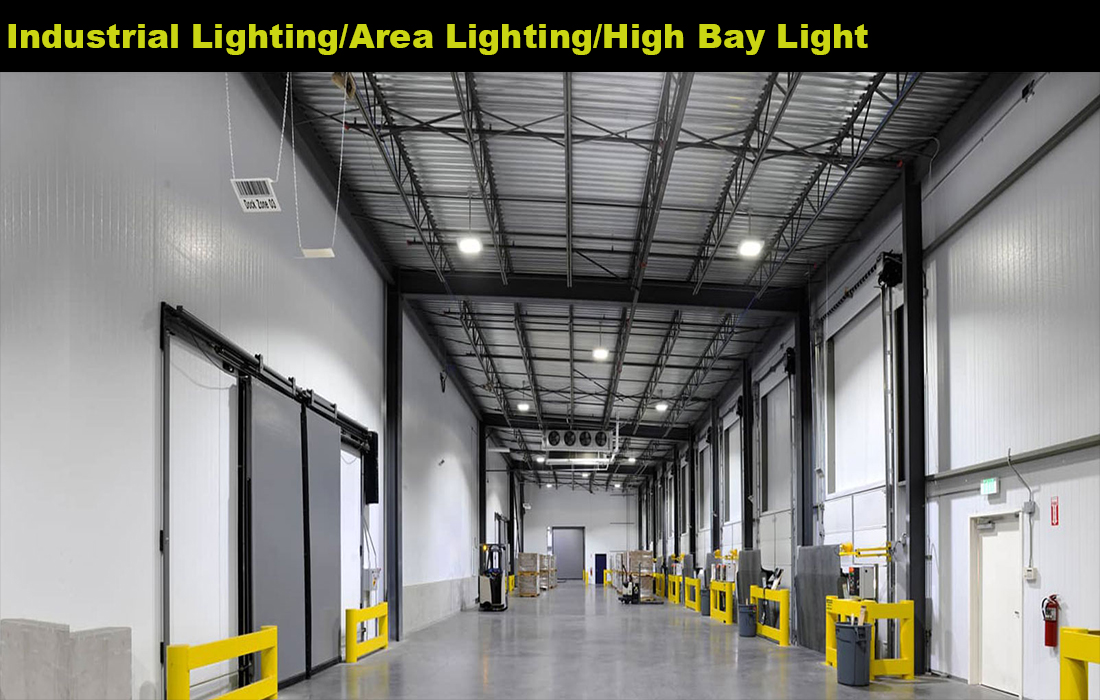

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. The 12x1 lens design, coupled with the 90° wide beam angle, making it ideal for illuminating large areas with a uniform and consistent light pattern.
2. Well-suited for a variety of outdoor floodlighting applications, including sports arenas, architectural facades, and large open spaces.
3. Designed for easy and straightforward installation.

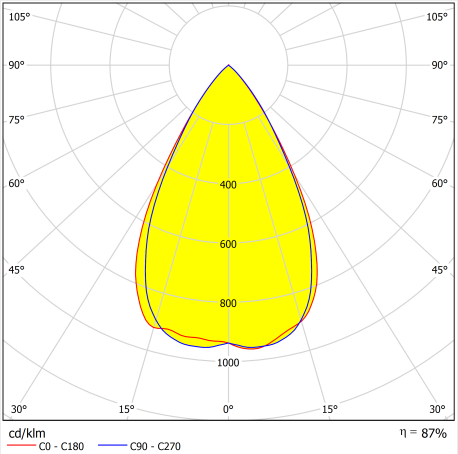

Distribution
Specifications
| Model: | ALHB50D12LED3030T90G |
| Diameter: | 50x50mm |
| eight: | 4.02mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | High Bay light,Flood Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB50D12LED3030T90G Drawing.dwg
ASAHI OPTICS ALHB50D12LED3030T90G Drawing.pdf
ASAHI OPTICS ALHB50D12LED3030T90G lens IES.ies
