Model: ALST50D16LEDT5R
Diameter: 50x50mm
Height: 4.02mm
Angle: T5 square beam TYPEIV
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030LED

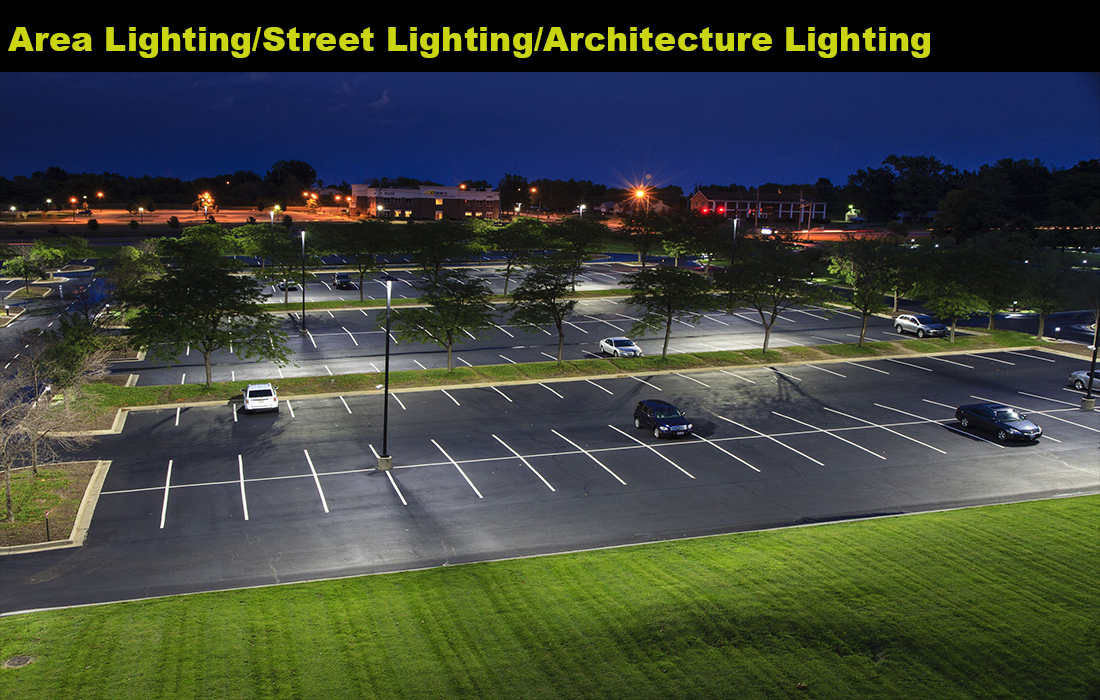

Lighting Applications:
1.Type V beam angle is Suitable for long-distance lighting: Due to the narrow and long beam distribution characteristics of the Type IV corner lens, it is suitable for long-distance lighting.
2. For example, it is used to illuminate roads or large parking lots and other places where long-distance lighting is required. It can effectively project light to a distance, providing sufficient lighting intensity and coverage.

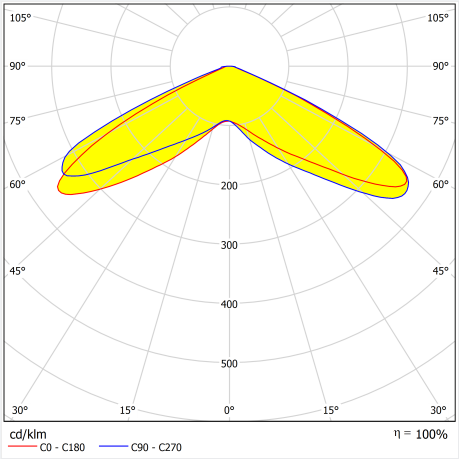

Distribution
Specifications
| Model: | ALST50D16LEDT5R |
| Diameter: | 50x50mm |
| Height: | 4.02mm |
| Angle: | T5 square beam TYPEIV |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Area lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

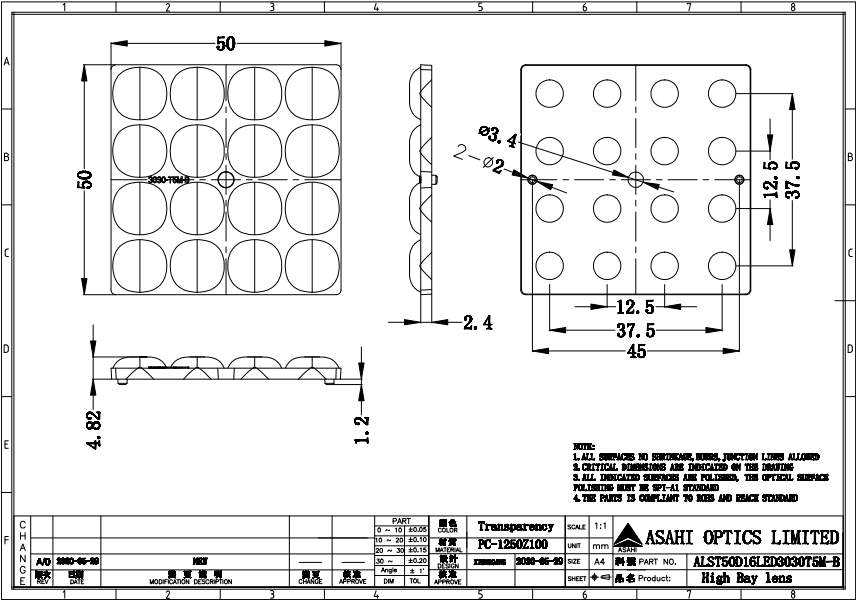

ASAHI OPTICS ALST50D16LEDT5 Drawing.pdf
ASAHI OPTICS ALST50D16LEDT5 Test Report.pdf
ASAHI OPTICS ALST50D16LEDT5 lens IES.ies
