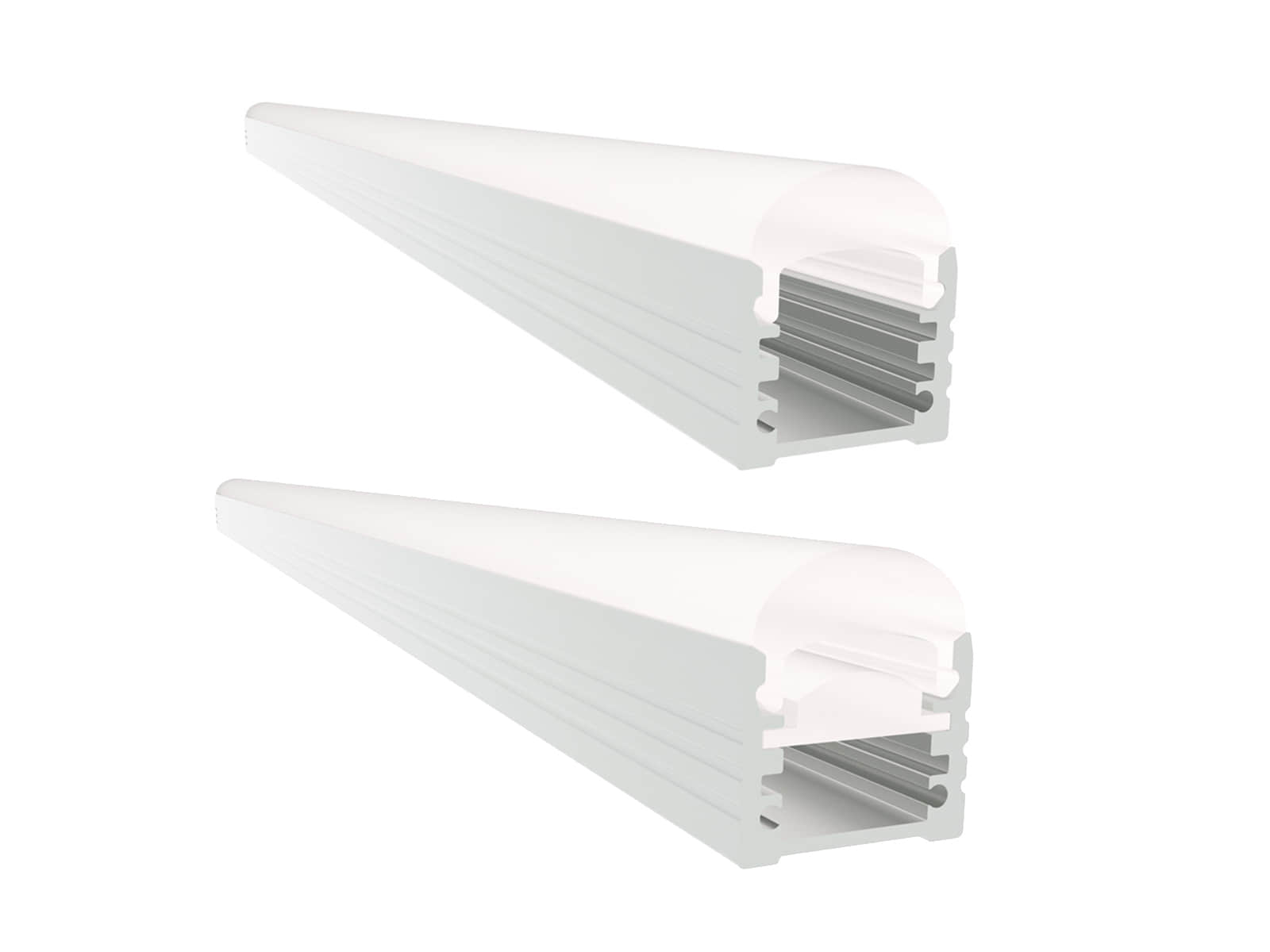

ASEL17DFS Series Series Extruded Linear Lens

ASEL17DFS Series Extrusion Linear Lens

Model: ASEL17DFS Series

Size: 17mm width

Height: -

Angle: 10°,20°,30°,60°,90°

Material: 6063 T5 Aluminum + PMMA lens + Plastic Endcap

Transmittance: >90%

LED Type: 2835/3030/3535LED

Lighting Applications: Linear lighting, Magnet Strip, Surface Mounting Brackets

1. The ASEL17DFS Series offers a variety of beam angle options including 10°, 20°, 30°, 60°, and 90°. Among these, the 10° option overcomes the significant technical challenge of achieving such an extremely narrow angle, which is generally not feasible with traditional extrusion lenses.

2. The lens integrates seamlessly with the profile structure, meeting the stringent requirements of commercial lighting for clean light spots and sharply defined edges.

3. Compatible with magnetic or surface-mounted brackets, it easily adapts to various ceiling, shelf, and wall-washing scenarios.

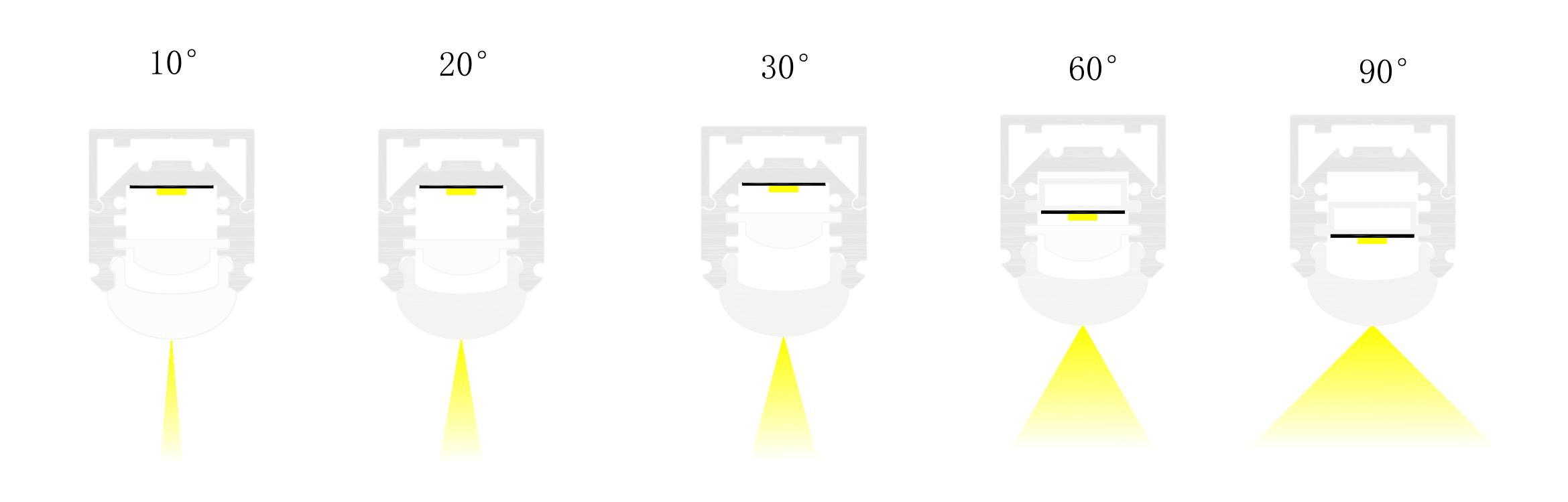

Distribution

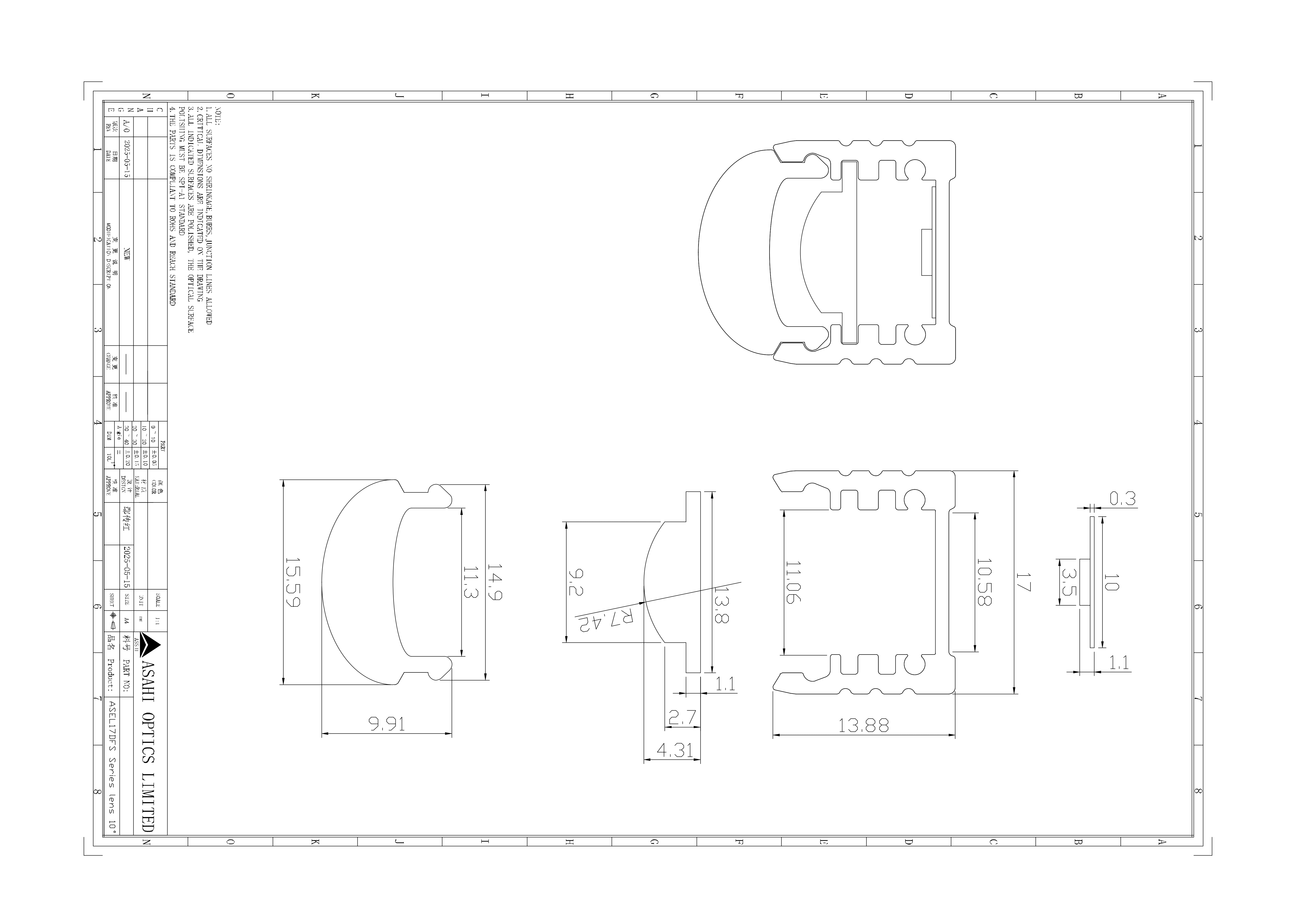

Specifications

Model:	ASEL17DFS Series
Size:	17mm width
Height:	-
Angle:	10°,20°,30°,60°,90°
Material：	6063 T5 Aluminum + PMMA lens + Plastic Endcap
Transmittance：	90%
LED Applications	2835/3030/3535LED
Lighting applications	Linear lighting, Magnet Strip, Surface Mounting Brackets
