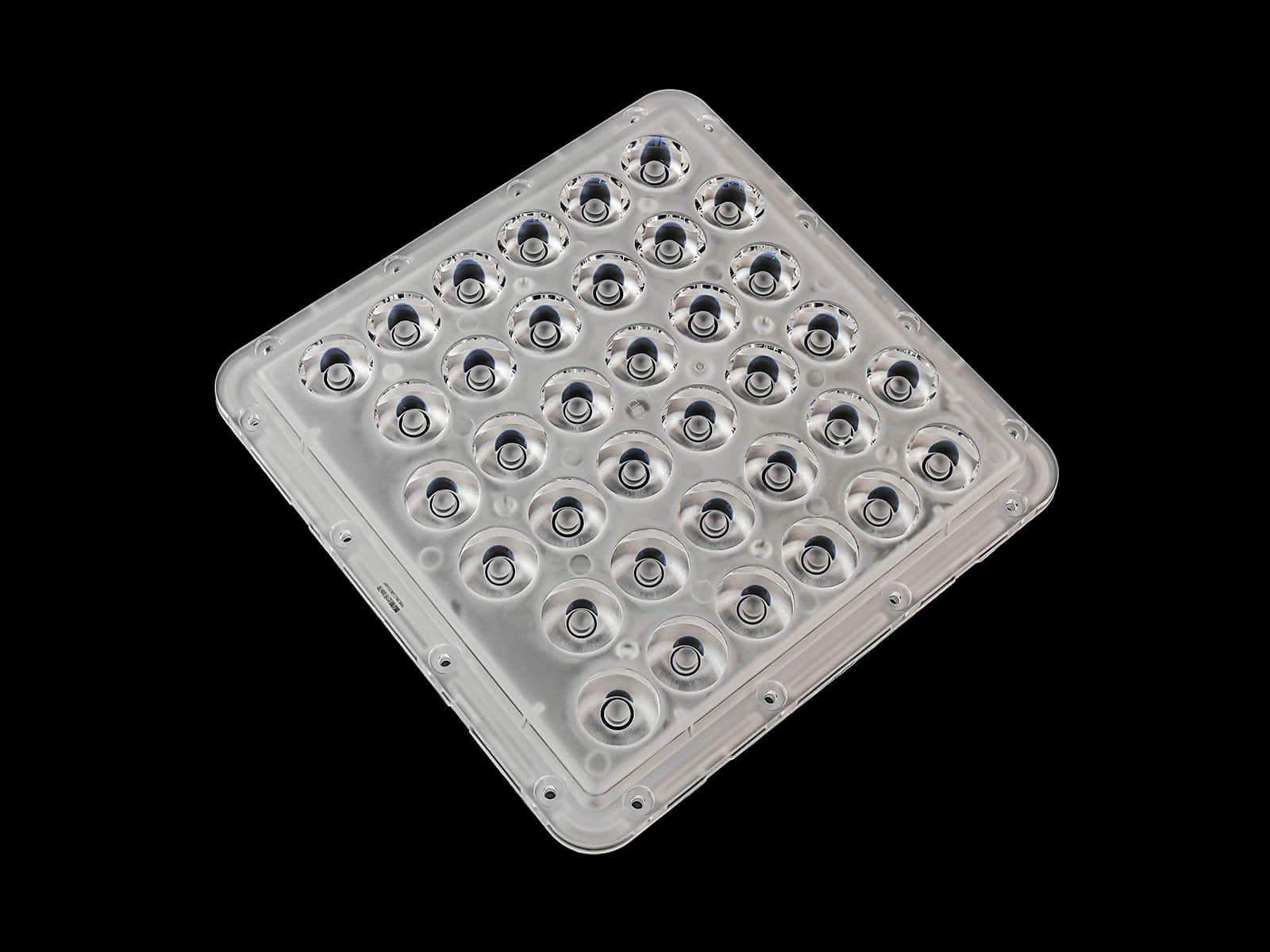

Model: AJHB180D36LED15G
Diameter: 180mm
Height: 13.7mm
Angle: 15°
Material: PC
Transmittance: >90%
LED Type: 3535LED
Lighting Applications: High Bay lighting
1. High Power lens module for Stadium lighting and Floodlight, with completely optical beam angles 10°, 15°, 30°, 45°, 60°，90°.
2. This 96LEDs lens is a perfect solution for the lighting systems of stadiums, multi-sports courts, courtyards, terraces, facades, parking lots, tunnels, squares, transport terminals, ports, airports and sports fields.
Distribution
Specifications
| Model: | AJHB180D36LED15G |
| Diameter: | 180mm |
| Height: | 13.7mm |
| Angle: | 15° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 3535LED |
| Lighting applications | High Bay lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. High Power lens module for Stadium lighting and Floodlight, with completely optical beam angles 10°, 15°, 30°, 45°, 60°，90°.
2. This 96LEDs lens is a perfect solution for the lighting systems of stadiums, multi-sports courts, courtyards, terraces, facades, parking lots, tunnels, squares, transport terminals, ports, airports and sports fields.
