Model: ALST50D4LED5050T2M-L
Diameter: 50x50mm
Height: 7.85mm
Angle: T2M-L
Material: TEIJIN PC-1250Z
Transmittance: 90%
LED Type: 5050LED
Lighting Applications: Street Lighting
1. Extended light coverage for long pole spacing.
2. This 2x2 lens is specifically designed for lighting systems with long pole-pole distances, ensuring consistent and wide light distribution over expansive areas.

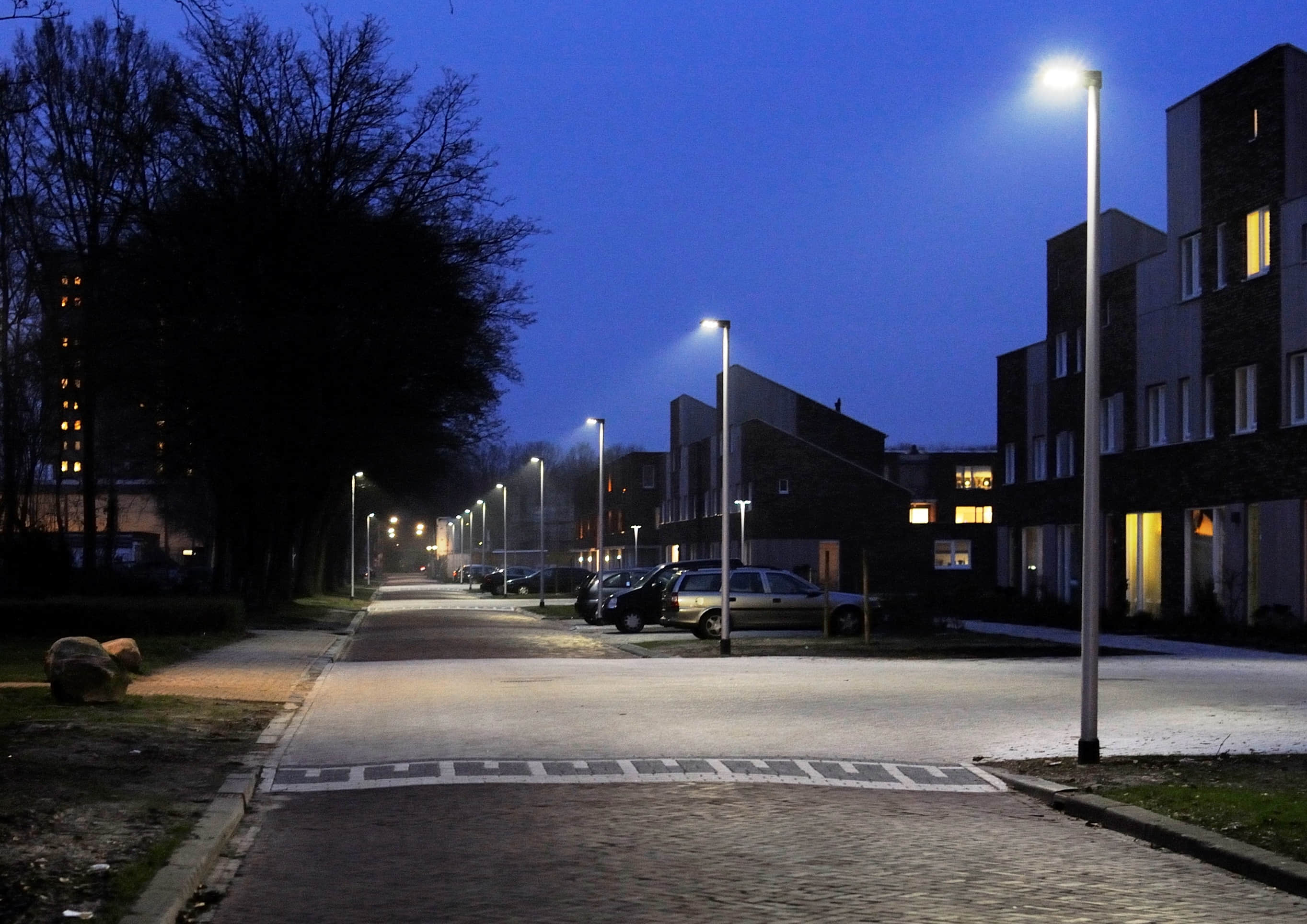

3. Its advanced optical design minimizes dark spots and provides uniform illumination, making it ideal for highways, large parking lots, and open public spaces.

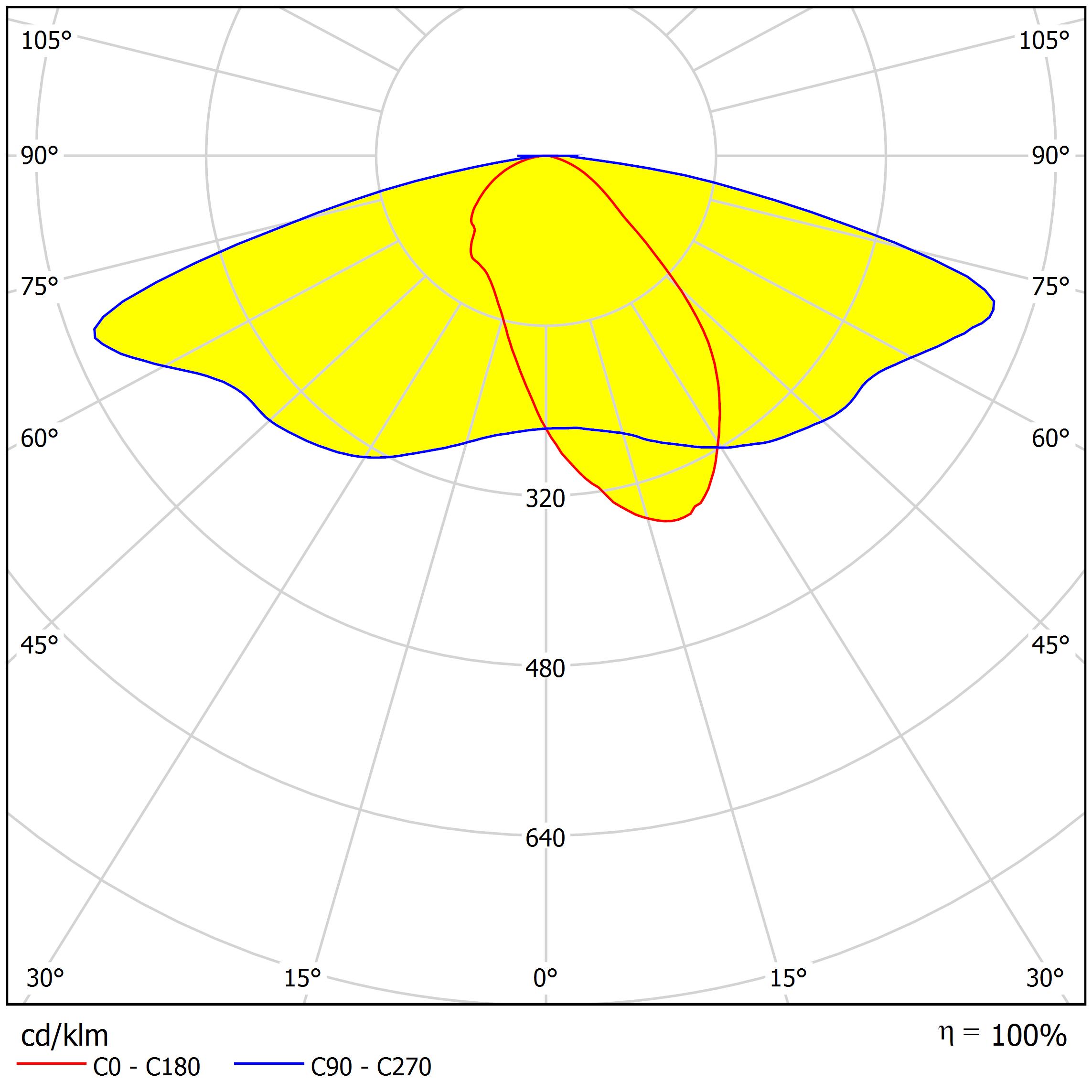

Distribution
Specifications
| Model: | ALST50D4LED5050T2M-L |
| Diameter: | 50x50mm |
| Height: | 7.85mm |
| Angle: | T2M-L |
| Material： | TEIJIN PC-1250Z |
| Transmittance： | ＞90% |
| LED Type | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. Extended light coverage for long pole spacing.
2. This 2x2 lens is specifically designed for lighting systems with long pole-pole distances, ensuring consistent and wide light distribution over expansive areas.
3. Its advanced optical design minimizes dark spots and provides uniform illumination, making it ideal for highways, large parking lots, and open public spaces.
