Model: ASEL AO20 Series
Size: 20mm Width
Height: -
Angle: ~40x120°,~60x100°,~90x100°,~150x100°,Asy35°
Material: PMMA
Transmittance: >90%
LED Type: 2835/3030LED
Lighting Applications: Linear Lighting, Office lighting

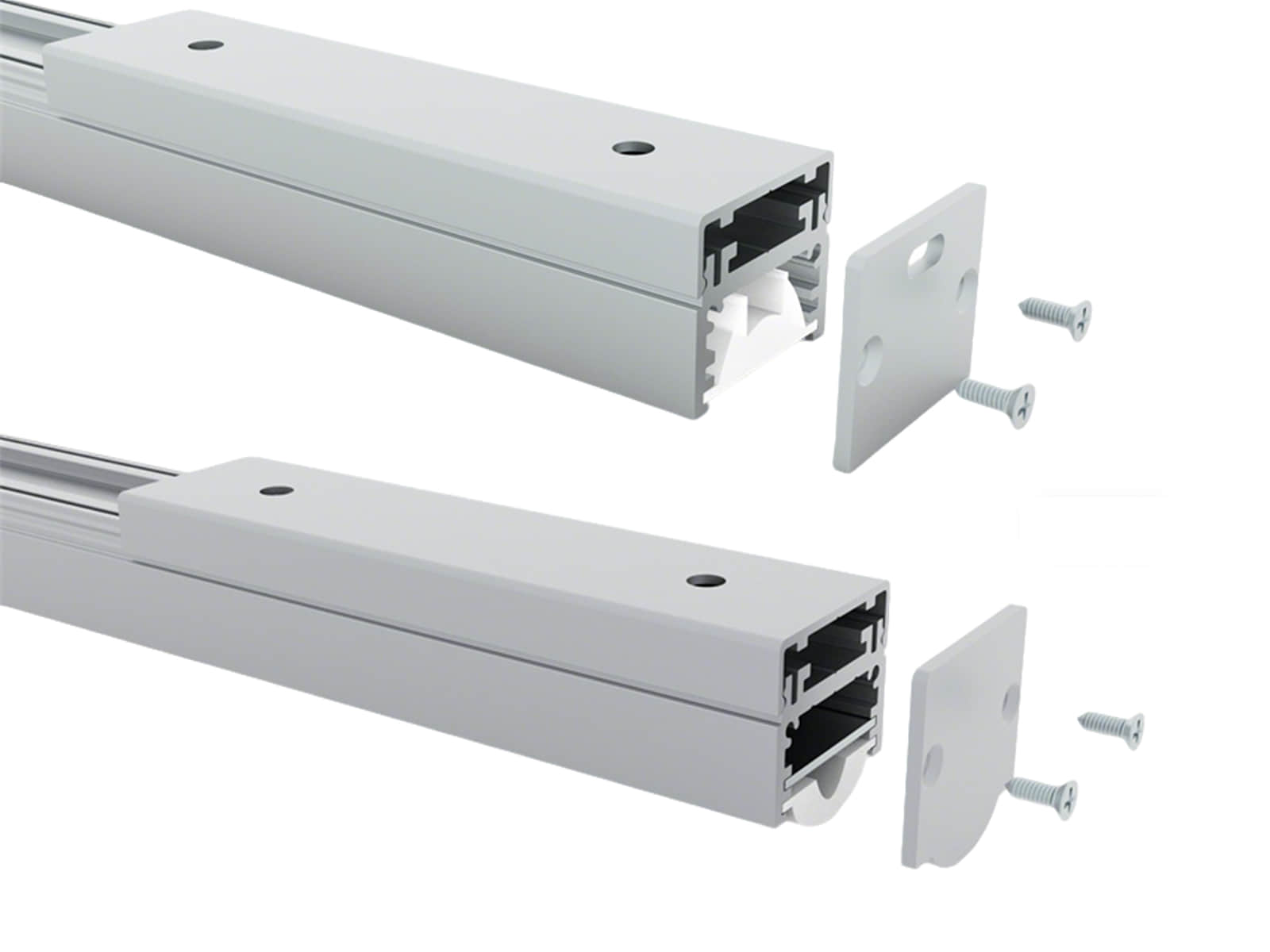

1. Crafted from durable 6063 T5 aluminum with a PMMA optical lens and plastic end caps, ensuring longevity and consistent performance in various retail environments.

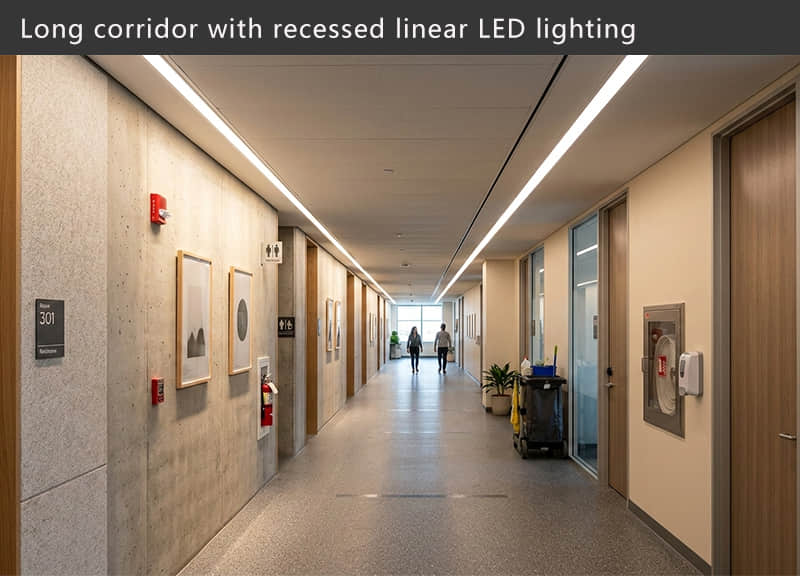

2. Designed for single-row power configurations and compatible with 2835/3030/3535 LEDs, making it the ideal linear solution for corridors, shelves, and display cases.
3. Offers multiple mounting options including magnet strips and surface brackets, with customizable anodized finishes (black/white/custom) to seamlessly integrate into any design scheme.

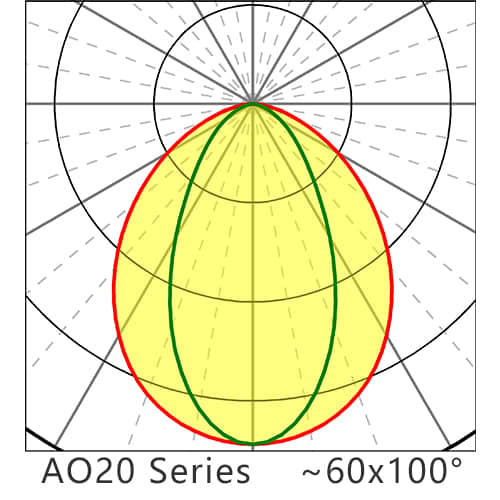

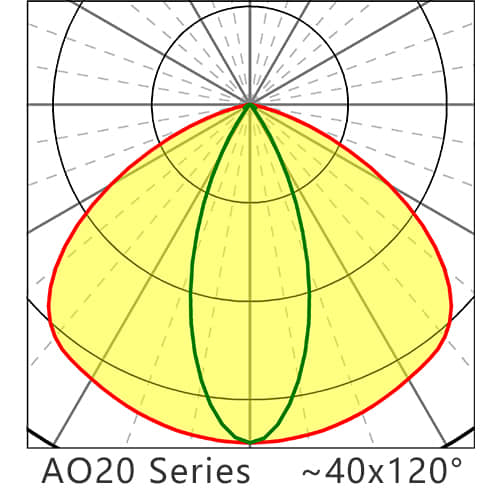

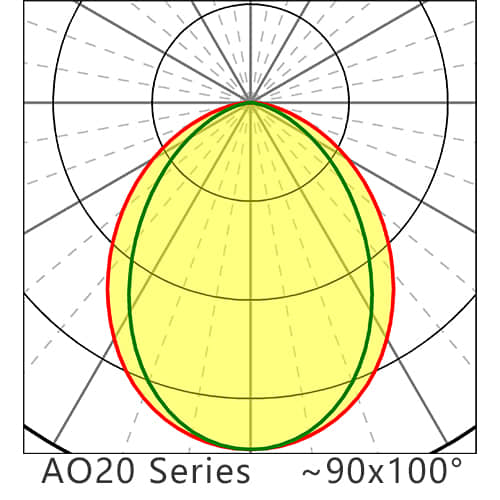

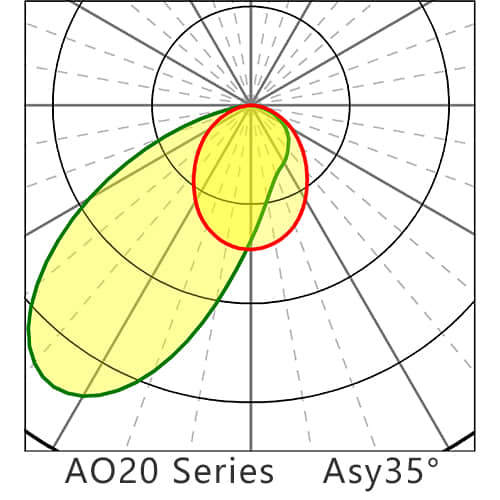

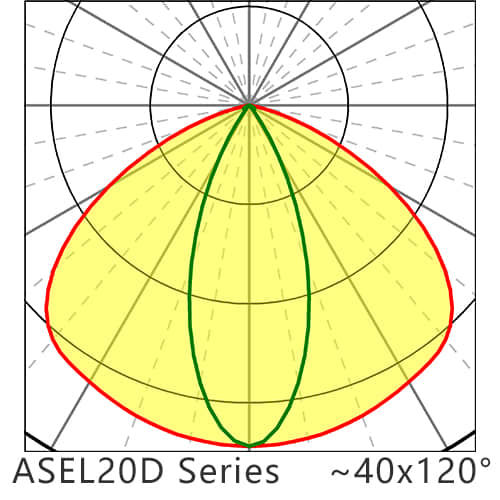

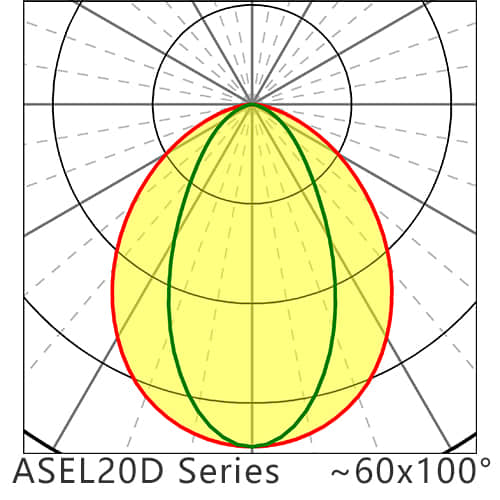

Distribution
Specifications
| Model: | ASEL AO20 Series |
| Size: | 20mm Width |
| Height: | - |
| Angle: | ~40x120°,~60x100°,~90x100°,~150x100°,Asy35° |
| Material： | 6063 T5 Aluminum + PMMA lens + Plastic Endcap |
| Transmittance： | 90% |
| LED Applications | 2835/3030/3535LED |
| Lighting applications | Retail, corridor and shelf lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

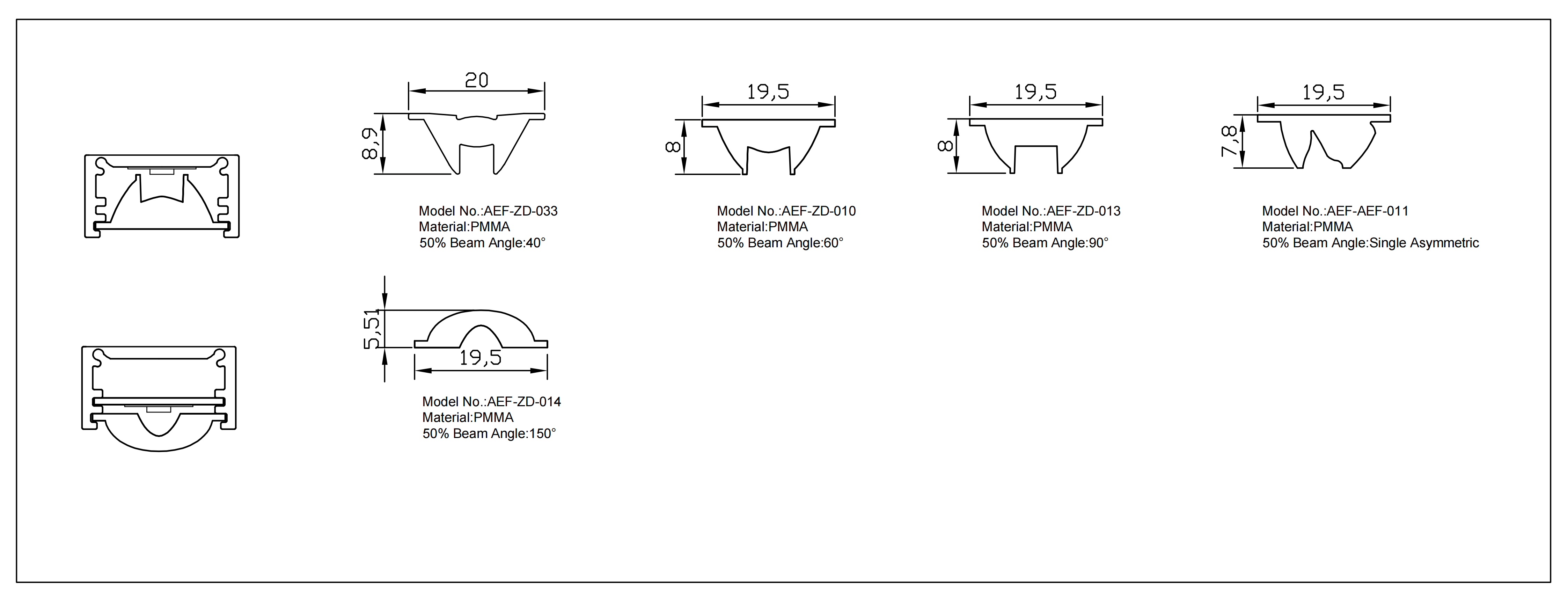

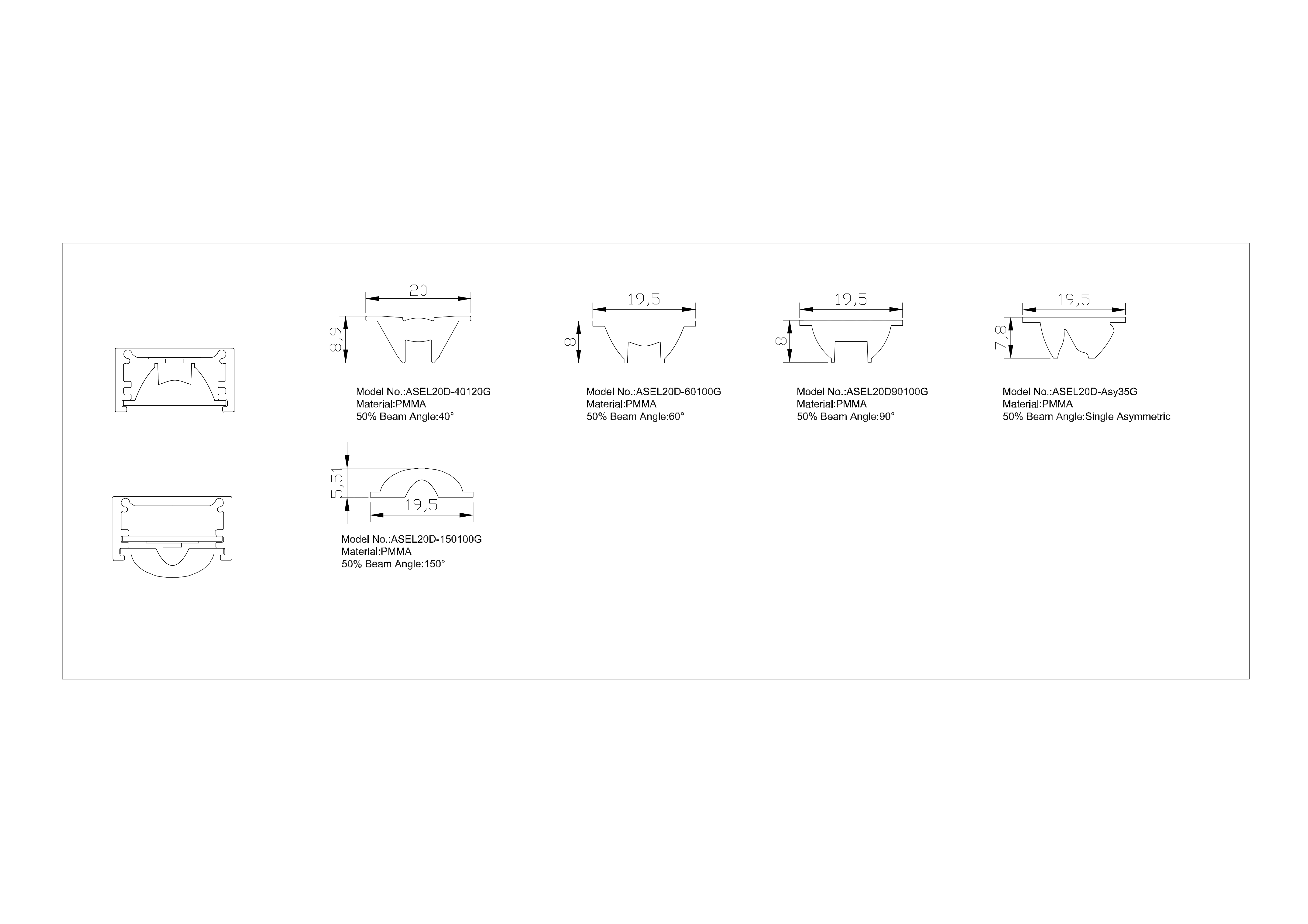

ASEL AO20 Series Extrusion Linear Lens 2D Drawing.dwg
ASEL AO20 Series Extrusion Linear Lens 2D Drawing.pdf
