LED linear luminaires are the cornerstone of interior lighting projects, from office lighting to supermarket lighting. The popular 280×40mm Zhaga linear standard lens is the top choice for optical performance. This article will provide an in-depth analysis of the optical advantages of this specific linear lens form factor.
The Importance of Zhaga Standardization
Zhaga is a global organization responsible for defining the mechanical and electrical specifications for LED light engines and modules. Zhaga-compliant linear lenses, such as the 280×40mm Zhaga standard lens, offer two major advantages:
- Interoperability: Modules and lenses from different manufacturers can be reliably combined, simplifying procurement and reducing project risk.
- Ease of Maintenance: Standard dimensions make luminaire replacement, retrofitting, and upgrades simple, without reworking the luminaire or housing.
For lighting designers and facility managers, Zhaga compliance means reduced lifecycle costs.
Key Optical Advantages of the 280×40mm Linear Lens
1. Optimized Light Distribution and Uniformity
The extended 280×40mm aperture allows for customized light control along a single axis while maintaining a narrow depth. This geometry produces a long, continuous beam with minimal brightness variation between luminaires, making it ideal for recessed and ceiling trough installations.
Because the lens distributes light over a wider horizontal area while maintaining strict vertical uniformity, fewer luminaires can be used to achieve uniform illumination across the entire work surface.
2. Glare Control and Visual Comfort
The 280×40mm Zhaga lens incorporates a diffuser profile and micro-optical surface features to reduce direct glare by controlling peak intensity and redirecting light away from the user's line of sight.
When used with appropriate driver dimming and mounting height, it can meet the required UGR (Uniform Glare Rating) targets for offices and classrooms. For applications such as open offices and retail, balancing brightness and comfort is crucial.
3. High Optical Efficiency and Energy Saving
High-quality linear lenses, especially those molded from optical PMMA or specific PC grades, maintain excellent transmittance (>90%), minimizing losses between the LED emitter and the target plane.
Advantages include higher lux output per watt, which means fewer lamps or lower drive currents are required to achieve the same illuminance. Precise beam shaping reduces wasted spill light, thereby improving system efficiency.
A 280×40mm lens paired with high-efficiency 2835/3030/5630 LED strips creates a compact, high-performance linear luminaire.
4. Flexible Beam Options and Application Range

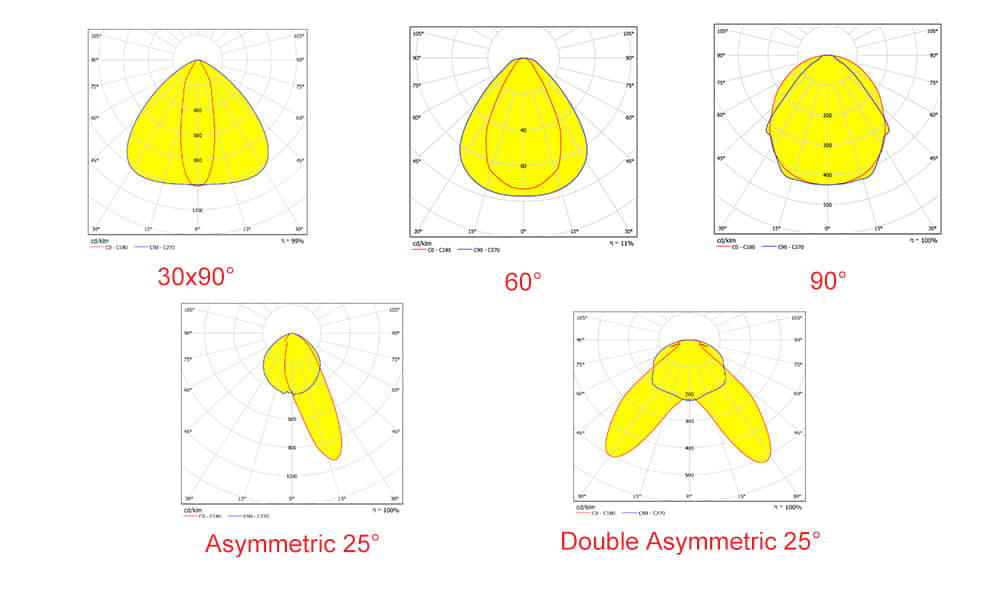

The 280×40mm form factor offers a variety of beam options, including 60°, 90°, 30x90°, Asymmetric 25°, and Double Asymmetric 25°. This flexibility means one standard size can meet a wide range of applications.

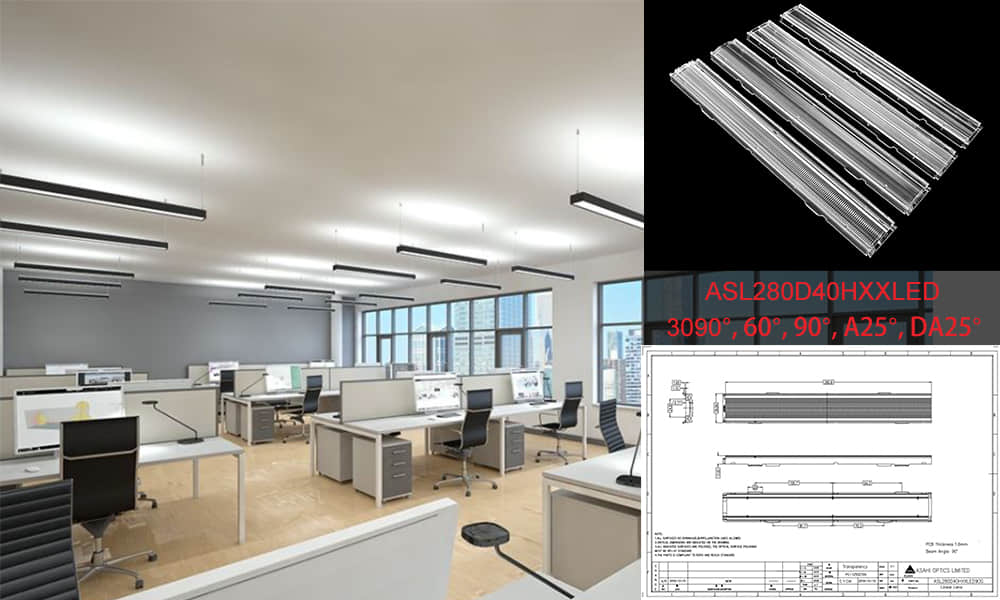

For corridor and aisle lighting with narrow or slender beams. And For office ambient lighting, it features a wide, soft distribution and provides uniform ceiling illumination.
5. Mechanical Integration and Thermal Compatibility
Because the Zhaga standard module defines mounting and interface tolerances, 280×40mm Zhaga lenses from reputable optical manufacturers can be neatly integrated into the luminaire housing with a suitable thermal path. Good thermal management ensures LED life and optical clarity; choosing materials and mounting methods that prevent thermal stress reduces the risk of long-term deformation or yellowing.
LED Spacing and Position: Linear lenses work best when they match the LED spacing (e.g., 2835/3030 types). Proper alignment prevents banding and achieves uniform brightness.
Mounting Height and Spacing: Use photometric simulations to determine center-to-center spacing; Zhaga standardization expedites this process due to the predictable module dimensions.
The 280×40mm Zhaga linear standard lens is a practical and high-value LED lighting optical accessory. Its standardized package size, combined with strong optical performance—uniformity, glare control, efficiency, and flexible beam shaping—makes it an ideal choice for commercial lighting applications.
If you're looking for an optical lens for a commercial lighting project, consider the 280×40mm Zhaga Optical lens. Asahi's linear product line offers a variety of beam angles and material options, designed for high transmittance and long-term optical stability.
