In modern LED lighting applications, achieving sufficient light coverage and uniform illumination is one of the biggest challenges for lighting designers and manufacturers. A narrow beam angle may create strong brightness in a small area, but it can also cause uneven lighting, dark zones, and insufficient coverage in large spaces.
A 90 degree LED lens is designed to provide a wider light distribution angle, helping LED fixtures achieve broader illumination coverage while maintaining high optical efficiency. From stadium lighting and industrial high bay lighting to large area outdoor illumination, 90-degree optics have become an important solution for controlling light output and improving lighting performance.
As a professional LED lens manufacturer, Asahi Optics provides advanced LED optical lens solutions, including custom optical design, mold development, and mass production services for different lighting applications.
What Is a 90 Degree LED Lens?
A 90 degree LED lens is a secondary optical component designed to reshape and control the light emitted from LED sources. Instead of allowing LED light to spread randomly, the lens uses optical structures to redirect light into a specific beam angle.
The main purpose of a 90-degree lens is to create a wider beam distribution, allowing lighting systems to cover a larger area with fewer fixtures. Compared with narrow beam lenses, 90-degree optics provide better balance between illumination range and brightness uniformity.
How Does a 90 Degree Beam Angle Work?
The beam angle describes the spread of light emitted from an LED lens. A smaller beam angle concentrates light into a narrow area, while a larger beam angle distributes light over a wider space.
- 15°-30° beam angle: Suitable for spotlighting and long-distance projection applications.
- 45°-60° beam angle: Commonly used for general lighting applications.
- 90° beam angle: Designed for wide-area illumination where broader coverage and uniform lighting are required.
Through precise optical design, a 90-degree LED lens can control the light distribution pattern, reduce unnecessary light loss, and improve overall lighting efficiency.
Why Choose a 90 Degree LED Lens for Better Light Coverage?
For many large-scale lighting projects, the biggest challenge is not simply increasing brightness but achieving consistent illumination across the entire target area. A 90 degree LED lens provides several advantages for solving these challenges.
1. Wider Lighting Coverage
A wider beam angle allows LED fixtures to illuminate a larger area from the same installation height. This is especially important for applications such as warehouses, stadiums, parking areas, and outdoor spaces.
By optimizing the beam distribution, a 90-degree lens reduces the number of lighting fixtures required while maintaining effective illumination levels.
2. Improved Lighting Uniformity
Uneven lighting is a common problem in high-power LED applications. Strong central brightness and weak peripheral illumination can affect visual comfort and lighting quality.
A properly designed LED optical lens distributes light more evenly, reducing hotspots and dark areas. This makes 90-degree optics suitable for environments where consistent illumination is required.
3. Better Energy Efficiency
With optimized LED optics design, more LED output can be directed toward the target area instead of being wasted through uncontrolled light distribution.
Efficient optical control helps lighting manufacturers achieve better performance while reducing unnecessary energy consumption.
Applications of 90 Degree LED Lens
Due to its wide beam distribution characteristics, the 90 degree LED lens is widely used in various professional lighting applications.
90 Degree LED Lens for Stadium Lighting
Sports lighting requires accurate light distribution to ensure visibility across large playing areas. Traditional lighting solutions may create uneven brightness, glare, or insufficient coverage.

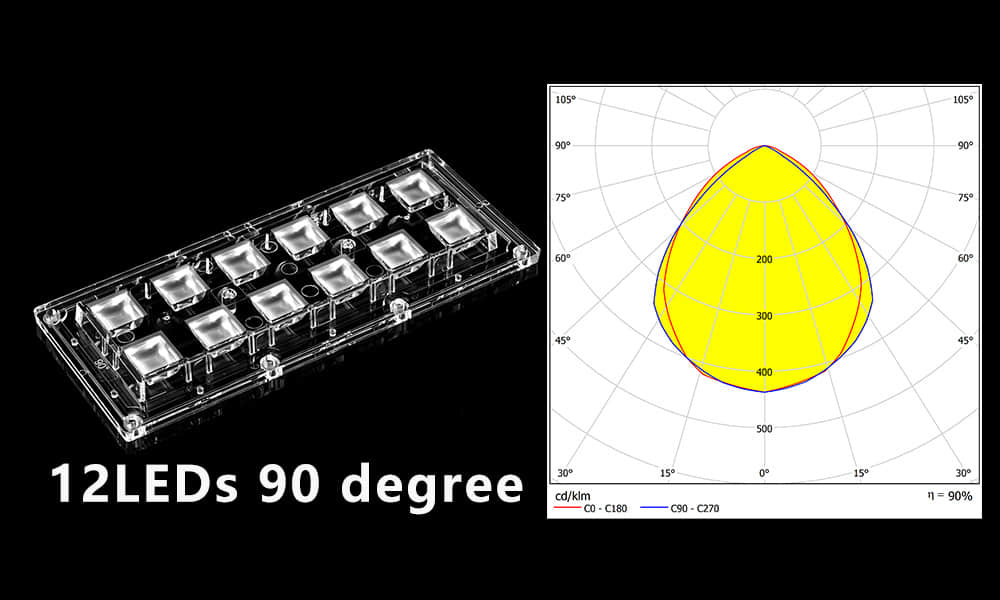

Asahi Optics provides 2x6 Arrays 90 Degree PMMA High Efficiency Stadium Lens, designed for high-performance sports lighting applications.
This type of lens is developed for multi-LED arrays and provides efficient light control for stadiums, sports fields, and large outdoor venues.
Through advanced optical design, the lens helps achieve:
- Wide-area illumination coverage
- High optical efficiency
- Reduced light waste
- Improved visual comfort for sports environments
90 Degree LED Lens for Large Area Lighting
Large area lighting applications require reliable illumination over wide spaces, including outdoor plazas, public areas, industrial yards, and commercial environments.
The Large Area Lighting Lens IP66 173mm 5050 LED 90 Degree is designed for powerful LED systems requiring wide light distribution and outdoor durability.
With compatibility for high-power 5050 LED packages and IP66 protection requirements, this type of LED optical lens provides a practical solution for demanding outdoor lighting environments.
90 Degree LED Lens for Industrial Lighting

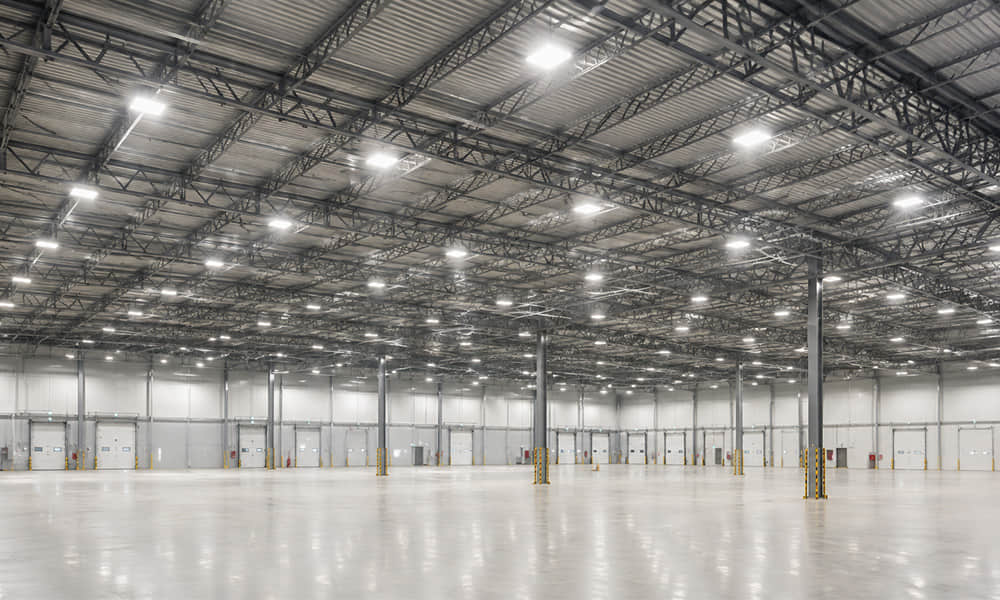

Industrial facilities such as warehouses and manufacturing plants often require high-output lighting with wide coverage. Narrow beam optics may create excessive brightness in certain areas while leaving other areas insufficiently illuminated.
The 90 Degree 5050 LED High Power Industrial Lighting Lens is developed for industrial lighting applications requiring efficient light distribution.
It helps LED high bay lighting systems achieve:
- Wide illumination range
- Better warehouse visibility
- Improved lighting uniformity
- Optimized high-power LED performance
90 Degree LED Lens vs Other Beam Angles
| Beam Angle | Main Characteristics | Typical Applications |
|---|---|---|
| 30 Degree | Narrow beam with concentrated light output | Spot lighting, accent lighting |
| 60 Degree | Balanced coverage and brightness | General indoor lighting |
| 90 Degree | Wide beam distribution and large coverage | Industrial lighting, stadium lighting, area lighting |
Choosing the correct beam angle depends on several factors, including installation height, lighting area, LED power, and required illumination level. A professional LED optics manufacturer can help optimize the optical solution according to specific project requirements.
How to Select the Right 90 Degree LED Lens?
1. Consider the LED Light Source
Different LED packages have different light output characteristics. The lens design should match the LED size, luminous intensity, and installation requirements.
2. Evaluate the Lighting Environment
Indoor, outdoor, industrial, and sports applications require different optical solutions. Factors such as mounting height, coverage area, and lighting standards should be considered.
3. Check Optical Performance
Important parameters include:
- Beam angle
- Light distribution pattern
- Optical efficiency
- Material performance
- Temperature resistance
Custom 90 Degree LED Lens Design and Manufacturing
Different lighting projects often require customized optical solutions. Standard lenses may not always achieve the ideal beam pattern, efficiency, or installation requirements.
Asahi Optics provides complete custom LED lens services, including:
- Optical simulation and design
- Customized lens development
- Precision mold manufacturing
- Small batch testing
- Large-scale production
With independent mold development capabilities, Asahi Optics can create customized custom optical lens solutions for different LED lighting applications.
Why Choose Asahi Optics for LED Optical Solutions?
Asahi Optics specializes in LED optics manufacturer services, providing professional optical components for global lighting companies.
Our advantages include:
- Professional LED optical design experience
- Custom lens development capability
- Advanced mold manufacturing technology
- Flexible production capacity from prototypes to mass production
- Solutions for indoor, outdoor, industrial, sports, and large-area lighting
Conclusion
A 90 degree LED lens is an effective optical solution for improving light coverage, enhancing illumination uniformity, and optimizing LED lighting performance. Whether for stadium lighting, industrial lighting, or large outdoor applications, the right optical lens design can significantly improve the overall lighting system.
By combining optical engineering expertise with precision manufacturing capabilities, Asahi Optics delivers customized LED optical lens solutions for lighting manufacturers worldwide.
If you are looking for a reliable partner for custom LED lens design and manufacturing, contact Asahi Optics for professional optical solutions.
