LED Linear Light Optics With TIR Design

Model: ASL280D40H24LED30G

Size: 280x40(mm)

Height: 7.1mm

Angle: 30°

Material: PMMA

Transmittance: >93%

LED Type: 2835/3030/3016LED

Lighting Applications: Linear Lighting

1. The lens is specifically designed to be compatible with a linear array or strip of 24 LEDs. It is engineered to match the spacing and arrangement of the LEDs to ensure optimal light distribution and performance.

2. The lens provides a fixed beam angle of 30 degrees. This means that the light emitted from the LEDs is focused and directed within a 30-degree cone-shaped pattern. It provides a medium spread of light suitable for various applications.

3. The lens helps control the direction and spread of light emitted by the 24 LEDs, ensuring that the light is efficiently distributed in the desired area or surface. It provides a controlled illumination pattern based on the specific beam angle.

4.The lens aids in distributing the light evenly across a specific area or surface within the 30-degree beam angle. It helps minimize hotspots or dark spots, ensuring a uniform and consistent illumination from the linear LED array.

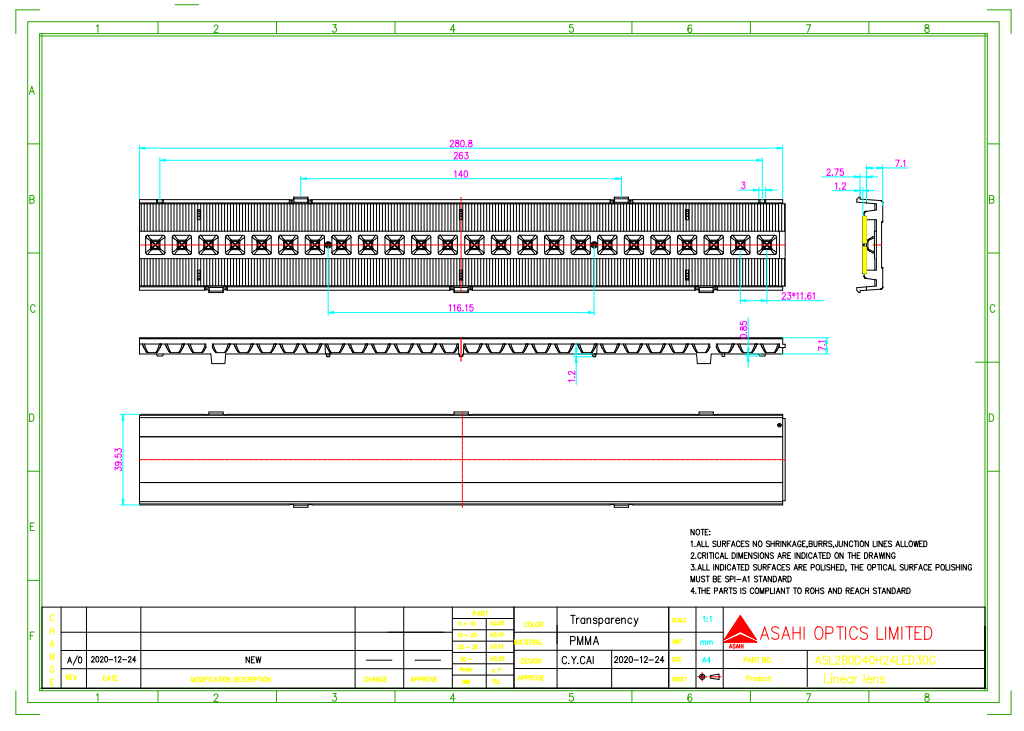

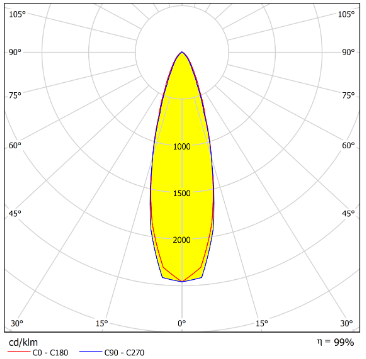

Distribution

Specifications

Model:	ASL280D40H24LED30G
Diameter:	280x40(mm)
Height:	7.1mm
Angle:	30°
Material：	PMMA
Transmittance：	93%
LED Applications	2835/3030/3016LED
Lighting applications	Linear Lighting
