5050LED PC High Quality Streetlight Cutoff Optics Lens

5050LED PC High Quality Streetlight Cutoff Optics Lens

Model: ARST50D6LED5050T2M-cutoff

Diameter: 50x50mm

Height: 6.62mm

Angle: T2M

Material: PC-1250Z TEIJIN

Transmittance: >90%

LED Type: 5050 LED

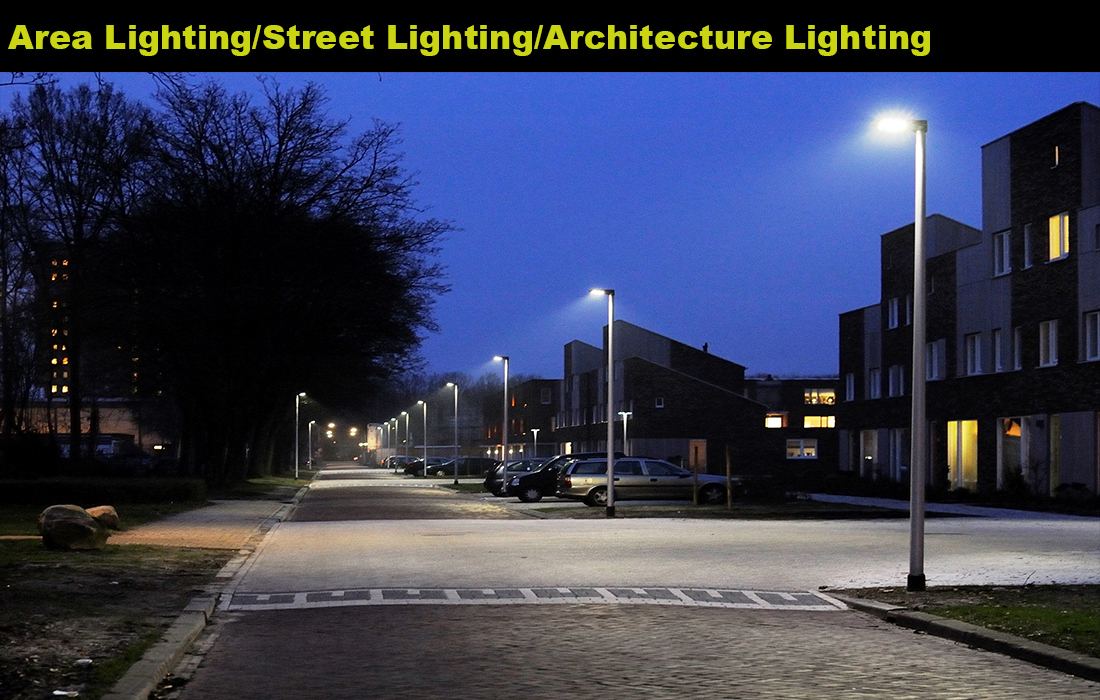

Lighting Applications: Street Lighting

1. The 2X3 lens with 50mm size is the updated version based on 4LEDs 50mm.Moreover,the 2X3 lens is developed for TYPE II-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires with excellent backlight control, illuminance uniformity, and cutoff light distribution.

2. The street light optical diagram T2M-cutoff is strictly required by Brazil government have to pass IMMETRO certification.

3. This lens is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050.

2. The street light optical diagram T2M-cutoff is strictly required by Brazil government have to pass IMMETRO certification.

3. This lens is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050.

The 2X3 lens with 50mm size is the updated version based on 4LEDs 50mm, moreover, the 2x3 lens is also developed for TYPEII-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires have a better road lighting effect.

The 2x3 lens T2M Cut-off is designed and tested with a glass cover for the IP66 water-proof solution
The 2x3 lens T2M Cut-off is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050

Specifications

Model:	ARST50D6LED5050T2M-cutoff
Diameter:	50x50mm
Height:	6.62mm
Angle:	T2M-Cutoff
Material：	PC-1250Z
Transmittance：	>90%
LED Type	5050 LED
Lighting applications	Street Lighting

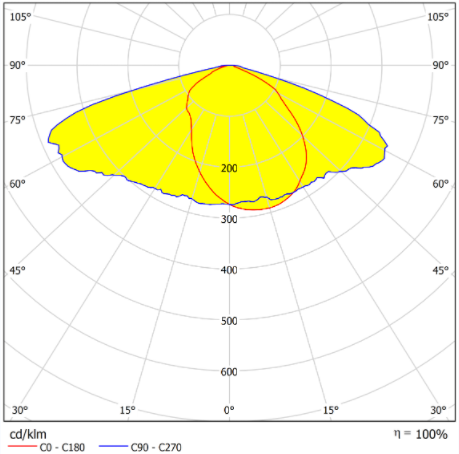

Light Distribution Curve

OSRAM S8 T2M CUTOFF T2M cutoff.2

T2M cutoff.1

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
