43mm Diameter Cob Led Down Light Lens 22mm Height

43mm Diameter Cob Led Down Light Lens 22mm Height

Model: ADCOB4322D

Diameter: 43.0mm

Height: 22.5mm

Angle: 24°; 38° ;60°

Material: PMMA

Transmittance: 90%

LED Type: COB LED

Lighting Applications: PAR lighting,Spot Light,Down Light

1, 43mm Diameter Cob Led Down Light Lens 22mm Height

2, COB lenses are used to precisely control the light emitted by the COB LED. They help to focus and direct the light in a specific direction, allowing for efficient light distribution and minimizing light loss.

3, COB lenses are designed with specific shapes that determine the direction of light. The curvature and contours of the lens surface can be optimized to control the outgoing light beam. For example, a lens with a narrower profile concentrates the light into a more focused beam, while a lens with a wider profile disperses the light over a broader area.

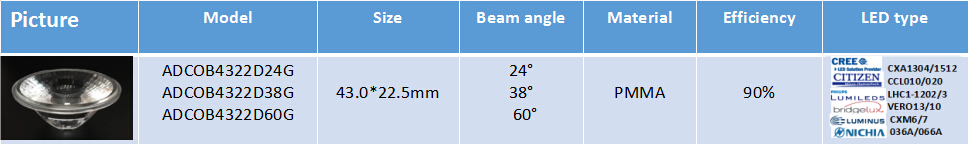

Specifications

Model:	ADCOB4322D
Diameter:	43.0mm
Height:	22.5mm

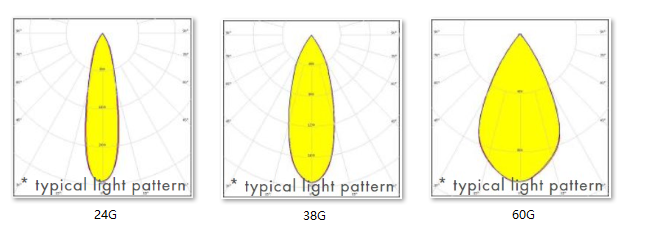

Angle:	24°,38°,60°
Material：	PMMA
Transmittance：	>93%
LED Applications	COB LED
Lighting applications	PAR lighting, Spot Light, Down Light

Specification Download

20160919142262366236

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
