3535LED 10degree Narrow Beam Sport Stadium Lighting Lens

3535LED 10degree Narrow Beam Sport Stadium Lighting Lens

Model: ALHB50D4LED3535T10G

Diameter: 50x50mm

Height: 7.95mm

Angle: 10°

Material: PMMA

Transmittance: >93%

LED Type: 3535LED

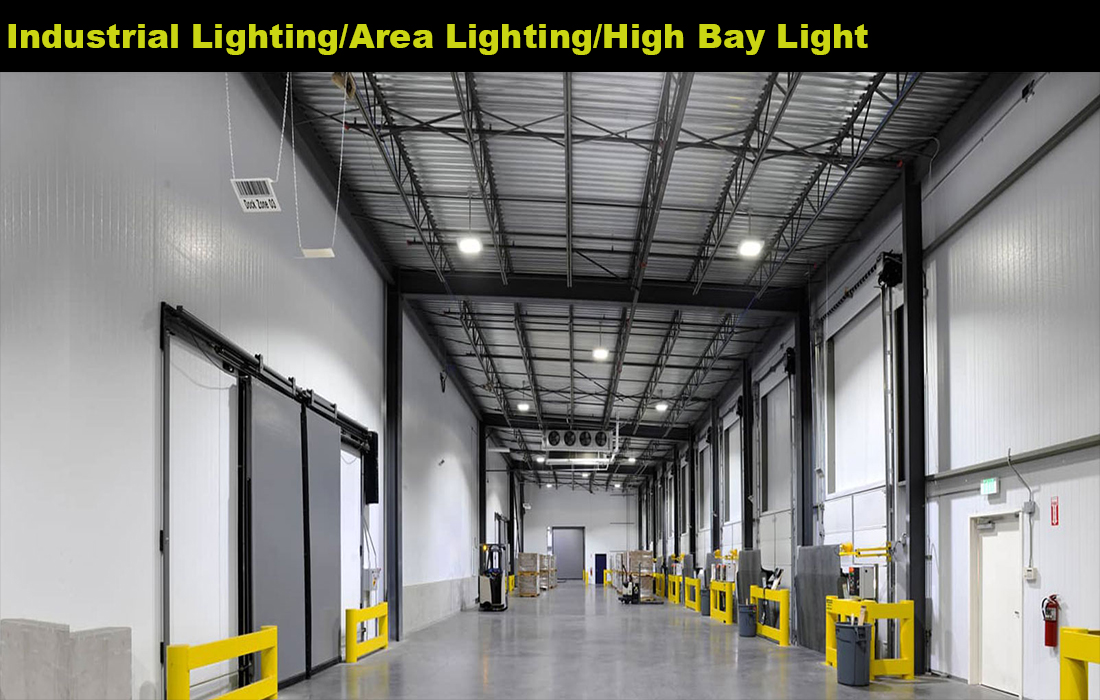

Lighting Applications: High Bay Lighting

1. The 2x2 lens with a 10° small beam angle, designed for use with 3535 LEDs,.

2. The lens ensures even distribution of light across the illuminated area, minimizing dark spots and hotspots.

3. Offering a versatile, energy-efficient, and cost-effective solution across flood lighting, high bay lighting, and stadium lighting applications etc.

1. The 2x2 lens with a 10° small beam angle, designed for use with 3535 LEDs,.

2. The lens ensures even distribution of light across the illuminated area, minimizing dark spots and hotspots.

3. Offering a versatile, energy-efficient, and cost-effective solution across flood lighting, high bay lighting, and stadium lighting applications etc.

Specifications

Model:	ALHB50D4LED3535T10G
Diameter:	50x50mm
Height:	7.95mm
Angle:	10°
Material：	PMMA
Transmittance：	>93%
LED Type	3535LED
Lighting applications	High Bay Lighting

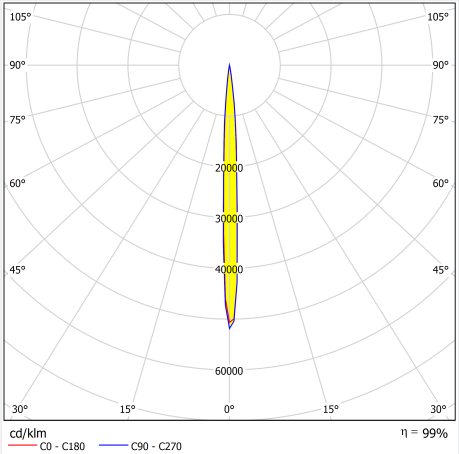

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
