Model: ARST36LEDT2M-cutoff
Diameter: 253.5mm
Height: 120mm
Angle: T2M-cutoff
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street Lighting
1.236x120mm rectangular structure with the aim of providing more options for luminaire manufacturers. This size is suitable for luminaires that require a larger luminous area or special installation needs, such as high power LED modules, large industrial lighting or customized commercial lighting.
2.T2M-CUTOFF light distribution enables a clear cut-off line of light spots, ensuring that the light is focused on areas that need to be illuminated (e.g., roadways, sidewalks) and avoiding light scattering to unwanted areas
Distribution
Specifications
| Model: | ARST36LEDT2M-cutoff |
| Diameter: | 253.5mm |
| Height: | 120mm |
| Angle: | T2M-cutoff |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

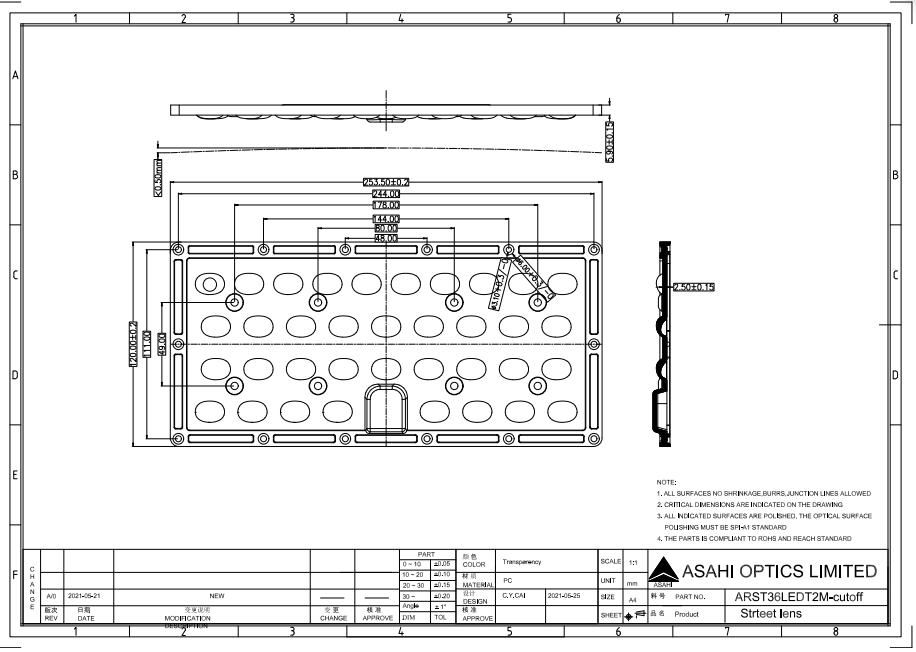

Asahi Optics ARST36LEDT2M-cutoff.dwg
Asahi Optics ARST36LEDT2M-cutoff.pdf
Asahi Optics ARST36LEDT2M-cutoff.ies
Asahi Optics ARST36LEDT2M-cutoff Specification.pdf
