Model: AJST173D12LEDT4B
Diameter: 173x71.4mm
Height: 5.35mm
Angle: T4B
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Area Lighting

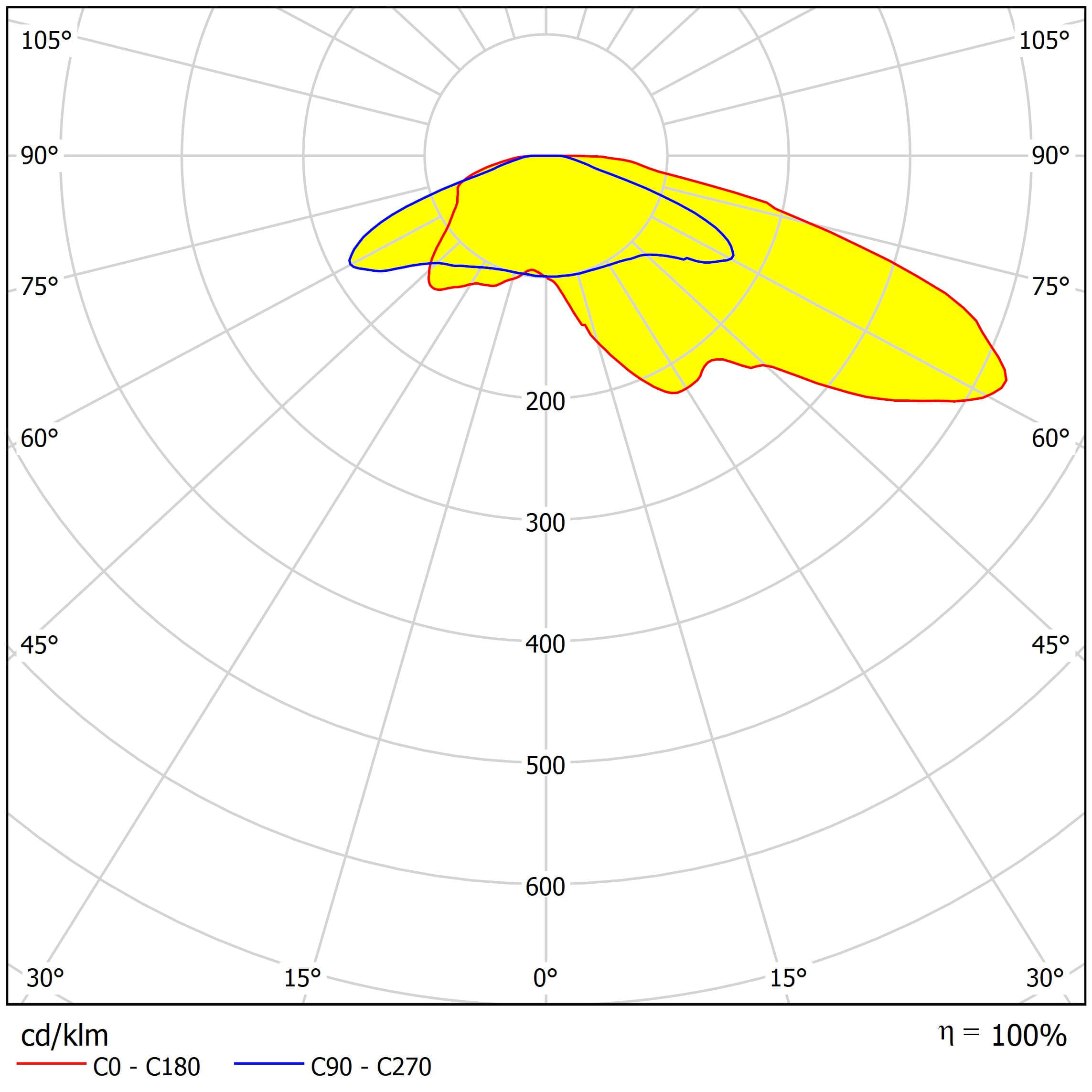

Distribution
Specifications
| Model: | AJST173D12LEDT4B |
| Diameter: | 173x71.4mm |
| Height: | 5.35mm |
| Angle: | T4B |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
2x6 lens with Very Short beam angle for wide area lighting like parking lot, tennis court
ASAHI OPTICS AJST173D12LEDT4B 3D Drawing.stp

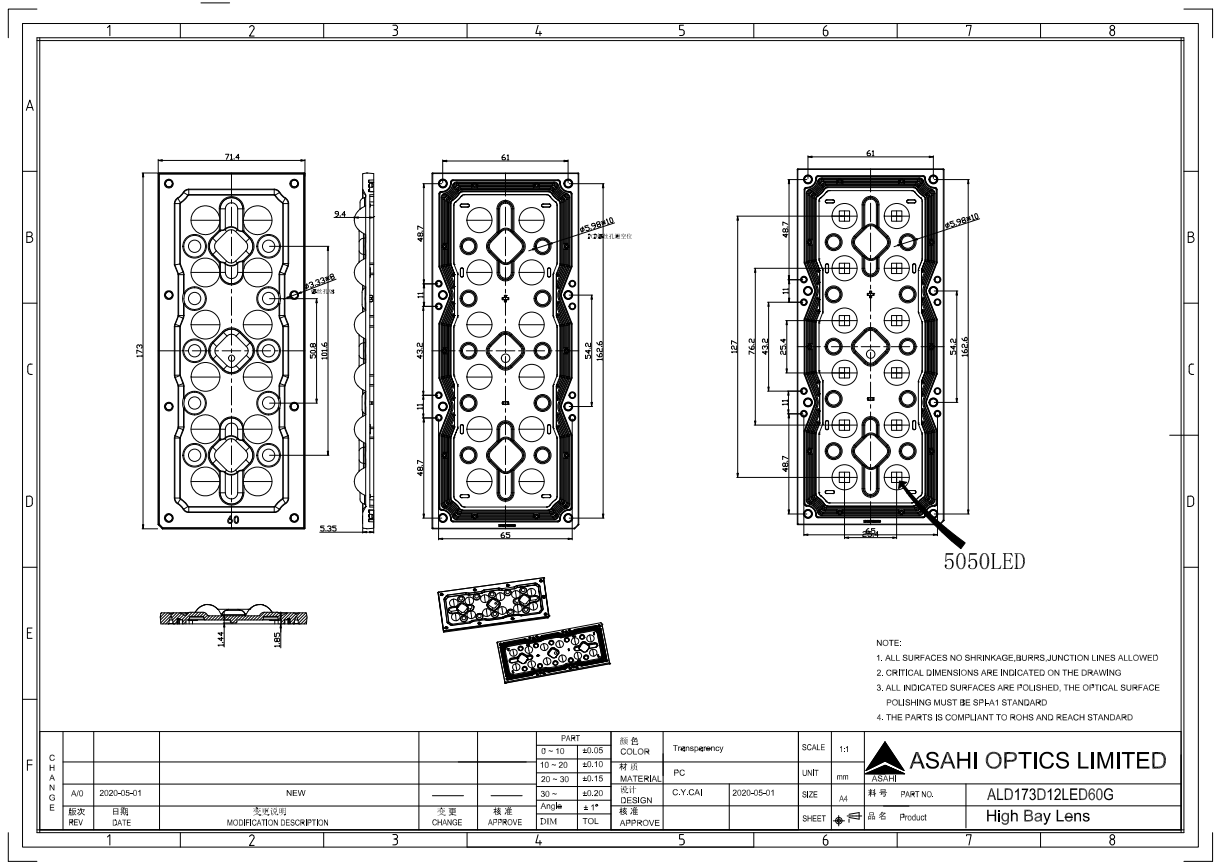

ASAHI OPTICS AJST173D12LEDT4B Drawing.dwg
