Model: ALST173D12LEDT2NB-H
Diameter: 173x71.4mm
Height: 9.10mm
Angle: T2M Asymmetric No Back light
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 5050LED

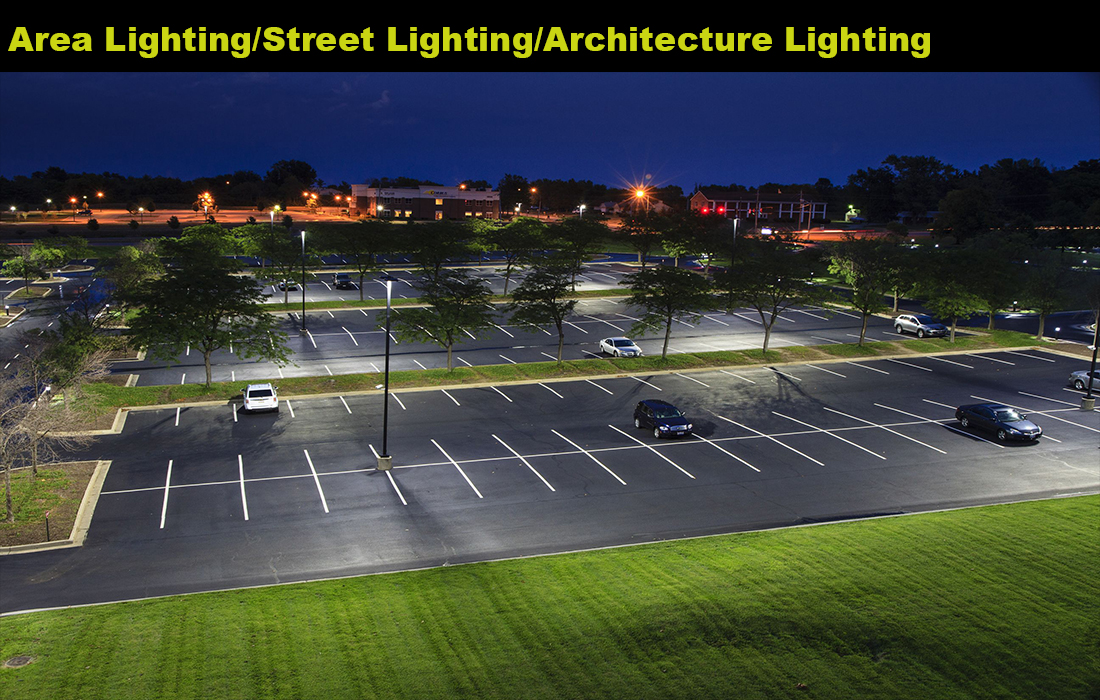

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 2x6 TypeII-Medium boasts two lens options for both horizontal and vertical installations, catering to diverse preferences among customers for luminaire installation.
2. With an impressive IP66 rating,excels in dust and waterproof protection.
3. The lens compatible with both 3535 and 5050 series LED

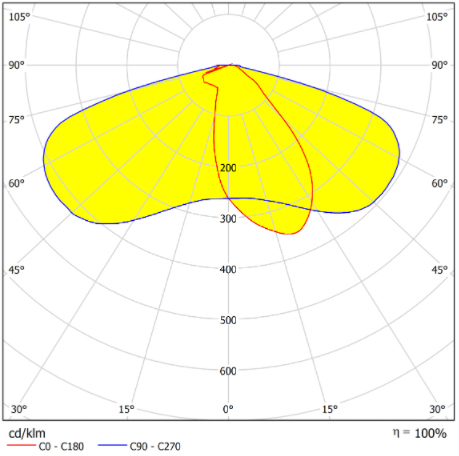

Distribution
Specifications
| Model: | ALST173D12LEDT2NB-H |
| Diameter: | 173x71.4mm |
| Height: | 9.10mm |
| Angle: | T2M Asymmetric No Back light |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting,Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

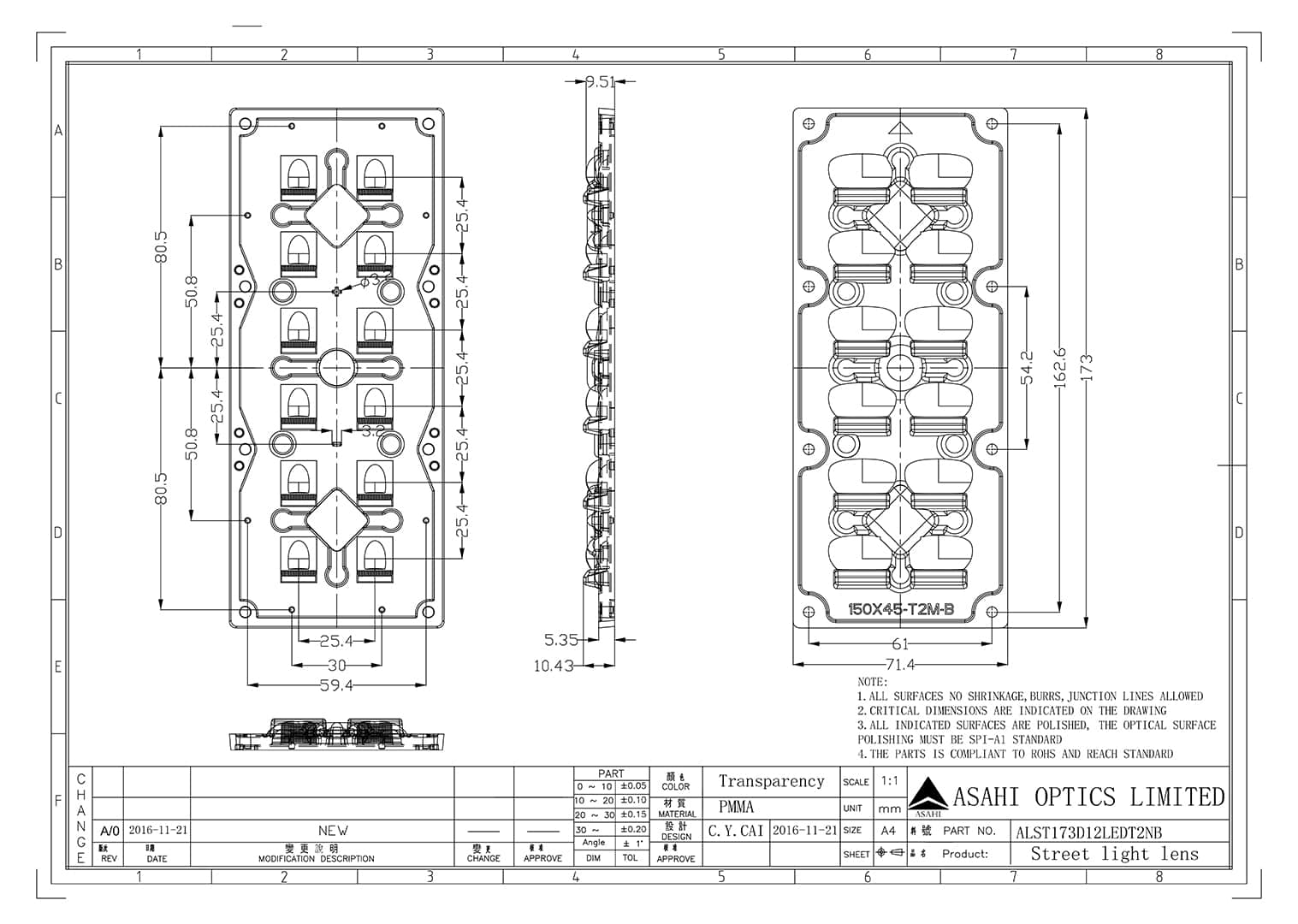

ASAHI OPTICS ALST173D12LEDT2NB Drawing.dwg
ASAHI OPTICS ALST173D12LEDT2NB Drawing.pdf
ASAHI OPTICS ALST173D12LEDT2NB DIALux.pdf
ASAHI OPTICS ALST173D12LEDT2NB Seoul5050 lens IES.ies
ASAHI OPTICS ALST173D12LEDT2NB XPG3 lens IES.ies
