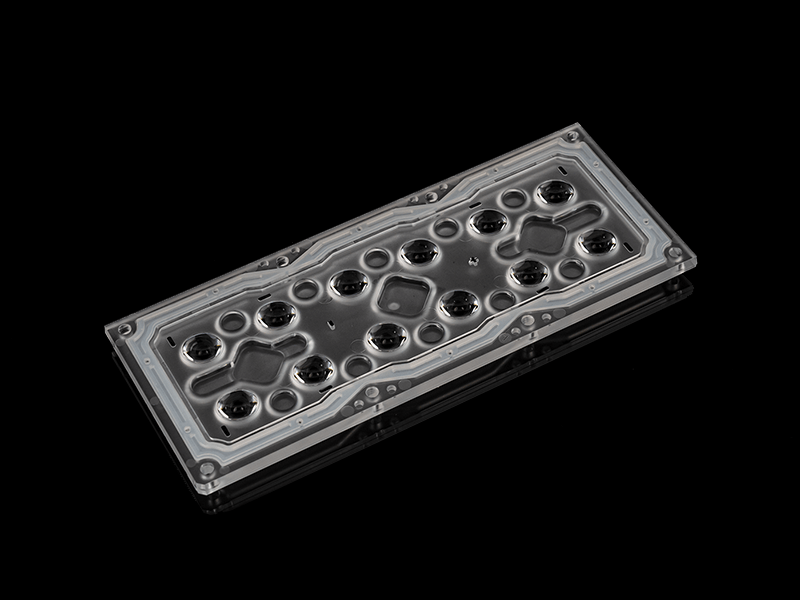

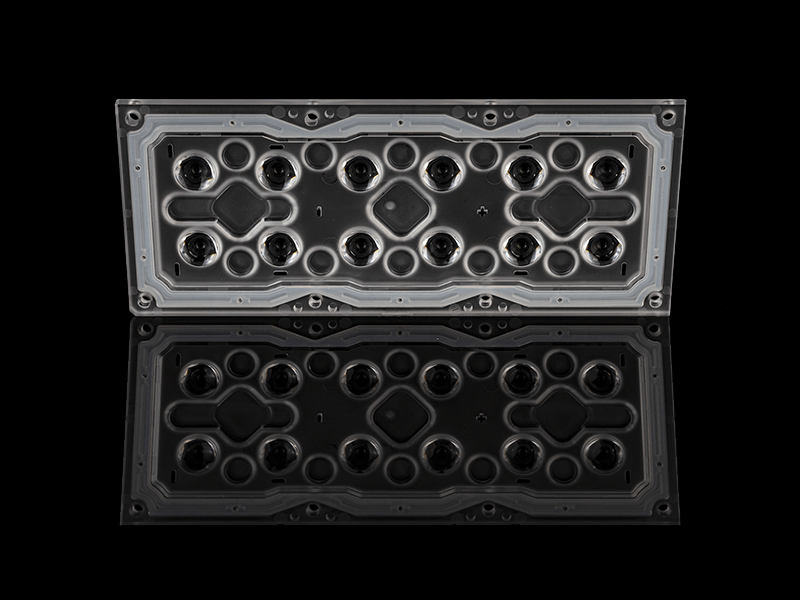

2x6 Lens Array 5050LED 60 Degree Flood Lighting Lens

2x6 Lens Array 5050LED 60 Degree Flood Lighting Lens

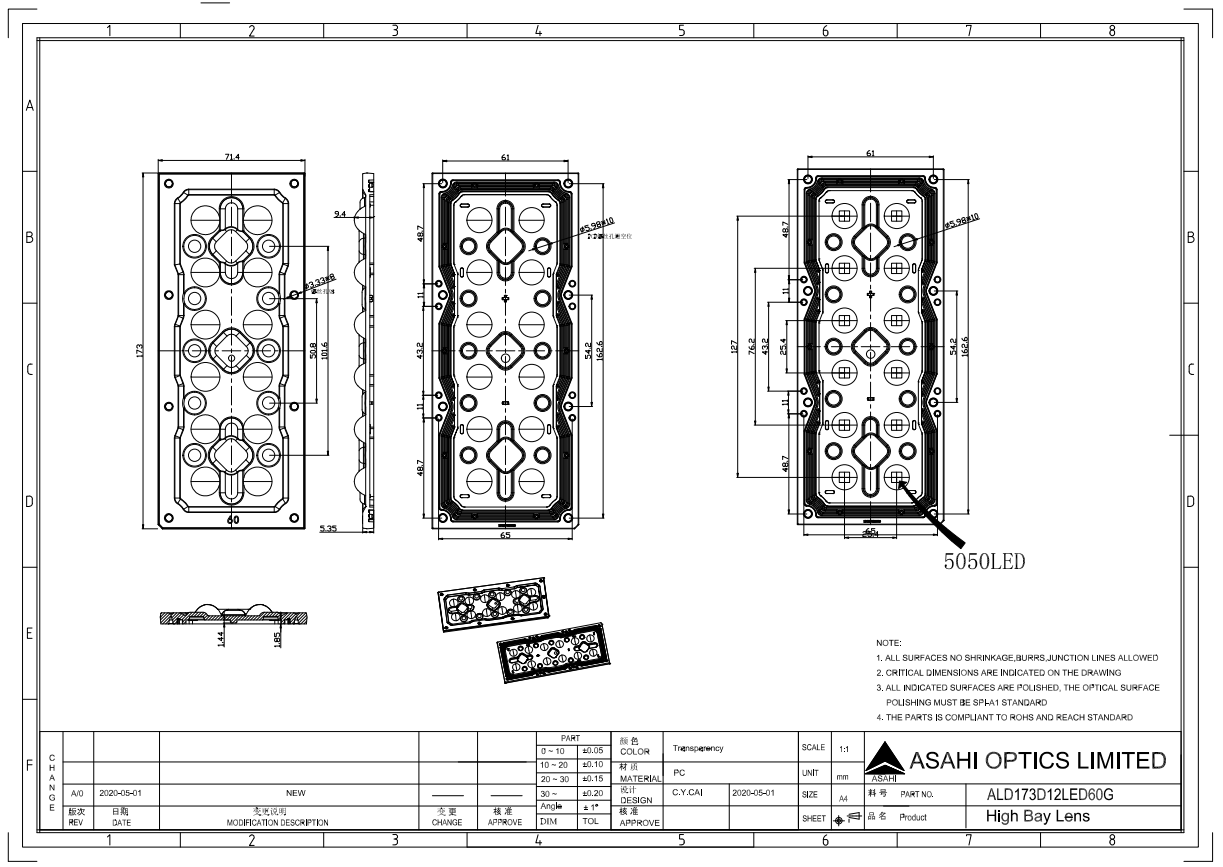

Model: ALD173D12LED60G

Diameter: 173.0mm+71.4mm

Height: 9.4mm

Angle: 60°

Material: PC-1250Z

Transmittance: >90%

LED Type: "3535""5050" LED

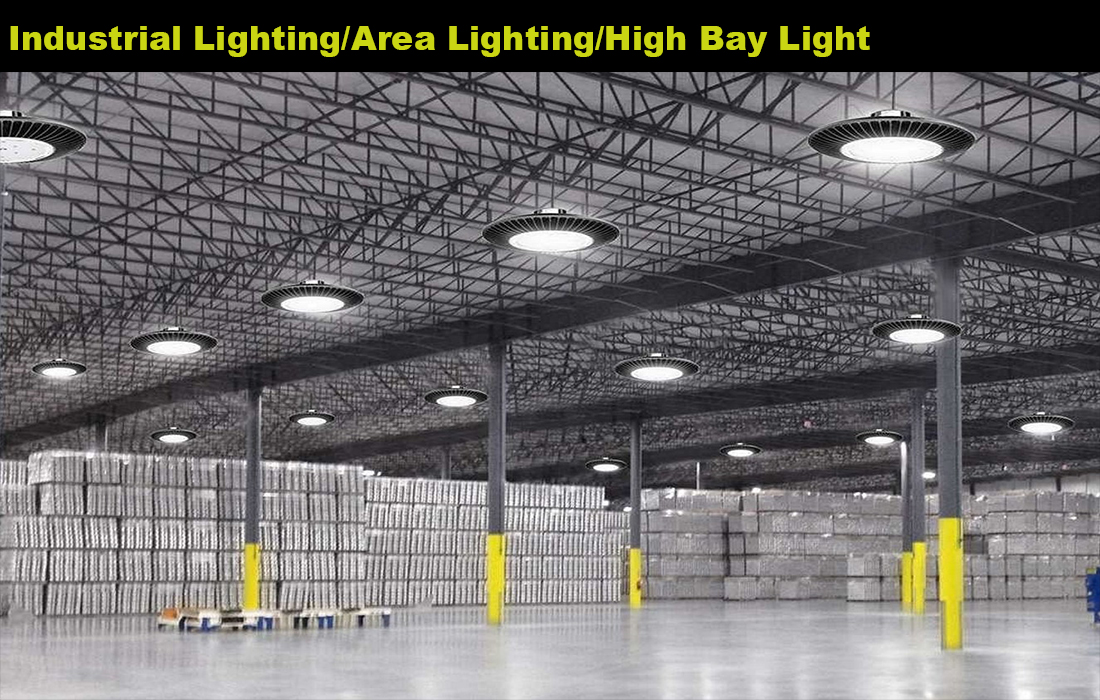

Lighting Applications: High Bay Lighting

1. 2x6 60degree high bay lighting lens designed with dome structure.

2. The design of the dome lens enables wide-angle light coverage, making it suitable for applications that require extensive illumination, such as outdoor areas and squares.

3. The dome structure contributes to achieving uniform light distribution, reducing unevenness in the illuminated area and improving lighting uniformity.

Specifications

Model:	ALD173D12LED60G
Diameter:	173*71.4mm
Height:	9.4mm
Angle:	60°
Material：	PC-1250Z
Transmittance：	>90%
LED Applications	"5050" LED
Lighting applications	High Bay Lighting

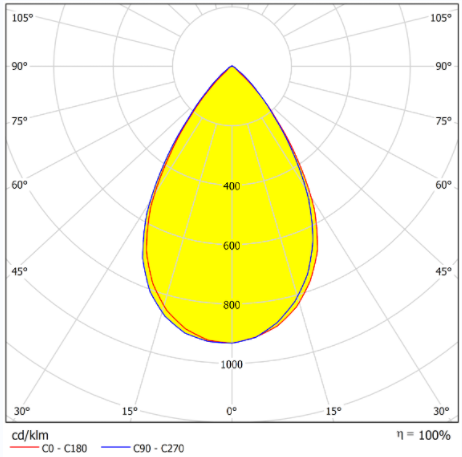

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
