Model: ASL280D30H14LED2060G
Size: 279.1x29.4(mm)
Height: 13.34mm
Angle: 20x60°
Material: PC
Transmittance: 88%
LED Type: 2835/ 3030LED
Lighting Applications: Linear Lighting
1. Specifically designed for linear luminaires, the 279.1×29.4mm elongated structure integrates 14 lens units with a 20°×60° asymmetric light distribution, producing a rectangular beam pattern extending along the luminaire body, suitable for wall washing, shelving, and aisle lighting.
2. Made of PC material with >88% transmittance, compatible with 2835/3030 LEDs. Its compact structure facilitates integration into various linear lighting systems, delivering uniform and smooth light output.
Distribution
Specifications
| Model: | ASL280D30H14LED2060G |
| Size: | 279.1x29.4(mm) |
| Height: | 13.34mm |
| Angle: | 20x60° |
| Material： | PC |
| Transmittance： | 88% |
| LED Applications | 2835/3030LED |
| Lighting applications | Linear Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The 1x14LED linear lens is designed for 2 pieces of 2835LED or 3030LED with a narrow width of 30mm size.
The 14LEDs lens complies with ZHAGA standard assembly.

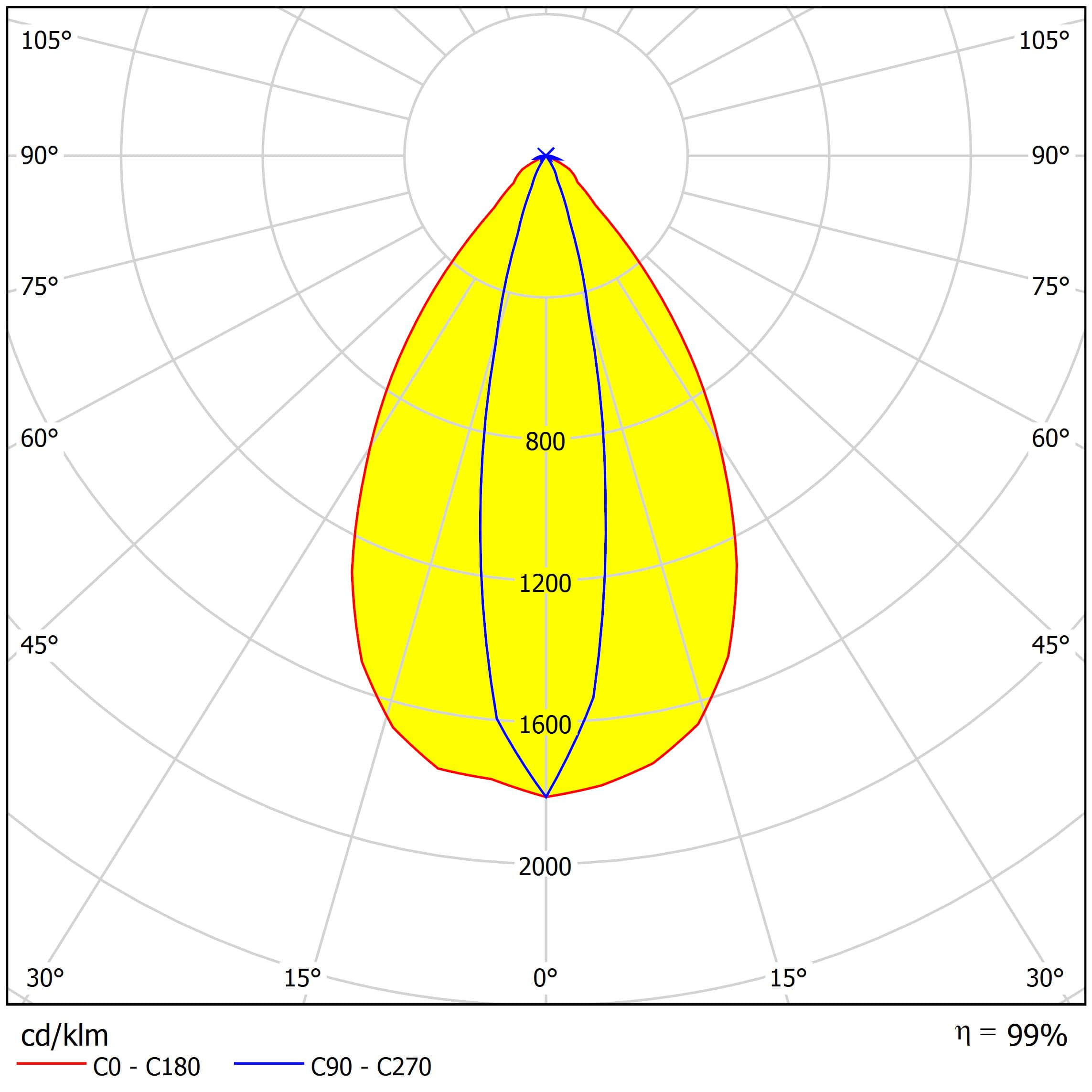

Asahi Optics ASL280D30H14LED2060G.IES

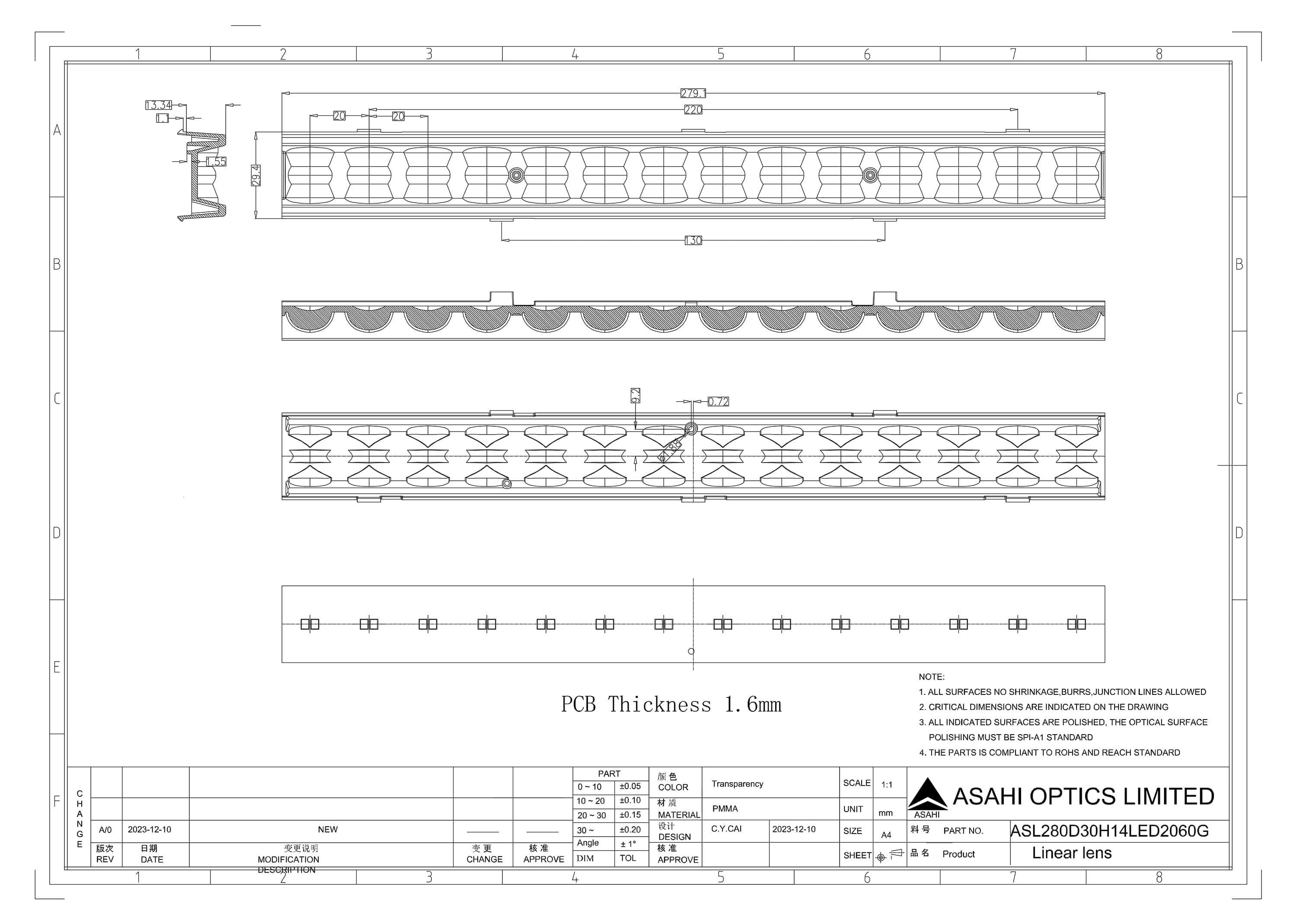

Asahi Optics ASL280D30H14LED2060G 3D Drawing.stp
