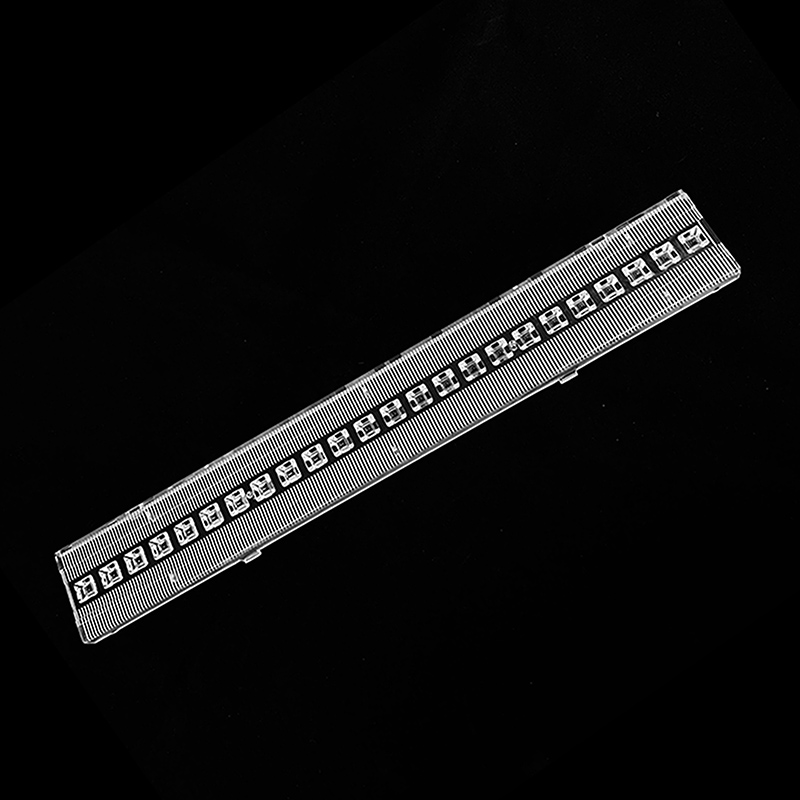

24LEDs lens for 3030LED beam 90° for High Bay, Flood light

Model: ALHB50D24LED90G

Size: 50.0mm+50.00mm

Height: 4.02mm

Angle: 90°

Material: PC-1250Z TEIJIN

Transmittance: >90%

LED Type: "3030"LED

Lighting Applications:

Specifications

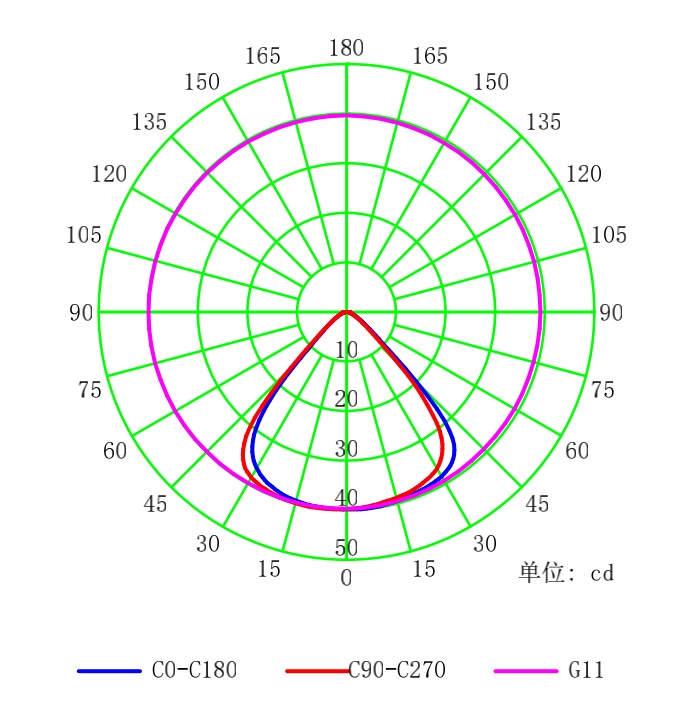

90G.1

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
