Model: ALS21D10G
Diameter: 21.58mm
Height: 11.4mm
Angle: 10°
Material: PMMA
Transmittance: >93%
LED Type: 3535LED

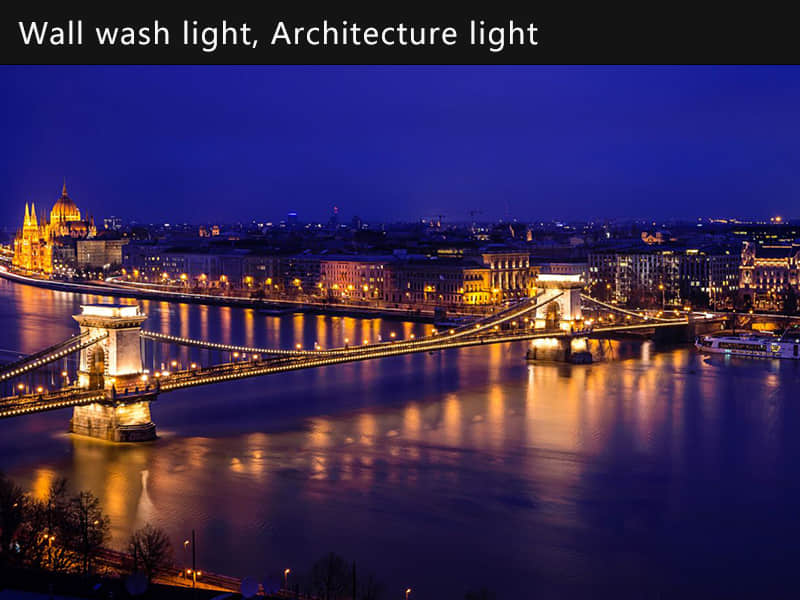

Lighting Applications: Wall wash light

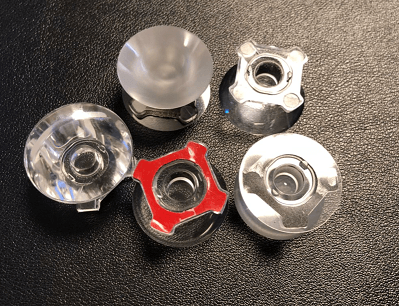

1, 21mm single lens Assembly with installation 3M tape
2, Single linear lens design with 3535LED
3, Application for window linear lighting, wall washer lighting, traffic signal lighting

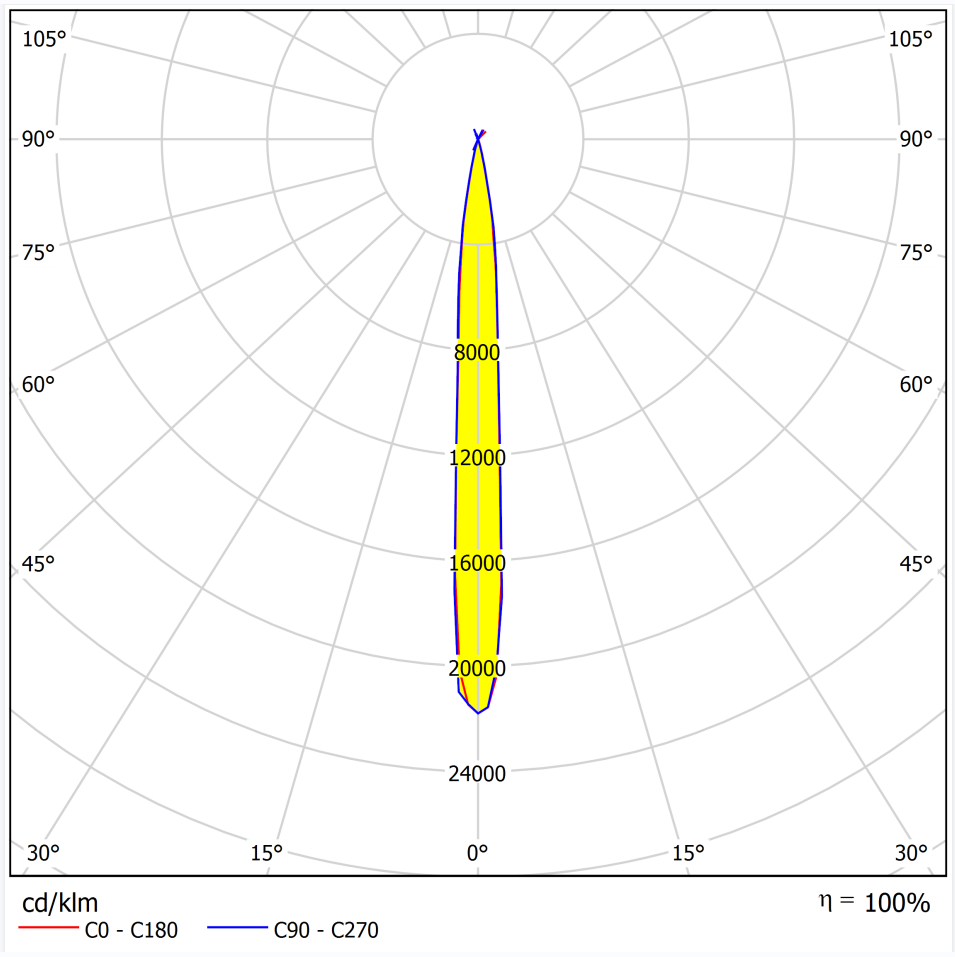

Distribution
Specifications
| Model: | ALS21D10G |
| Diameter: | 21.58mm |
| Height: | 11.4mm |
| Angle: | 10° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | 3535LED |
| Lighting applications | Wall wash light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

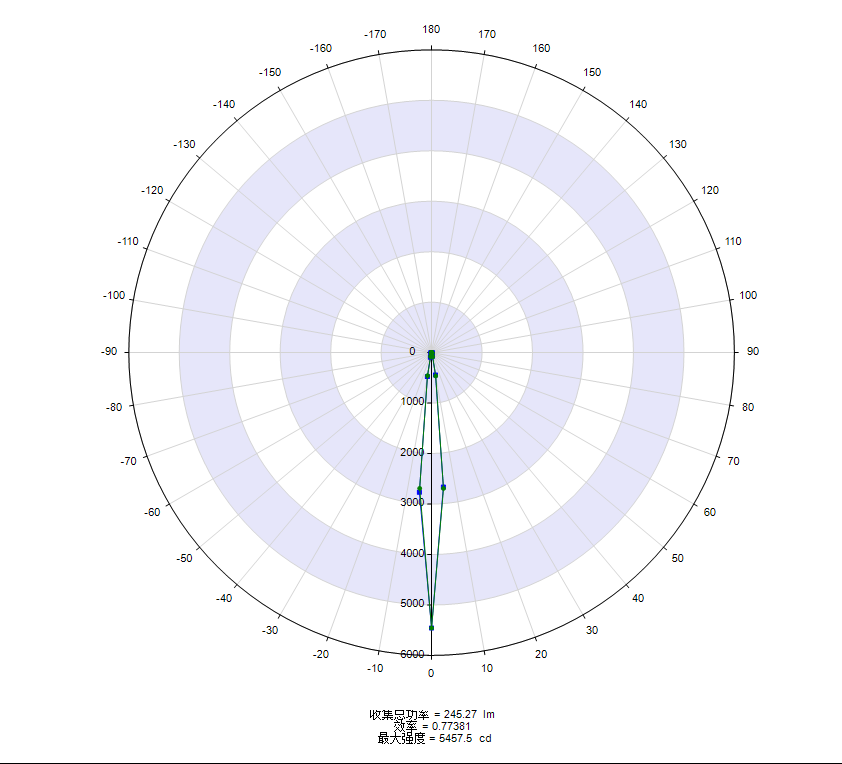

single lens narrow spot beam 8~10°, with 3M Tape for option

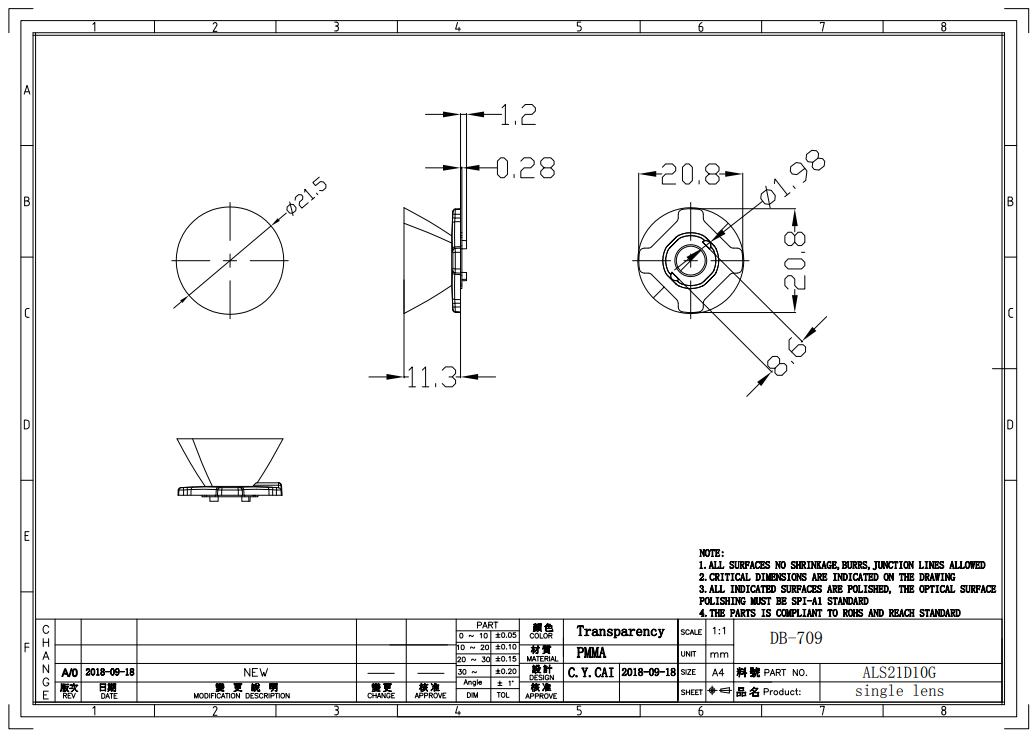

ALS21D10G lens 3D drawing. stp
ALS21D10G lens Test Report PDf file. pdf
ASAHI OPTICS ALS21D10G Drawing.pdf
