Model: AJSP309D17H25G
Size: 309mm
Height: 218mm
Angle: 25°
Material: PC
Transmittance: >90%
LED Type: 3737,3535,XPE,XPG

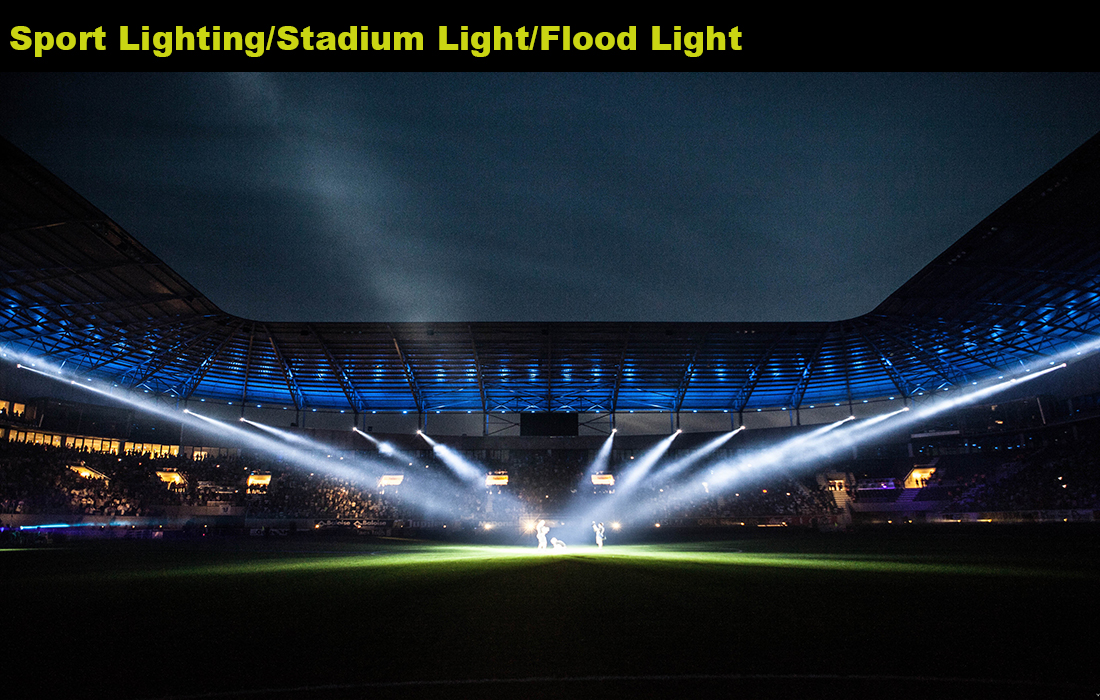

Lighting Applications: Stadium lighting
1.Narrow beam fan-shaped stadium lighting lens with 25 degree beam.
2.These lenses are often designed to illuminate specific areas of the stadium or specific targets.
3.Due to its narrow beam Angle, it is able to focus the light in a smaller area, providing a more focused, bright lighting effect. This is useful for applications that require accurate lighting, such as illuminating specific locations on a sports field, stage performances, or other occasions that require accurate lighting.
Specifications
| Model: | AJSP309D17H25G |
| Diameter: | 309mm |
| Height: | 218mm |
| Angle: | 25° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 3737,3535,XPE,XPG |
| Lighting applications | stadium lighting |
