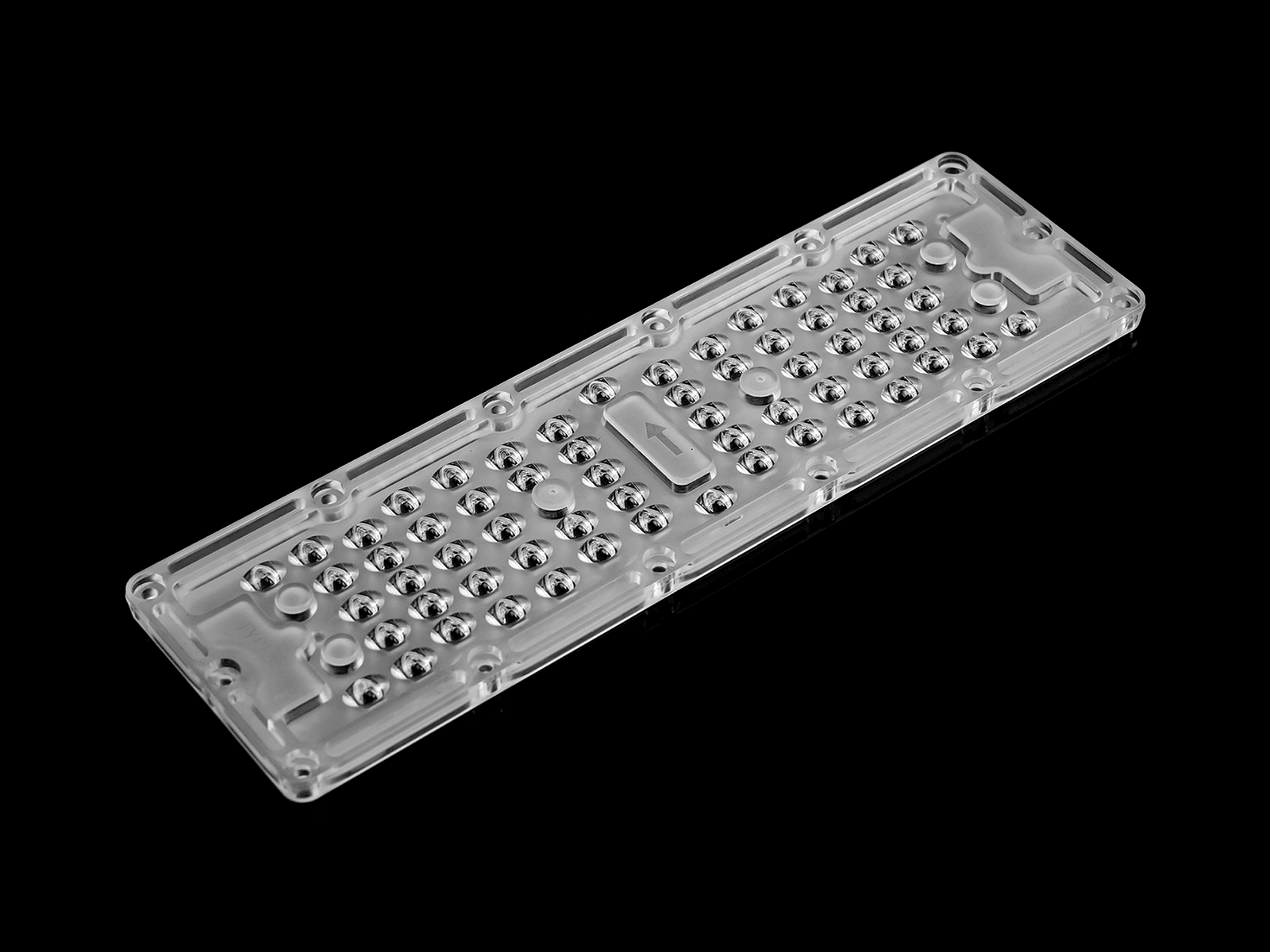

Model: ARST236D64LEDT2M
Diameter: 236mm
Height: 7.1mm
Angle: Type II Medium
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030 LED
Lighting Applications: High Bay Lighting, Area Lighting
1. The high efficiency and powerful lumen output to meet customers’ required power.
2. Type II beam angle is commonly used in streetlights to provide efficient and focused illumination on roadways.

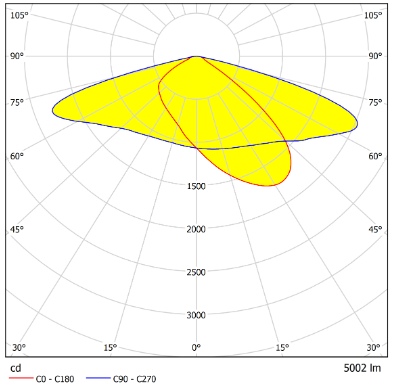

Distribution
Specifications
| Model: | ARST236D64LEDT2M |
| Diameter: | 236mm |
| Height: | 7.1mm |
| Angle: | Type II Medium |
| Material： | PC-1250Z TEIJIN |
| Transmittance： | >90% |
| LED Applications | 3030 LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARST236D64LEDT2M lens 3D drawing.STP

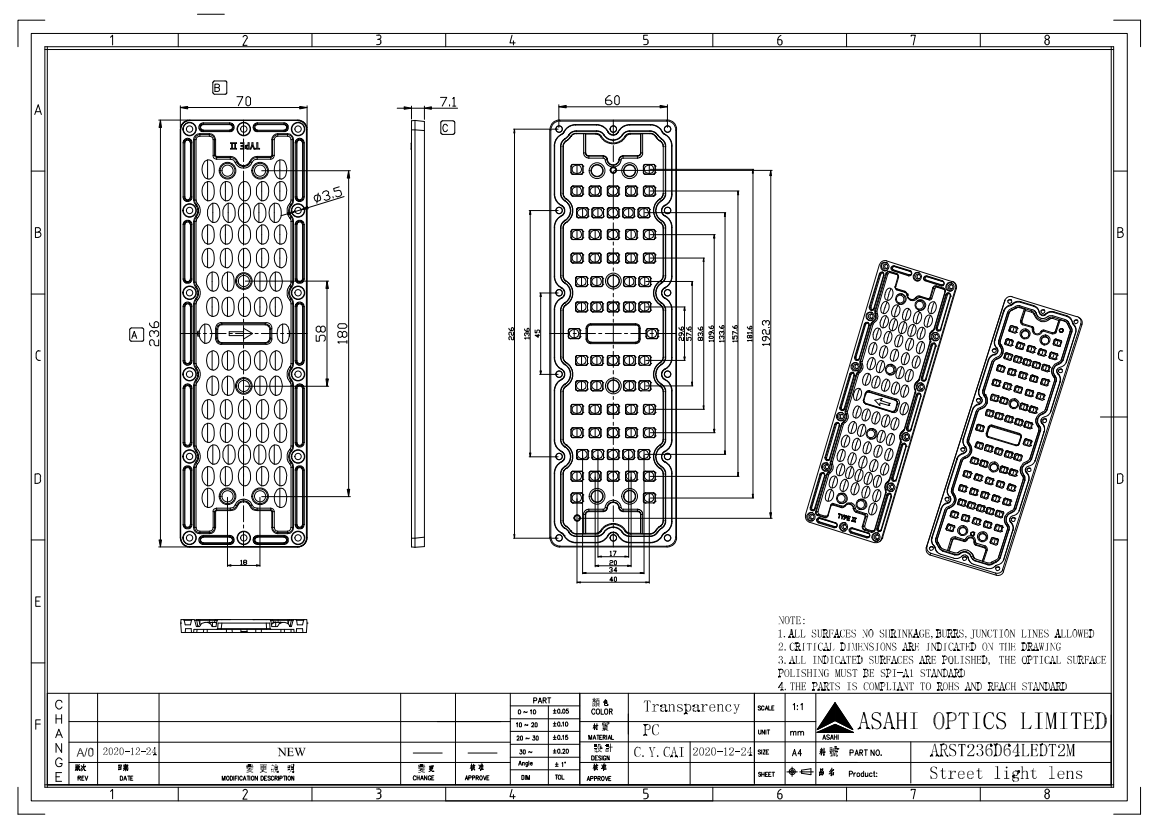

ASAHI OPTICS ARST236D64LEDT2M Drawing.dwg
