Model: ALHB50D24LEDT90
Diameter: 50x50mm
Height: 3.45mm
Angle: 90°
Material: PC
Transmittance: >93%
LED Type: 3030LED

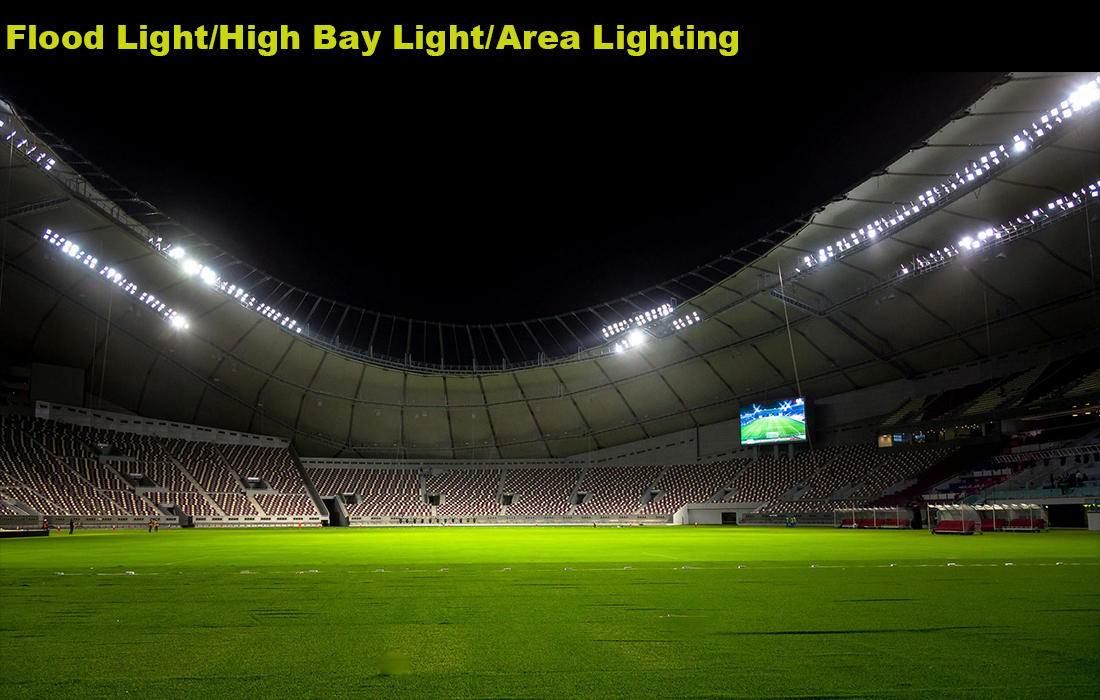

Lighting Applications:
1. 50mm 4x6 Array 24LEDs Lens 90degree for outdoor lighting.
2. It has a 90 degree beam Angle. The light has a wide scattering range in the horizontal direction, which can provide a wide lighting cover.
3. This is very useful for outdoor lighting, which can illuminate large areas.

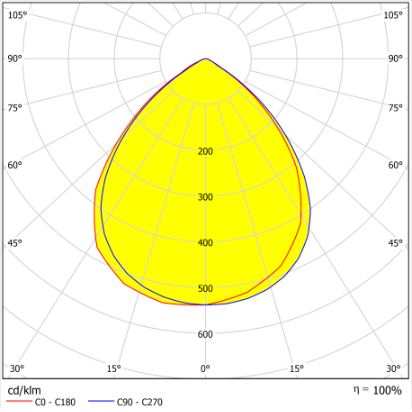

Distribution
Specifications
| Model: | ALHB50D24LEDT90 |
| Diameter: | 50x50mm |
| Height: | 3.45mm |
| Angle: | 90° |
| Material： | PC |
| Transmittance： | >93% |
| LED Applications | 3030LED |
| Lighting applications | High bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ALHB50D24LEDT90 lens 3D Drawing.stp

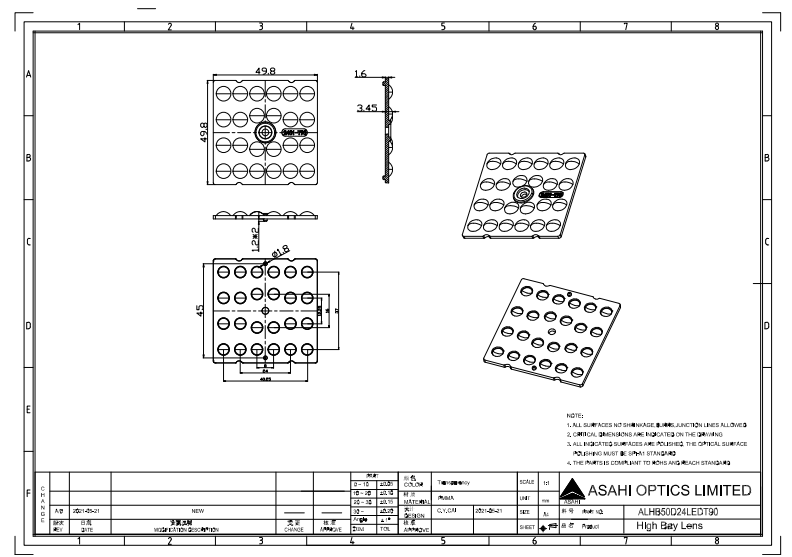

ASAHI OPTICS ALHB50D24LEDT90 Drawing.dwg
ASAHI OPTICS ALHB50D24LEDT90 Drawing.pdf
ASAHI OPTICS ALHB50D24LEDT90 lens IES.ies
ASAHI OPTICS ALST50D24LEDT90 2835LED lens IES.ies
