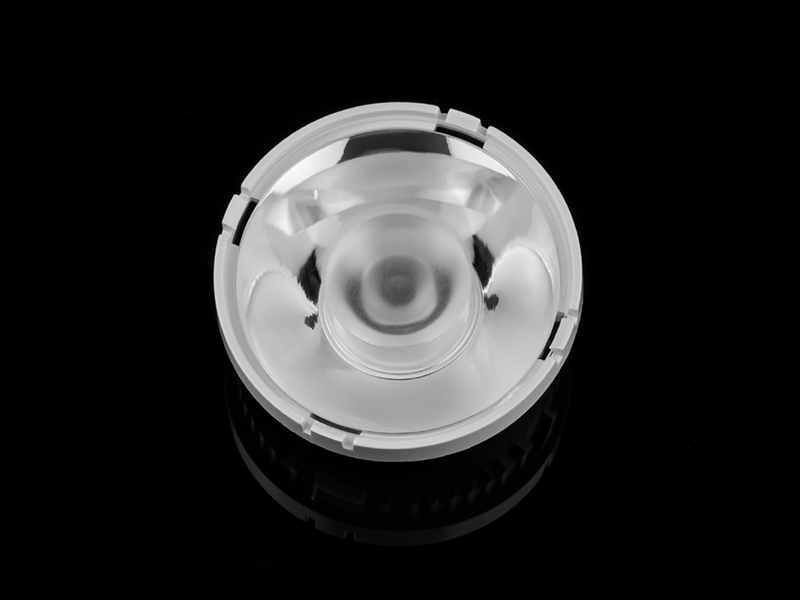

43mm 2degree lens for surgical light
43mm 2degree lens for surgical light

43mm 2degree lens for surgical light

Model: ASH43D16H2G

Diameter: 43mm

Height: 16mm

Angle: 2°

Material: PMMA+PC

Transmittance: >93%

LED Type: Cree XPE-2

Lighting Applications: surgical light

Specifications

Model: ASH43D16H2G
Diameter: 43mm
Height: 16mm
Angle: 2°
Material： PMMA+PC
Transmittance： >93%
LED Applications Cree XPE-2
Lighting applications surgical light

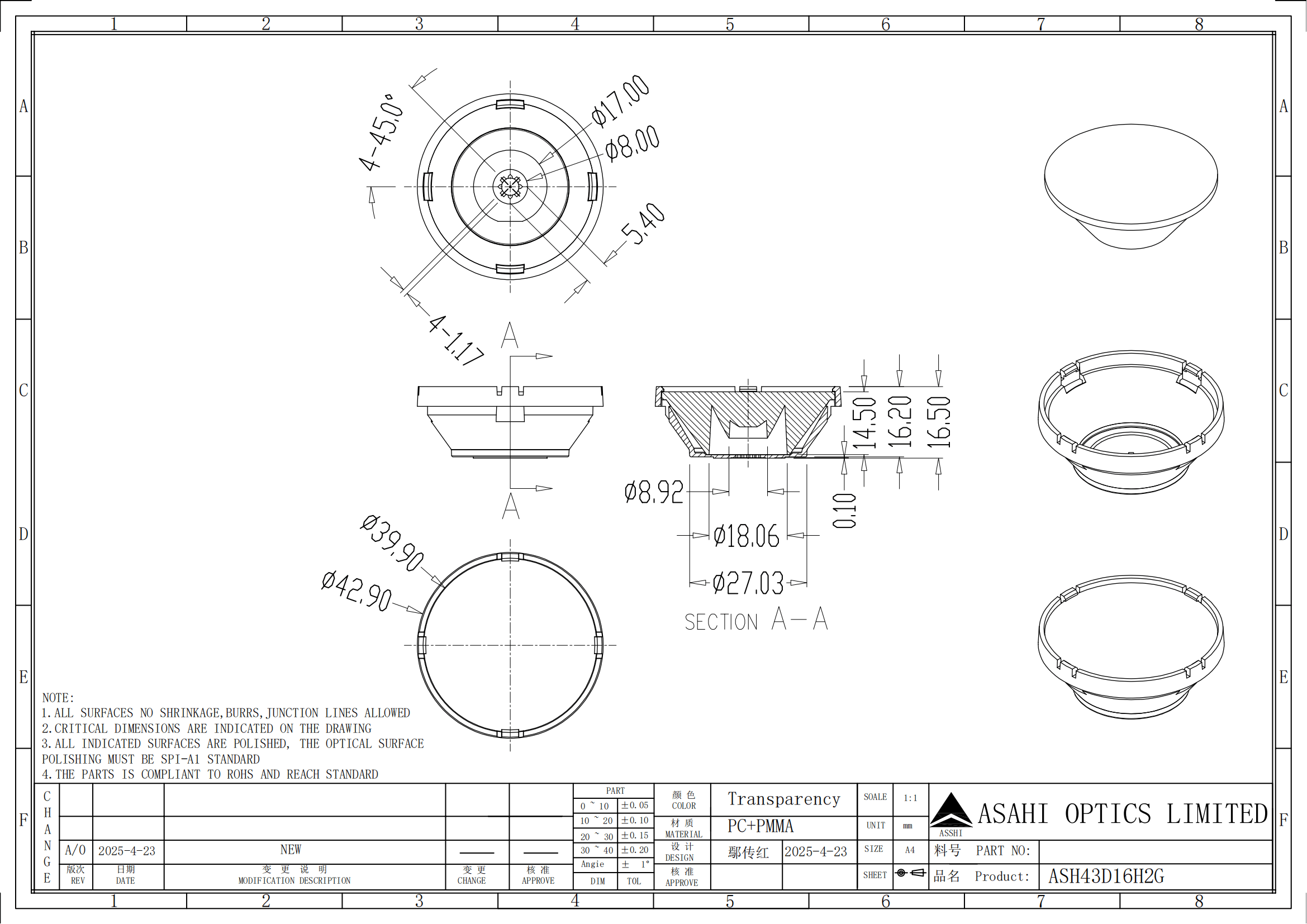

ASH43D16H2G distributionASH43D16H2G Drawingsurgical light

Related Products

Indoor Supermarket Lighting Optics With Asymmetric Beams

Name: Indoor Supermarket Lighting Optics With Asymmetric Beams

Model: ASL120D40H3LED80G

Diameter: 120mm

Beam Angle: 80°

LED Type: 3030''5630''5050
50mm Aluminum Led Reflector For Spotlight Lamp

Name: 50mm Aluminum Led Reflector For Spotlight Lamp

Model: AR5027T

Diameter: 50mm, 18.7mm

Beam Angle: 15°, 24°, 36°

LED Type: COB LED

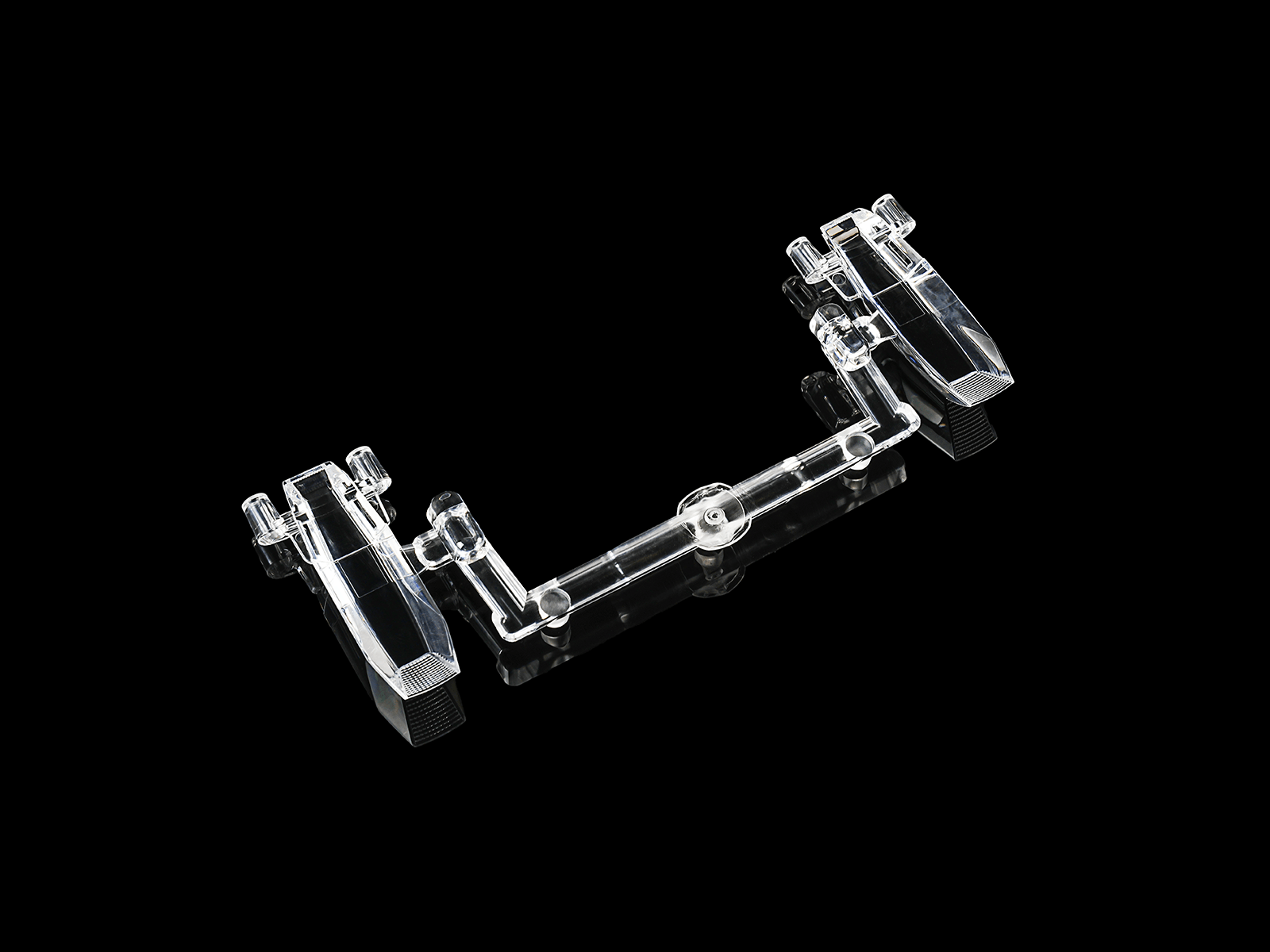

Automotive Turn Signal Light Lens
