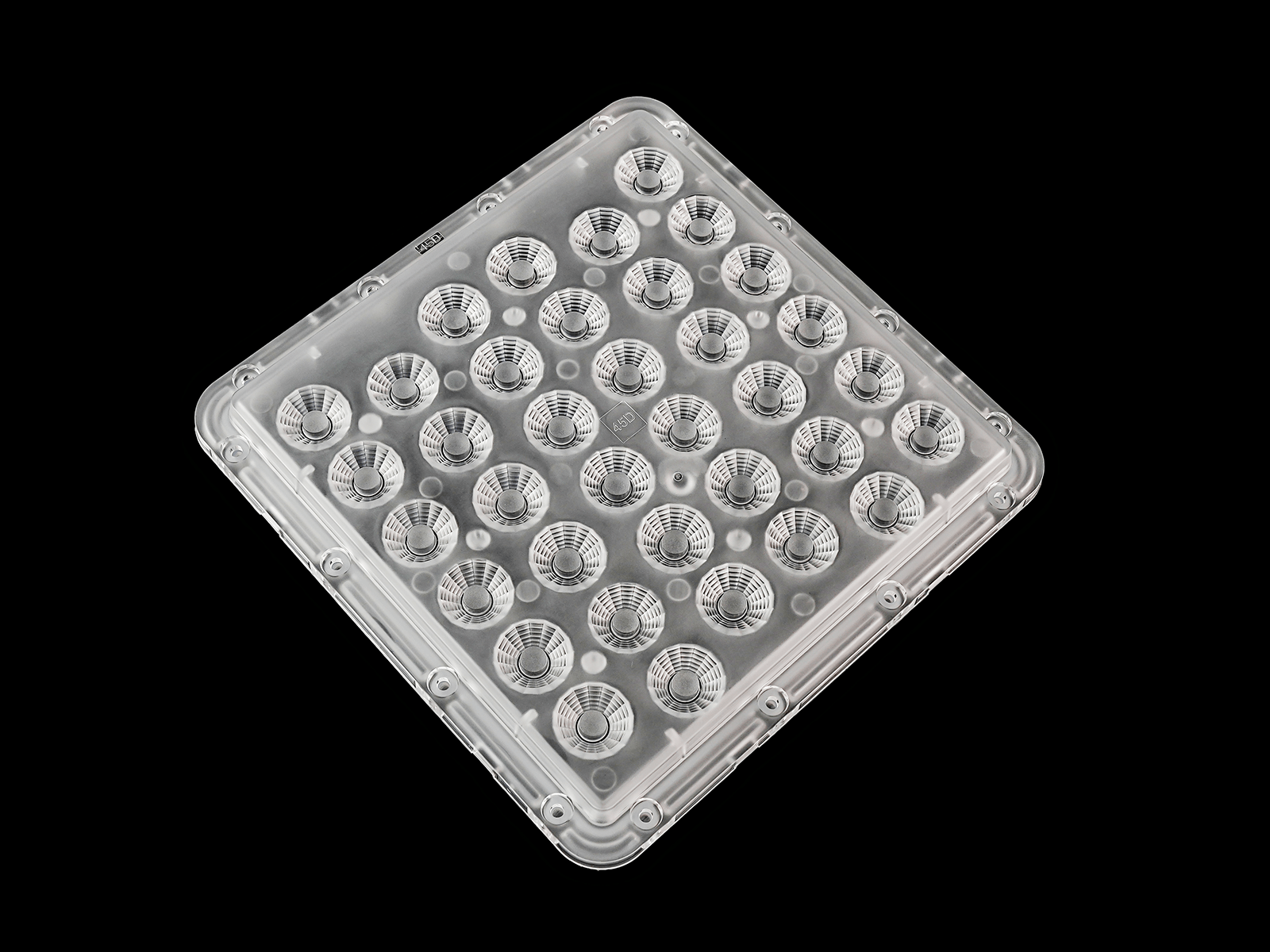

Model: AJHB180D36LED45G
Diameter: 180mm
Height: 13.7mm
Angle: 45°
Material: PC
Transmittance: >90%
LED Type: 3535LED

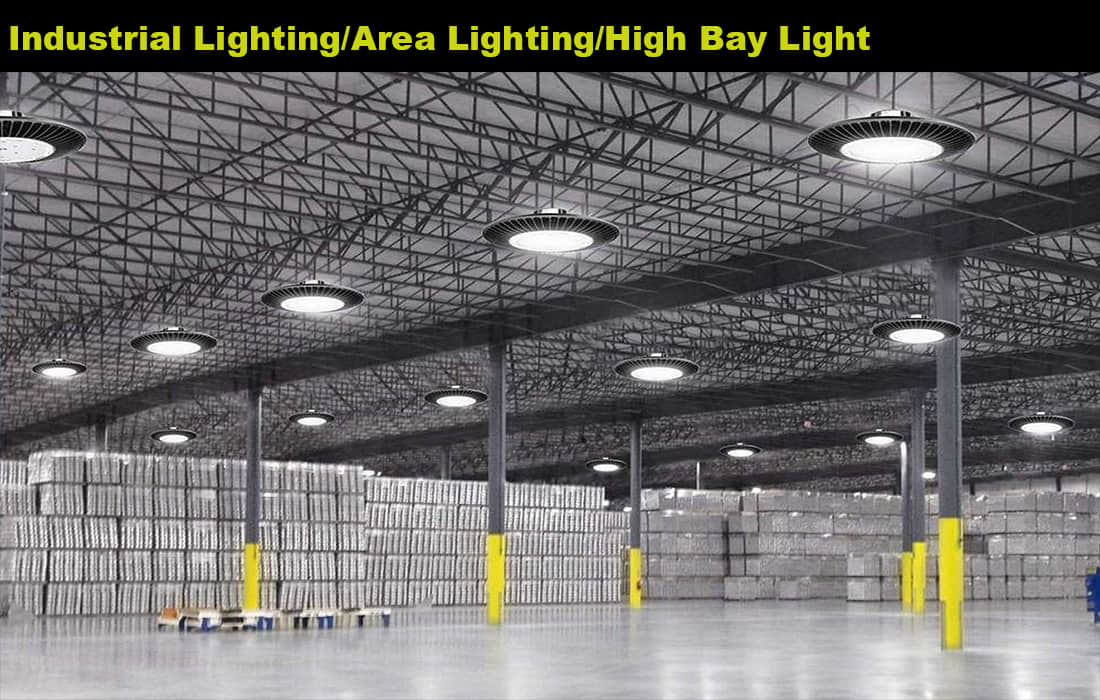

Lighting Applications: High Bay lighting
1. This high power design can provide a strong lighting effect to meet the needs of large areas of lighting.
2. The high-power lens modules are designed for 3535LED size with IP66 gasket waterproof and it can be reached to IK10 grade.

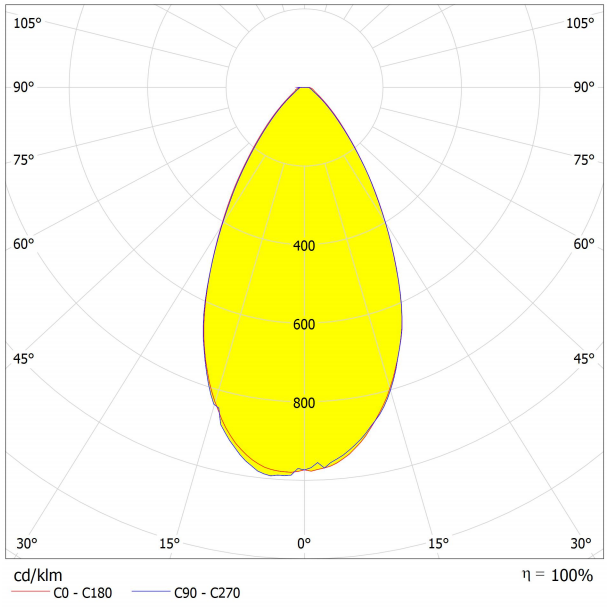

Distribution
Specifications
| Model: | AJHB180D36LED45G |
| Diameter: | 180mm |
| Height: | 13.7mm |
| Angle: | 45° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 3535LED |
| Lighting applications | High Bay lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. This high power design can provide a strong lighting effect to meet the needs of large areas of lighting.
2. The high-power lens modules are designed for 3535LED size with IP66 gasket waterproof and it can be reached to IK10 grade.
