Model: AHCOB3522D24G
Diameter: 35mm
Height: 22.5mm
Angle: 24°
Material: PMMA
Transmittance: 93%
LED Type: COB LED

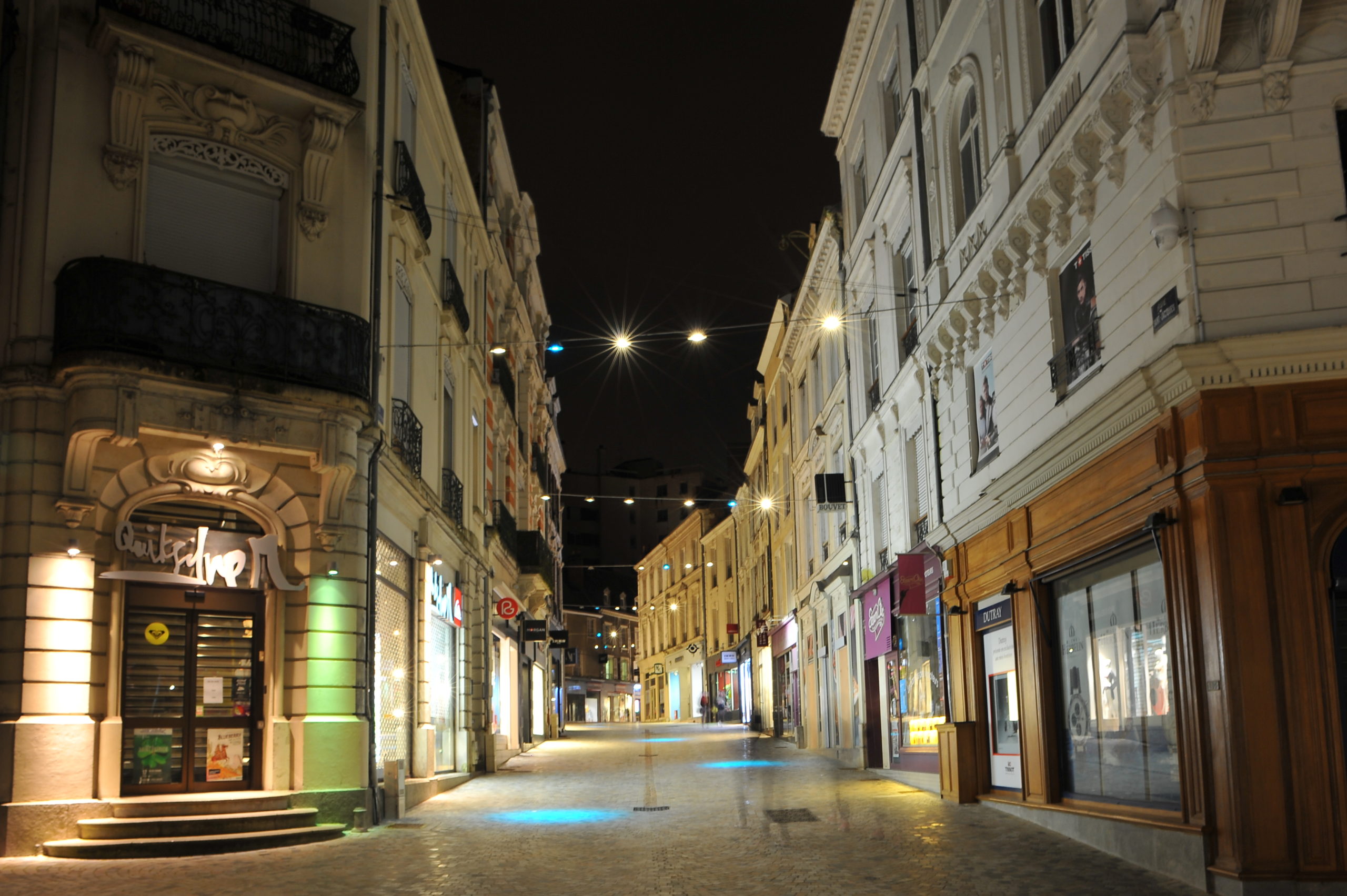

Lighting Applications: PAR lighting,Spot Light,Down Light
1, COB lens is an optical component specifically designed to control and shape the light output of a COB LED.
2, COB lenses are engineered to maximize the efficiency of the COB LED. They are designed to minimize light loss and ensure that a greater percentage of the emitted light is effectively directed toward the target area. This helps to improve energy efficiency and reduce wasted light.
3, COB lenses are designed to maximize the efficiency of the COB LED by minimizing light loss and optimizing light distribution. They are engineered to ensure a high percentage of the emitted light is directed toward the desired area, resulting in improved energy efficiency and reduced wasted light.

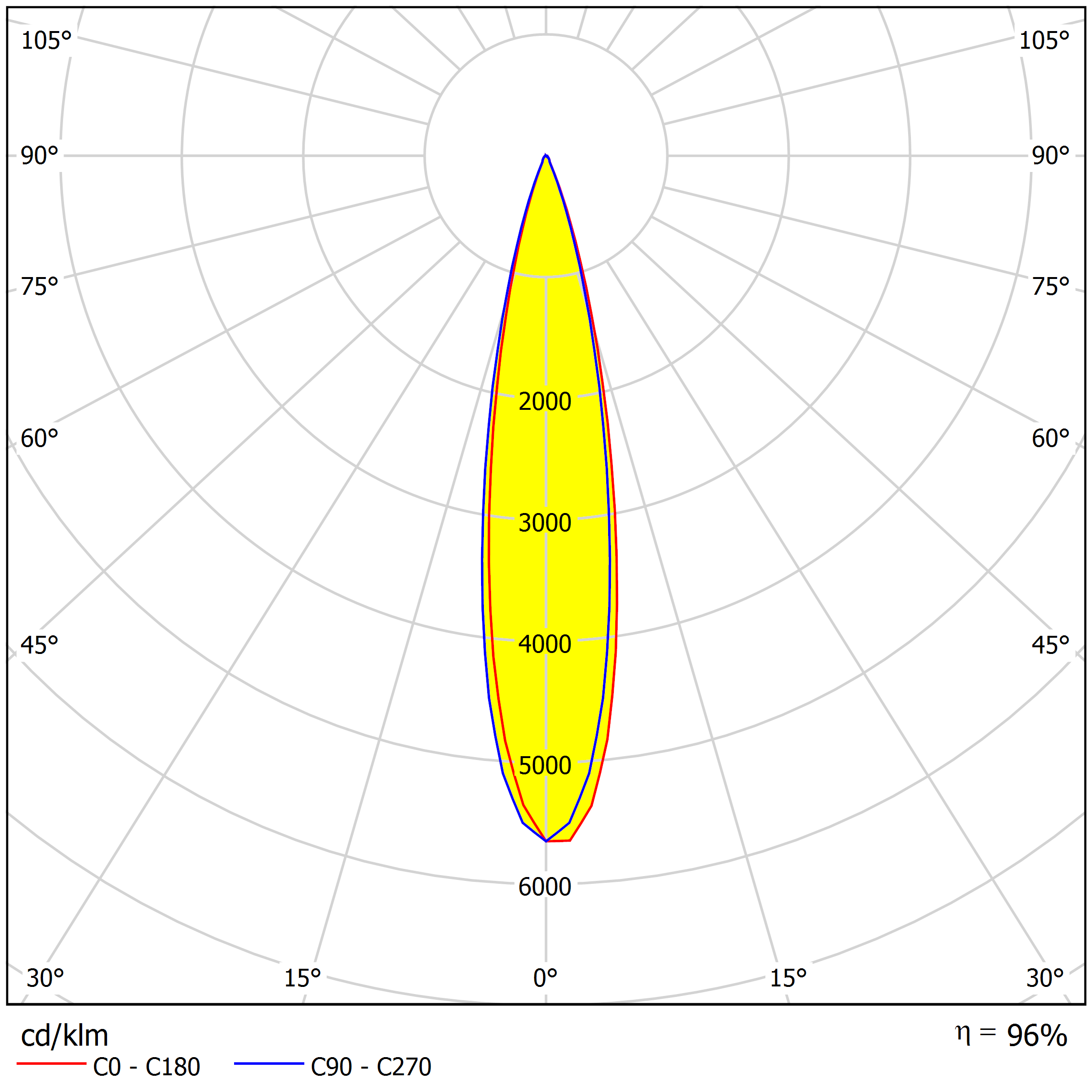

Distribution
Specifications
| Model: | AHCOB3522D24G |
| Diameter: | 35mm |
| Height: | 22.5mm |
| Angle: | 24° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LED |
| Lighting applications | PAR lighting,Spot Light,Down Light |
LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
