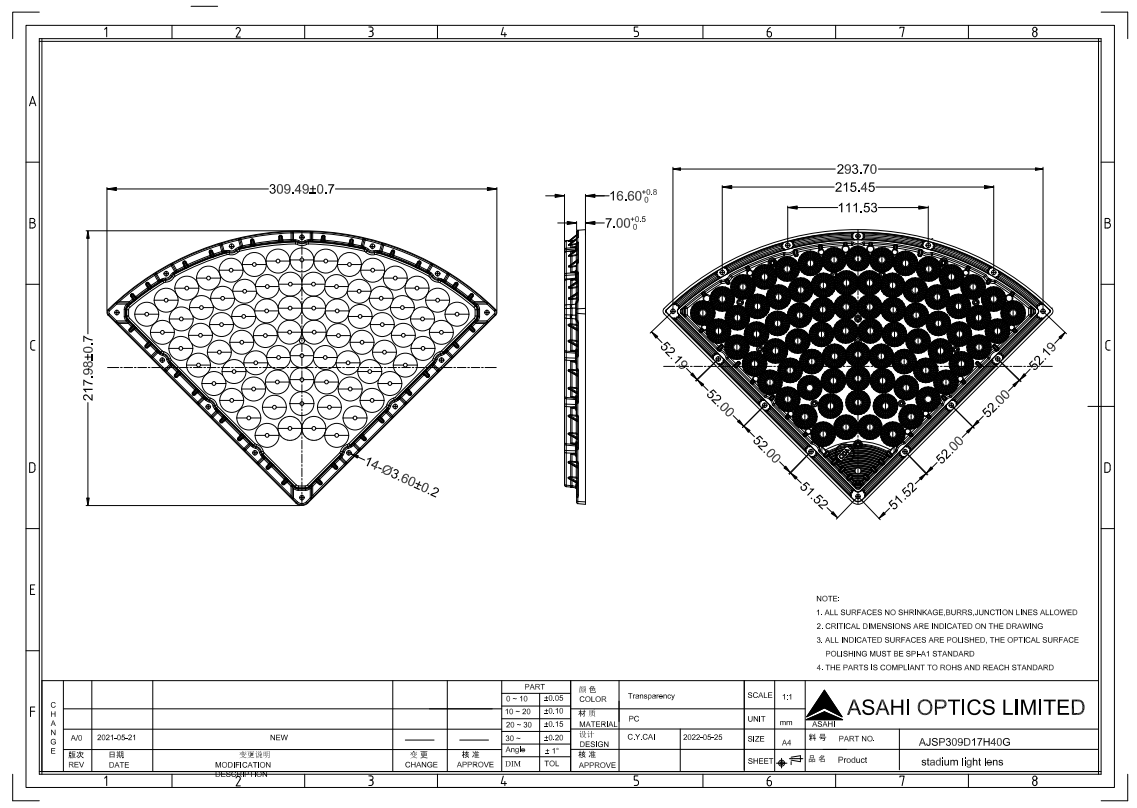

309mm diameter 76in1 40degree efficient light effect stadium light lens

Model: AJSP309D17H40G

Size: 309mm

Height: 17mm

Angle: 40°

Material: PC

Transmittance: >88%

LED Type: 3737,3535,XPE,XPG

Lighting Applications: Stadium lighting

1.Narrow beam fan-shaped stadium lighting lens with a 9 /15/25 /40degree beam.

2.These lenses are often designed to illuminate specific areas of the stadium or specific targets.

3.Beam control: The 40-degree lens can better control the scattering angle of the beam. The design of the lens makes the light more concentrated and presents a narrower beam angle. This helps focus the light on the target area, providing a more focused and even lighting effect. The control of light beams can also reduce light pollution and prevent light from scattering into the surrounding environment.

4.Lighting efficiency: The angle of the lens affects lighting efficiency. Smaller angles improve lighting efficiency because the light is more concentrated and less energy is lost. The 40-degree lens can focus more light in the required lighting area, providing more efficient lighting effects.

5.This is useful for applications that require accurate lighting, such as illuminating specific locations on a sports field, stage performances, or other occasions that require accurate lighting.

Specifications

Model:	AJSP309D17H40G
Diameter:	309mm
Height:	17mm
Angle:	40°
Material：	PC
Transmittance：	>88%
LED Applications	3737,3535,XPE,XPG
Lighting applications	stadium lighting
