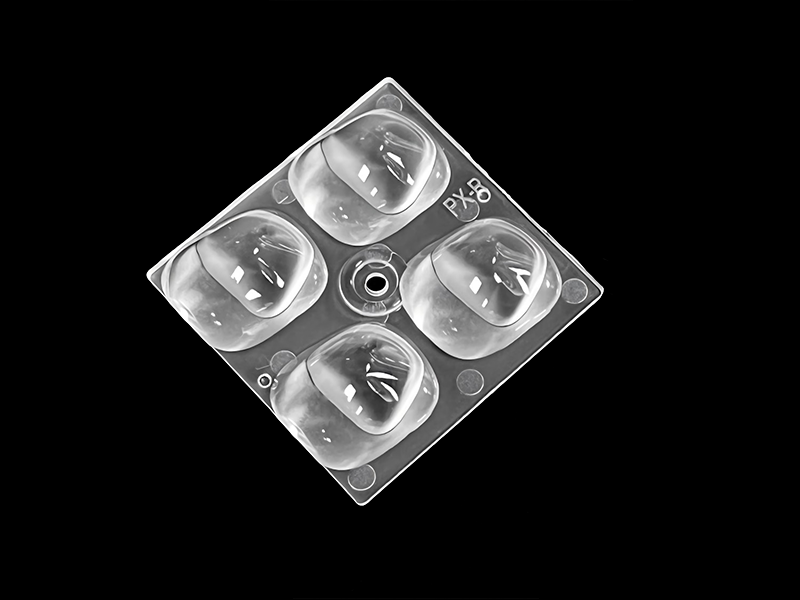

Model: ARX50D4LED5050PX-R
Diameter: 50x50mm
Height: 9.76mm
Angle: Asymmetric
Material: PMMA
Transmittance: ＞93%
LED Type: 5050LED

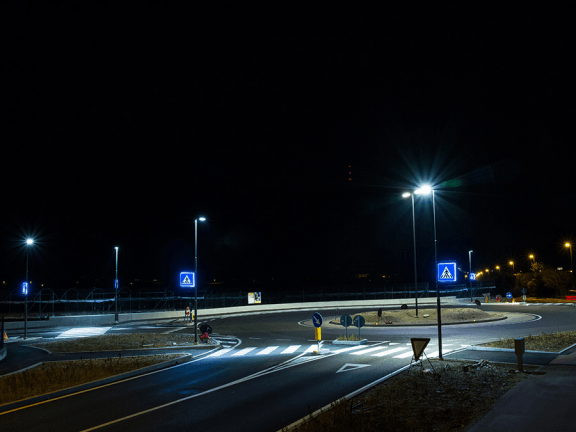

Lighting Applications: Street Lighting
1. Optimized Light Distribution for Safe Walkways.
2. The 2x2 lens is specifically designed for pedestrian walkway lighting, providing uniform and glare-free illumination.
3. Its advanced optical design ensures even light distribution, enhancing visibility and safety for pedestrians during nighttime.

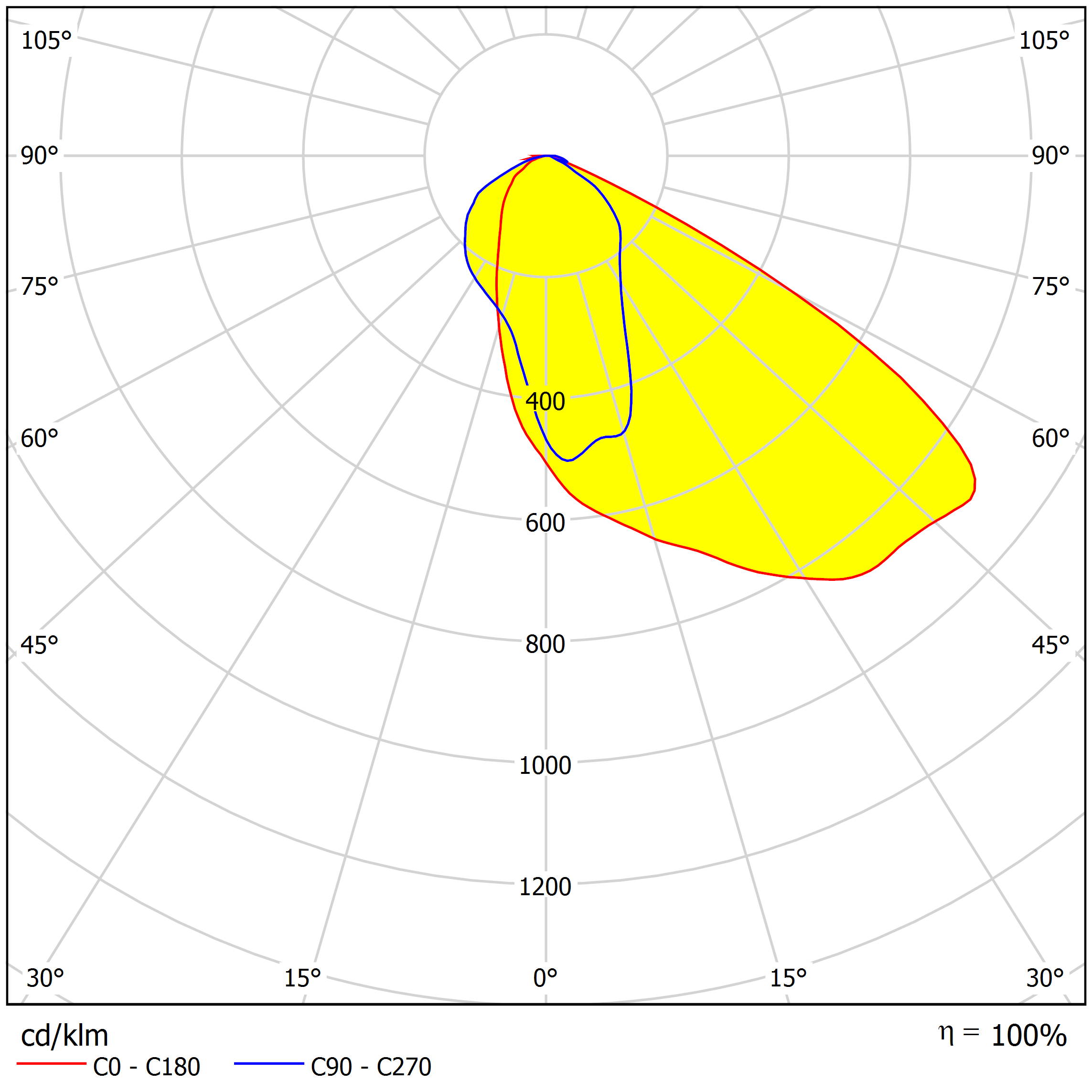

Distribution
Specifications
| Model: | ARX50D4LED5050PX-R |
| Diameter: | 50x50mm |
| Height: | 9.76mm |
| Angle: | Asymmetric |
| Material： | PMMA |
| Transmittance： | ＞93% |
| LED Type | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. Optimized Light Distribution for Safe Walkways.
2. The 2x2 lens is specifically designed for pedestrian walkway lighting, providing uniform and glare-free illumination.
3. Its advanced optical design ensures even light distribution, enhancing visibility and safety for pedestrians during nighttime.
ASAHI OPTICS ARX50D4LED5050PX-R 3D Drawing.stp

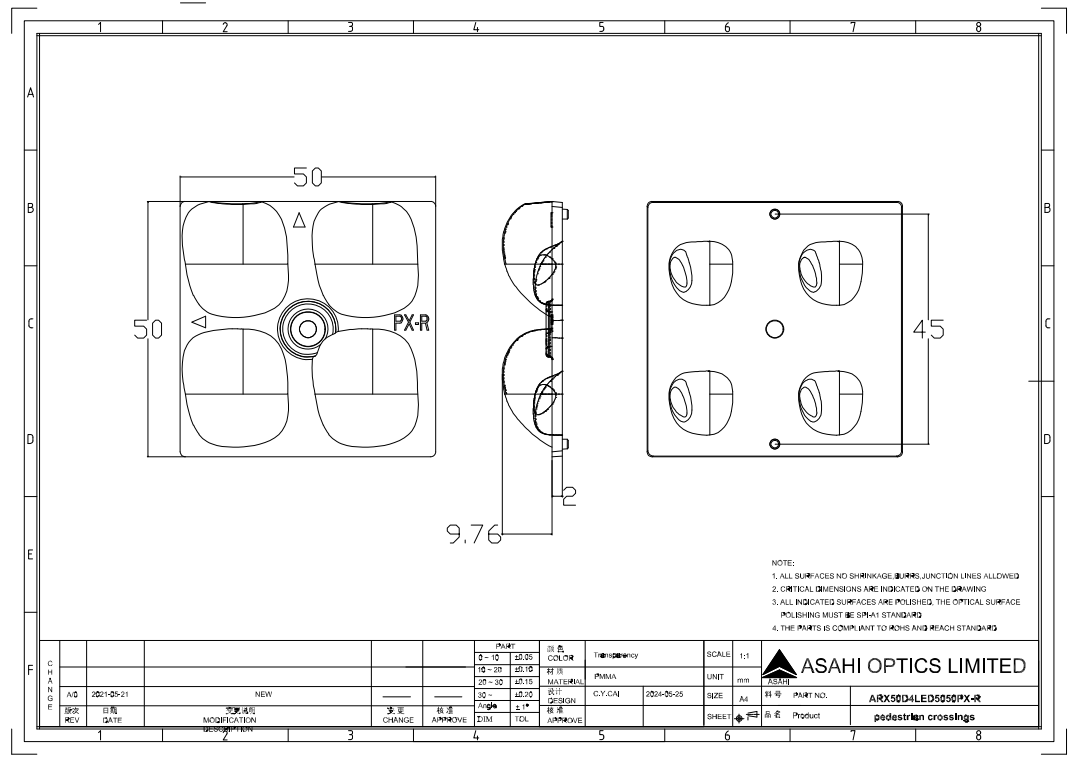

ASAHI OPTICS ARX50D4LED5050PX-R 2D Drawing.dwg
ASAHI OPTICS ARX50D4LED5050PX-R 2D Drawing.pdf
ASAHI OPTICS ARX50D4LED5050PX-R.ies
