Model: ALHB50D4LED5050T120G
Diameter: 50x50mm
Height: 8.5mm
Angle: 120°
Material: PC
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: High Bay Lighting
1. The 2x2 lens design, coupled with the 120° wide beam angle.
2. 120° wide-angle lens disperses light widely, making it suitable for applications that require coverage over a broad area, such as outdoor lighting or large indoor spaces.
3. Designed for optimal light transmission, maximizing brightness and ensuring efficient use of energy.

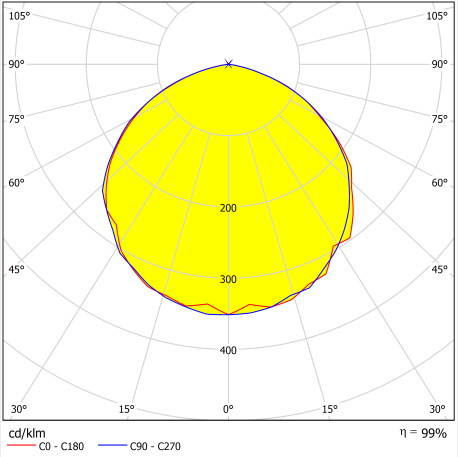

Distribution
Specifications
| Model: | ALHB50D4LED5050T120G |
| Diameter: | 50x50mm |
| Height: | 8.5mm |
| Angle: | 120 ° |
| Material： | PC |
| Transmittance： | >90% |
| LED Type | 5050LED |
| Lighting applications | High Bay Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x2 lens design, coupled with the 120° wide beam angle.
2. 120° wide-angle lens disperses light widely, making it suitable for applications that require coverage over a broad area, such as outdoor lighting or large indoor spaces.
3. Designed for optimal light transmission, maximizing brightness and ensuring efficient use of energy.

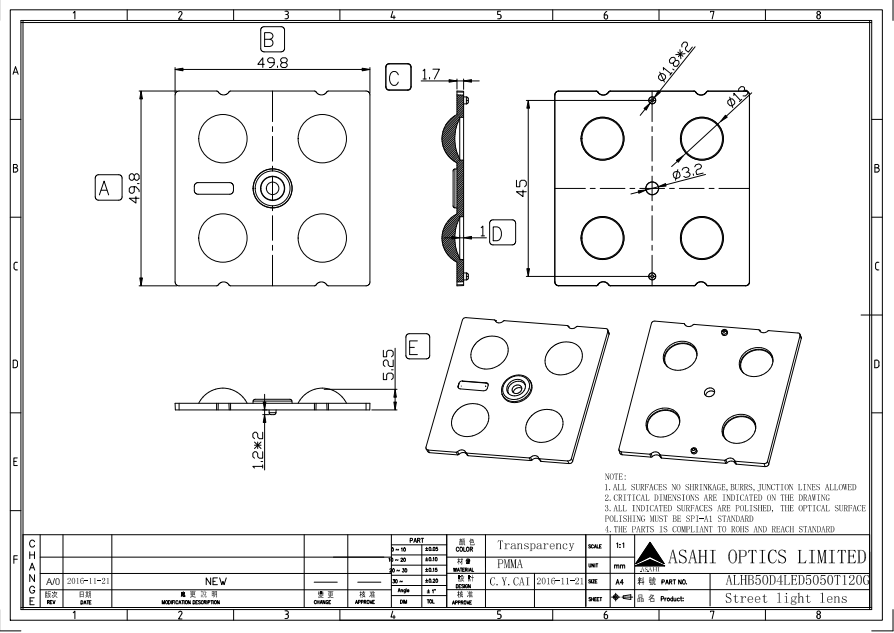

ASAHI OPTICS ALHB50D4LED5050T120G Drawing.dwg
ASAHI OPTICS ALHB50D4LED5050T120G Drawing.pdf
